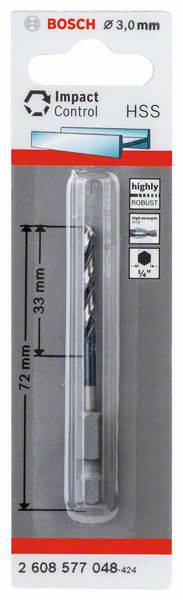

Bosch Accessories 2608577048 2608577048 HSS-G Metal twist drill bit 3 mm Total length 72 mm DIN 338 Hex shank 1 pc(s)
EAN:
Part number:
Item no:
Product type
Metal twist drill bit
Drill hole Ø
3 mm
Content
1 pc(s)
Material
HSS-G
Material suitability
Metal
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 3.18
10
7% = € 0.23
€ 2.95
25
10% = € 0.33
€ 2.85
Volume discounts vary depending on the seller
You save € 0.00
Total (€ 3.18 / piece)
€ 3.18
plus VAT.
Technical specifications
- Product type
Metal twist drill bit
- DIN standard
DIN 338
- Drill hole Ø
3 mm
- Drill hole Ø tolerance limit
h 8
- Tip angle
135°
- Content
1 pc(s)
- Material
HSS-G
- Material suitability
Metal
- Tool holder
Hex shank
- Shank Ø
6.35 mm
- Working length
33 mm
- Total length
72 mm
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2254402 Bosch Accessories 2608577048 2608577048 HSS-G Metal twist drill bit 3 mm Total length 72 mm DIN 338 Hex shank 1 pc(s)
Description
The HSS twist drill bit Impact Control enables best drilling work in metal, especially with impact drills. The extremely resistant body is very robust. The twist drill is made of solid metal precision milled and ground, the spiral groove is oxide coated. The surface properties allow smooth drilling with less wear. It is suitable for alloyed and unalloyed steel, cast steel, cast iron, sintered iron, non-ferrous metals, metal sheet and plastic. This drill is compatible with hexagonal shaft systems (1/4-inch) and can be used universally with drill screwdrivers, impact screwdrivers and drill stands. Diameter (D) mm: 3,00, working length (L1) mm: 33, total length (L2) mm: 72, shaft diameter (d) mm: 6,35
