Buy Bosch Accessories 2608589295 HSS Metal twist drill bit set 7-piece cut DIN 338 Cylinder shank 1 Set

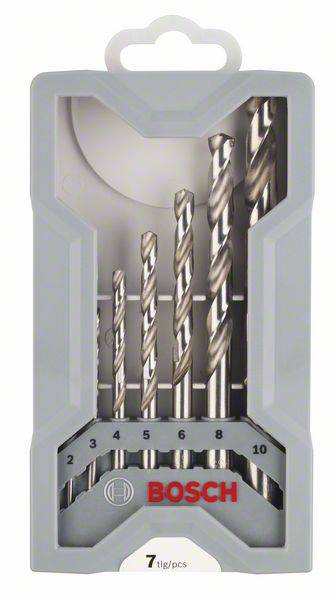

'Bosch Drill Bit Set, 7-piece, Spiral Metal Drill Bits in Various Sizes in Grey Case, Suitable for Metal Drilling.'

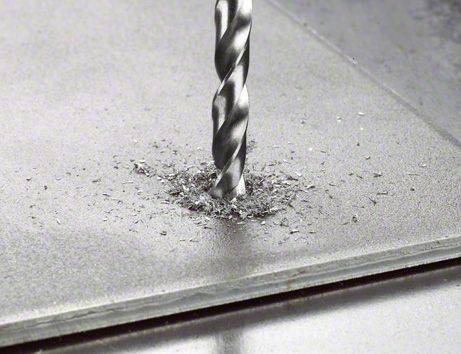

A drill pierces a metal sheet, surrounded by metal shavings. The focus is on drilling into the hard material.

'Outstanding Durability in Metal'. A silver drill bit. 'High Speed', 'Cross Ground', 'Up to 2x Long Life'.

The figure shows a set of Metabo HSS Drill Bits in ascending size from 2.0 mm to 10.0 mm diameter with corresponding lengths.

1/5

Product type

Metal twist drill bit set

Content

1 Set

Material

HSS

Material suitability

Metal

Tool holder

Cylinder shank

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Product type: Metal twist drill bit set

DIN standard: DIN 338

Drill hole Ø tolerance limit: h 8

Tip angle: 135°

Content: 1 Set

Material: HSS

Material properties: cut

Material suitability: Metal

Tool holder: Cylinder shank

Drill hole diameter: 1.0 – 10.0 mm

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 1644735 Bosch Accessories 2608589295 HSS Metal twist drill bit set 7-piece cut DIN 338 Cylinder shank 1 Set

Description

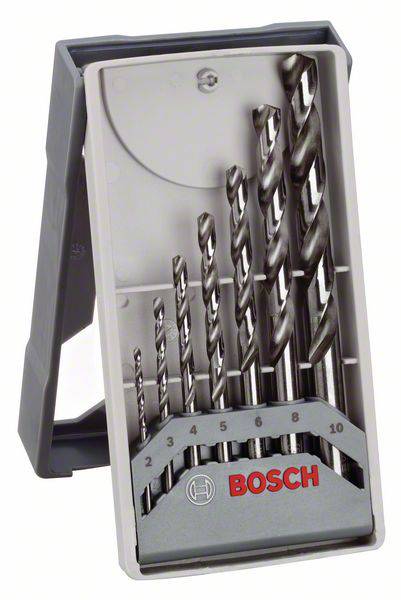

Metal drill bit set HSS-G, Mini-X-Line, 7 piece. DIN 338, 135 degrees. Diameter: 2 / 3 / 4 / 5 / 6 / 8 / 10 mm, working length: 24 / 33 / 43 / 52 / 57 / 75 / 87 mm, overall length: 49 / 61 / 75 / 86 / 93 / 117 / 133 mm, dimensions: 141 x 80 x 20 mm set Suitable for alloyed and unalloyed steel up to a tensile strength of 900 N/mm², cast steel, gray cast iron, sintered iron, malleable cast iron, non-ferrous metals, hard plastics. Precision-ground HSS-G Steel drill bits allows up to 40 percent faster drilling progress, or up to 50 percent lower feed force than standard ground HSS drill bits with cone shaped section. Self-centering cross-grinding drill bit, makes the vorkornen or pre-drilling up to 10 mm in diameter. superfluous.
