Buy Bosch Accessories 2608597519 2608597519 HSS Step drill bit Total length 70.5 mm Triangular shank 1 pc(s)

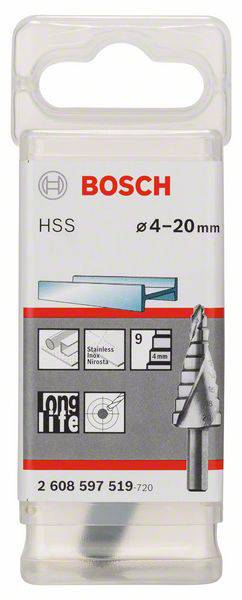

A Bosch HSS step drill packaging, size Ø 4-20 mm, suitable for stainless steel, shows a drill bit and application details.

Close-up of a spiral step drill bit drilling into a piece of wood. Wood shavings are scattered around the drilled hole.

1/3

Product type

Step drill bit

Content

1 pc(s)

Material

HSS

Material suitability

Metal

Plastic

Tool holder

Triangular shank

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Step drill bit HSS, 4 - 20 mm, 8 mm, 70.5 mm, 9 steps

4 - 20 mm, 8.0 mm, 70.5 mm

Technical specifications

Product type: Step drill bit

Content: 1 pc(s)

Material: HSS

Material suitability: Metal
Plastic

Tool holder: Triangular shank

Shank Ø: 8 mm

Total length: 70.5 mm

Weight: 0.0720

Drill features: Spiral groove

Height: 40.0000 mm

Width: 160.0000 mm

Drill hole diameter: 4 - 20 mm

Shank diameter: 8 mm

UKCA: not relevant

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 495895 Bosch Accessories 2608597519 2608597519 HSS Step drill bit Total length 70.5 mm Triangular shank 1 pc(s)

Description

Suitable for almost all thin materials, such as Non-ferrous metals, steel, plastic or stainless steel. Without Predrilling, burr-free cut into thin sheets. For deburring for round holes, drilling of several diameters with a drill, drill existing holes. Groove for longer life, less vibrations and faster drilling progress. Diameter marking in two spirals. 3-Flat Shank to prevent slipping in the drill chuck. Available in 2 designs HSS = 100% life. HSS-TiN = 125% life. HSS-AlTiN = 150% life (no cooling necessary). 9 stages of Ø 4-6 -8-10 -12-14 -16-18 -20 mm. 4 - 20 mm, 8.0 mm, 70.5 mm.
