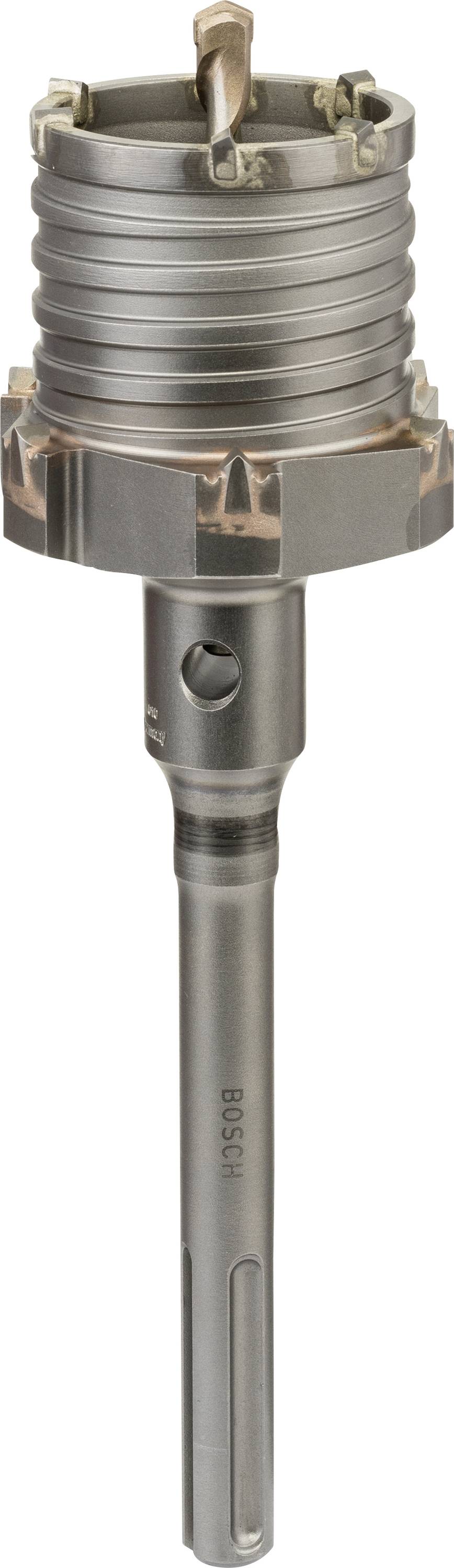

Bosch Accessories Bosch Power Tools 2608580516 Hollow drill bit 72 mm carbide-tipped 1 pc(s)
EAN:
Part number:
Item no:
Product type
Hollow drill bit
Drill hole Ø
72 mm
Material
Carbide metal
Material suitability
Concrete
Working length
283 mm
Highlights & Details
SDS Max-9 drill crowns
- Ideal cutting of deep holes for the installation of switch boxes
- The SDS MAX-9 hollow drill is suitable for Ideal for cutting deep holes in the installation of switch boxes
- Made of highly robust carbide with fine grain, which ensures optimum wear resistance while drilling
- The number of asymmetric carbide teeth increases for fast working with low noise with the diameter
- The long shaft in a double spiral U-shape for the transportation of drill dust and perforated drilling
Technical specifications

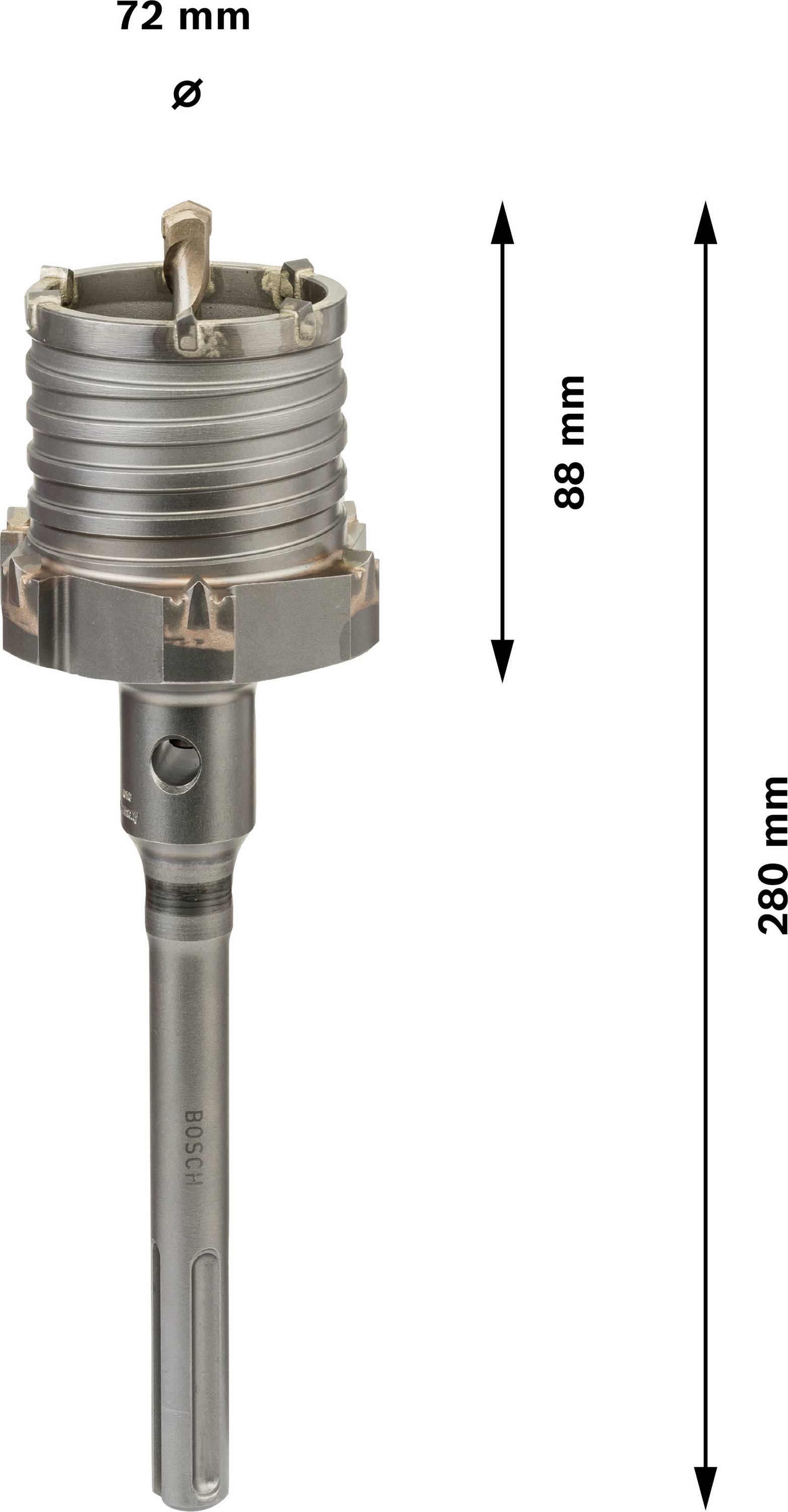

- Diameter mm:72; 88
- Drill bit depth (L1) mm: 87
- Cutting edges, quantity: 12
- Product type
Hollow drill bit
- Drill hole Ø
72 mm
- Material
Carbide metal
- Material properties
carbide-tipped
- Material suitability
Concrete
- Working length
283 mm
- Tool holder
SDS-Max
- Drill features
Spiral groove
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2998476 Bosch Accessories Bosch Power Tools 2608580516 Hollow drill bit 72 mm carbide-tipped 1 pc(s)
Description
For switch boxes - The SDS MAX-9 hollow drill is Ideal suitable for cutting deep holes in the installation of switch boxes. It consists of highly robust carbide with a fine grain, which ensures optimum wear resistance during drilling. In addition, the number of asymmetric carbide teeth on the drill is adjusted to its diameter, making it the right choice for fast work progress with low noise operation. Its twin-spiral U-shaped shaft is well suited for drilling powder removal and breakthrough drilling, while the one-piece design ensures optimum power transfer from the machine. The drill is intended for use in concrete, masonry and lime sandstone. It is compatible with SDS Max drills. The product is also available in two parts. Suitable for all hammer drills SDS max.
This text is machine translated.
This text is machine translated.
System requirements
- SDS max.
