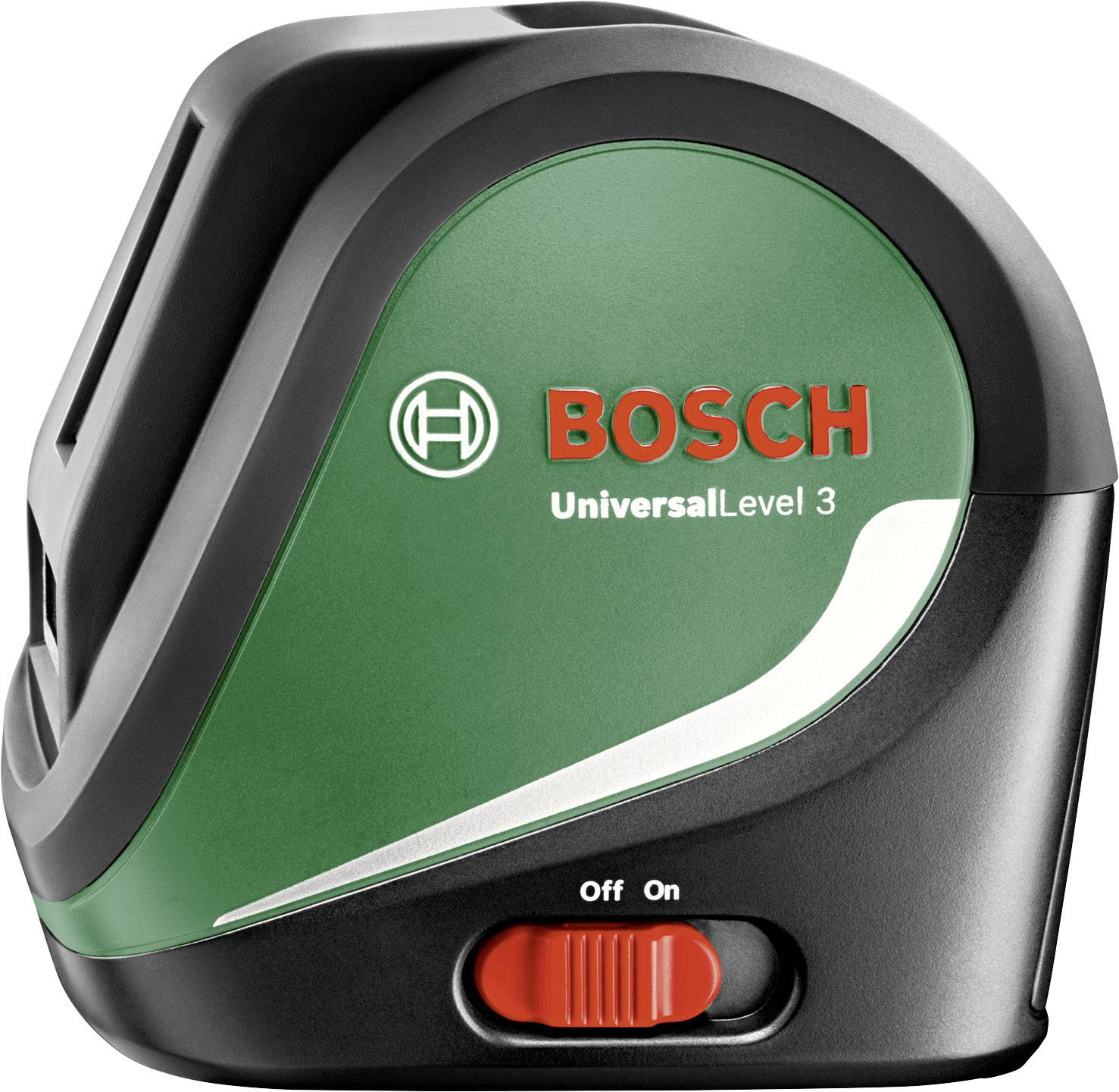

Buy Bosch Home and Garden UniversalLevel 3 Set Cross line laser Self-levelling, Incl. tripod Range (max.): 10 m

Bosch Home and Garden UniversalLevel 3 Set Cross line laser Self-levelling, Incl. tripod Range (max.): 10 m-0

Bosch Home and Garden UniversalLevel 3 Set Cross line laser Self-levelling, Incl. tripod Range (max.): 10 m-1

Bosch Home and Garden UniversalLevel 3 Set Cross line laser Self-levelling, Incl. tripod Range (max.): 10 m-2

Bosch Home and Garden UniversalLevel 3 Set Cross line laser Self-levelling, Incl. tripod Range (max.): 10 m-3

Bosch Home and Garden UniversalLevel 3 Set Cross line laser Self-levelling, Incl. tripod Range (max.): 10 m-4

Bosch Home and Garden UniversalLevel 3 Set Cross line laser Self-levelling, Incl. tripod Range (max.): 10 m-5

1/6

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Total (€ 130.24 / piece)

€ 130.24

plus VAT.

Report legal concerns

Cross line laser universal level 3 set

Highlights & Details

Range up to 10 m
3 different laser functions can be selected
tilt function
laser cross with additional vertical line at an angle of 90°

Technical specifications

Opening angle: 120 °
Self levelling time: 4s

Product type: Cross line laser

Features: Self-levelling
Incl. tripod

Range (max.): 10 m

Accuracy (+/-): 1 mm/m

Auto-adjustment range (+/-): 4°

Laser category: 2

Visible beam length: 650 nm

Operating time (battery-powered): 5 hrs.

Power supply (details): 3 x 1.5 V LR6 (AA)

Tripod thread mount: 1/4"

Length: 131 mm

Width: 75 mm

Height: 126 mm

Dim: (L x W x H) 131 x 75 x 126 mm

Weight: 540 g

: Manufacturer's standards (no certificate)

Type: UniversalLevel 3 Set

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 1622189 Bosch Home and Garden UniversalLevel 3 Set Cross line laser Self-levelling, Incl. tripod Range (max.): 10 m

User & Safety Instructions

User & Safety Instructions 1622189 Bosch Home and Garden UniversalLevel 3 Set Cross line laser Self-levelling, Incl. tripod Range (max.): 10 m

Description

Universal Level 3 cross line-laser with 3 different modes: Selbstniverllierendes Cross, self-levelling of cross with additional line and plumb and tilt function. All-round talent thanks to its laser cross, as well as a second vertical laser line both for horizontal and vertical as well as for squaring alignment. The second vertical laser line forms a 90° Refernz the first line. Self-levelling, lines and points are within the shortest possible time independently from and are 100% straight
