Bosch Professional GCM 8 SDE Chop and mitre saw 216 mm 30 mm 1600 W
EAN:
Part number:
Item no:
Highlights & Details
Chop and miter saw GCM 8 SDE
- 1600 W
- Cutting depth (max.) (45°/ 90° ): 48 mm/70 mm
Technical specifications
- Cutting capacity at 0°, height 70.0 mm;Cutting capacity at 0°, width 312.0 mm;Cutting capacity 0° 70 x 312 mm;Cutting capacity 45° miter 70 x 214 mm;Cutting capacity 45° inclination 48 x 312 mm;Miter adjustment 52 ° L / 60 ° R;Inclination setting 47 ° L / 47 ° R.
- Product type
Chop and mitre saw
- Saw blade diameter
216 mm
- Bore Ø
30 mm
1600 W
- Operating voltage
230 V
240 V
- Cutting depth (max.) (45°)
48 mm
- Cutting depth (max.) (90°)
70 mm

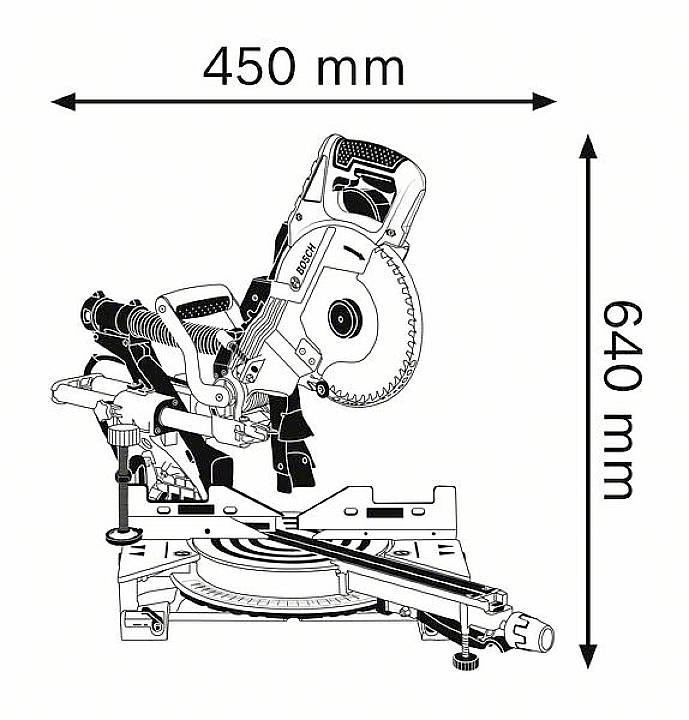

- Dim
(L x W x H) 910 x 450 x 640 mm
- Length
910 mm
- Width
450 mm
- Height
640 mm
- Weight
18.5 kg
- Type (Bosch)
Bosch Professional (blue)
- Content
1 pc(s)
- Idle speed
3500 - 5000 U/min
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2620148 Bosch Professional GCM 8 SDE Chop and mitre saw 216 mm 30 mm 1600 W
Warranty Terms
Warranty Terms 2620148 Bosch Professional GCM 8 SDE Chop and mitre saw 216 mm 30 mm 1600 W
Description
This chop and miter saw is suitable for cross, miter, inclination and groove cuts in wood, wooden beams and composite wood as well as plate materials, floor plates, aluminum and plastic. It is compatible with the Bosch Click & Clean dust extraction system and various work desks.Additional informationThe GCM 8 SDE Professional also offers features such as two-point dust extraction, tilt locking, precision laser, soft start-up, two-sided tilt adjustment and speed pre-selection.
This text is machine translated.
This text is machine translated.
Scope of delivery
- Chop and miter saw GCM 8 SDE
- 1x Circular saw blade, Expert for Wood, 216 x 30 x 2.4 mm, 48
- Terminal
- SDS saw blade locking
