Buy Bosch Professional GTS 18V-70 Cordless table saw 216 mm 30 mm 18 V

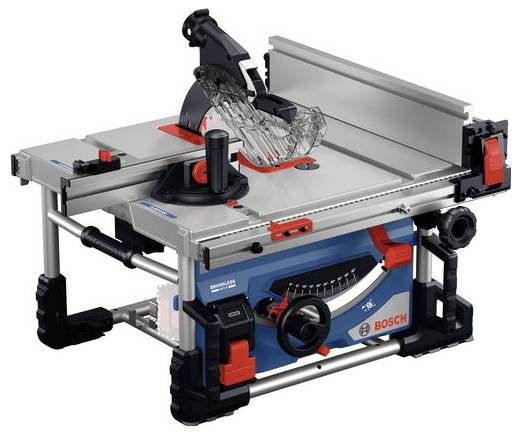

A portable Bosch table saw featuring adjustable angle settings, a clear blade guard, and sturdy metal construction, ideal for precision cutting tasks.

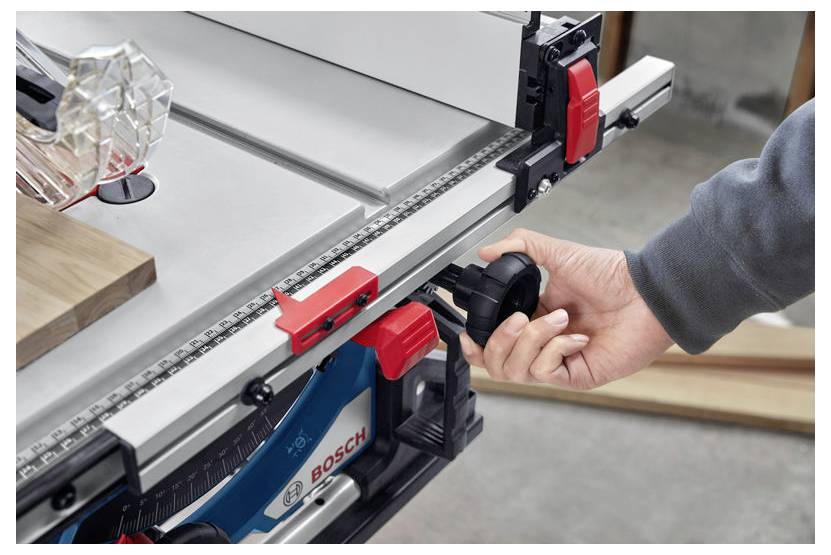

'A person adjusts a table saw fence using a black knob on a Bosch saw. The work surface is metallic with red and black fixtures.'

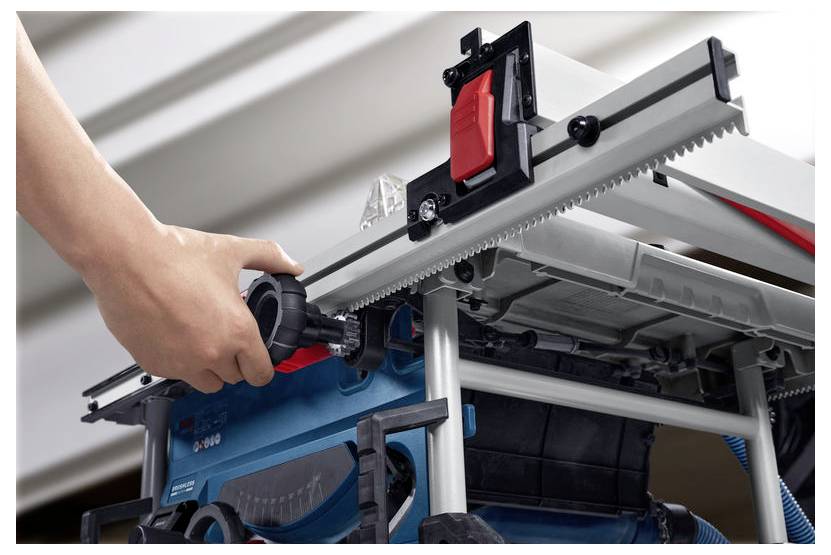

A person adjusts the settings on a power tool's immobile work table using a black knob. The tool features a red start button.

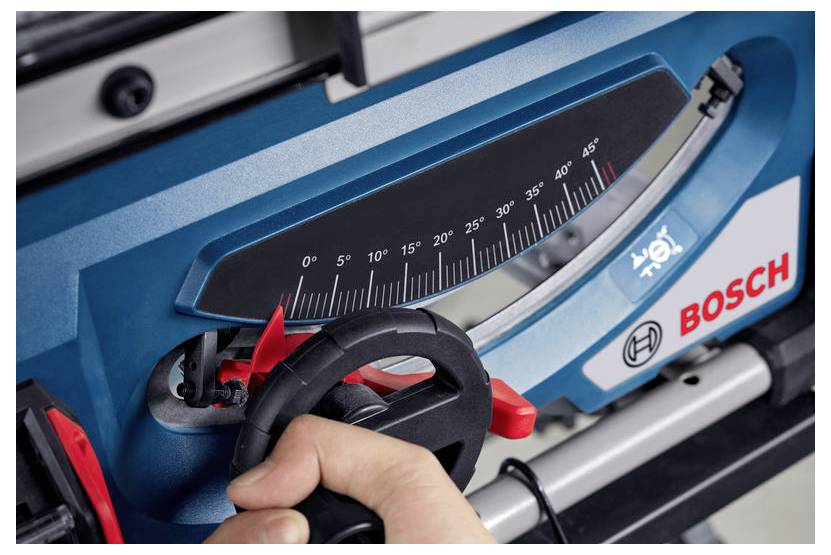

Hand adjusting the angle on a Bosch power tool with a marked gauge showing angles from 0 to 45 degrees.

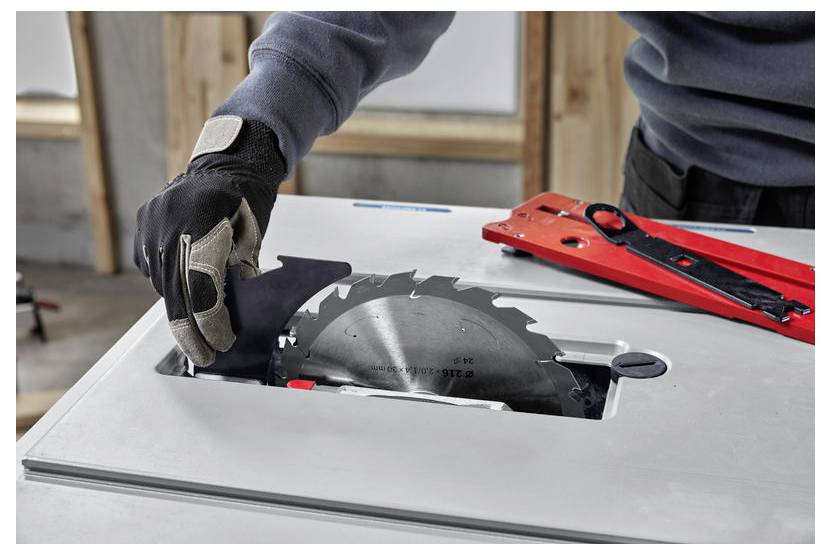

A person wearing a glove adjusts a circular saw blade in a table saw, with tools visible on the table in a workshop setting.

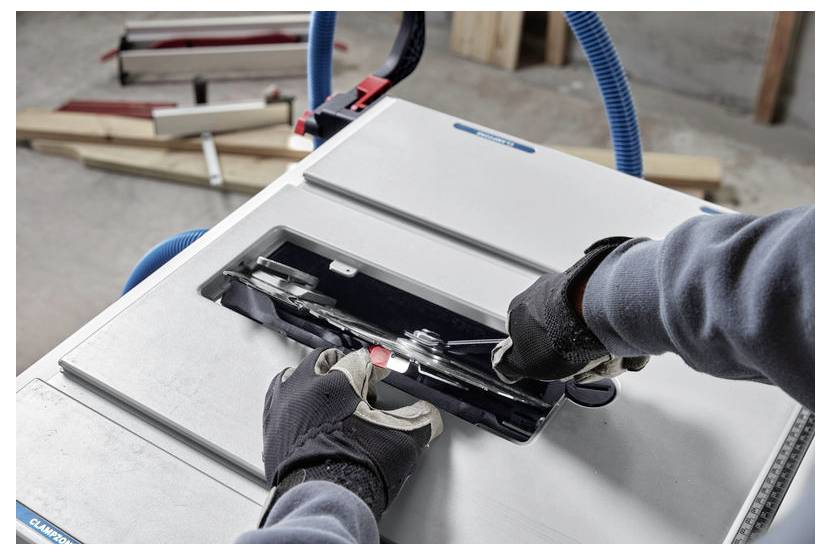

Person wearing gloves adjusts circular saw on a table saw machine, with wooden planks and tools in the background.

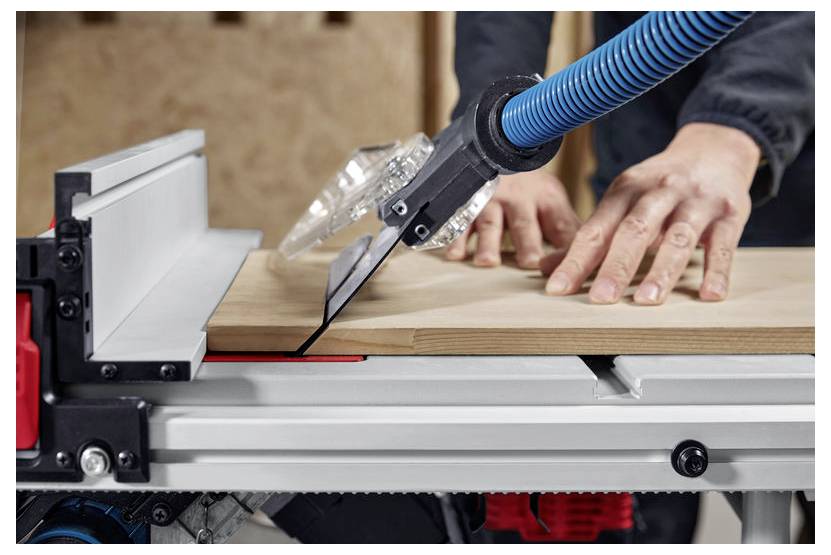

A person carefully guides a piece of wood through a table saw, hands positioned to maintain control, with a focus on safety.

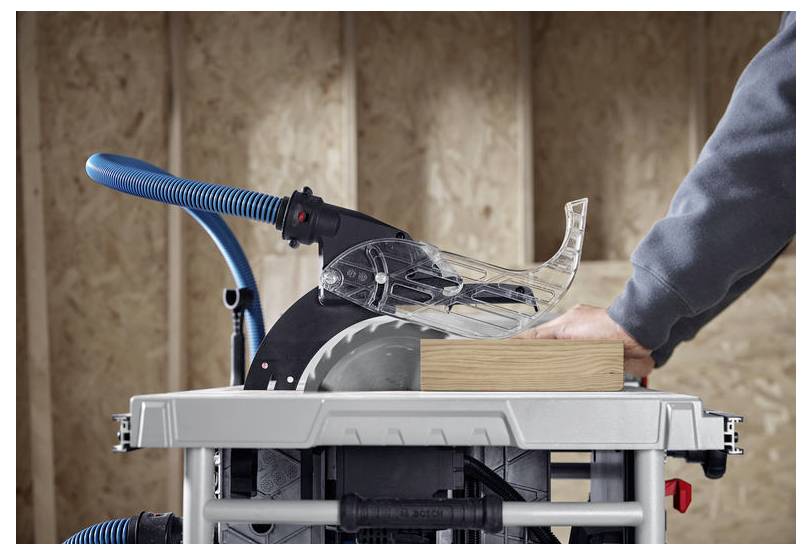

A person uses a table saw in a workshop to cut a wooden plank, with a safety guard over the saw blade.

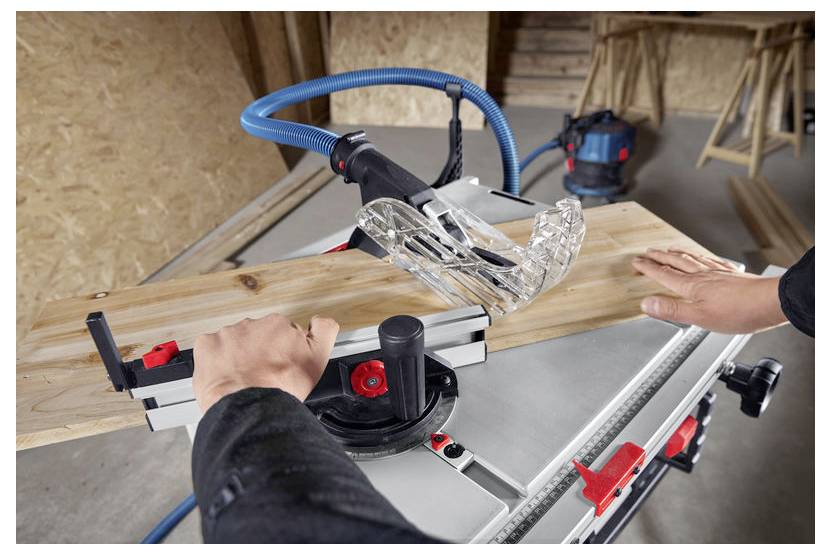

A person uses a table saw to cut a piece of wood, with clear safety guards and precision tools, in a woodworking workshop setting.

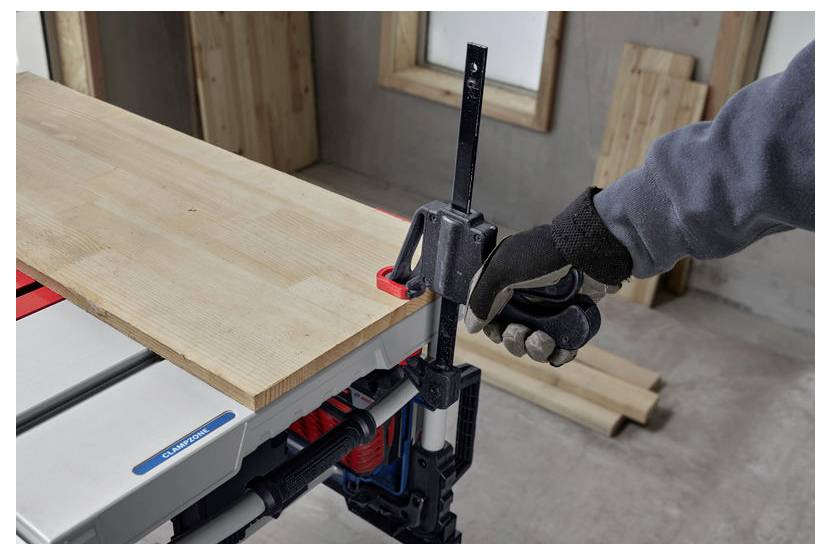

'Person using a clamp to secure a wooden board on a workbench in a workshop setting, wearing gloves for safety.'

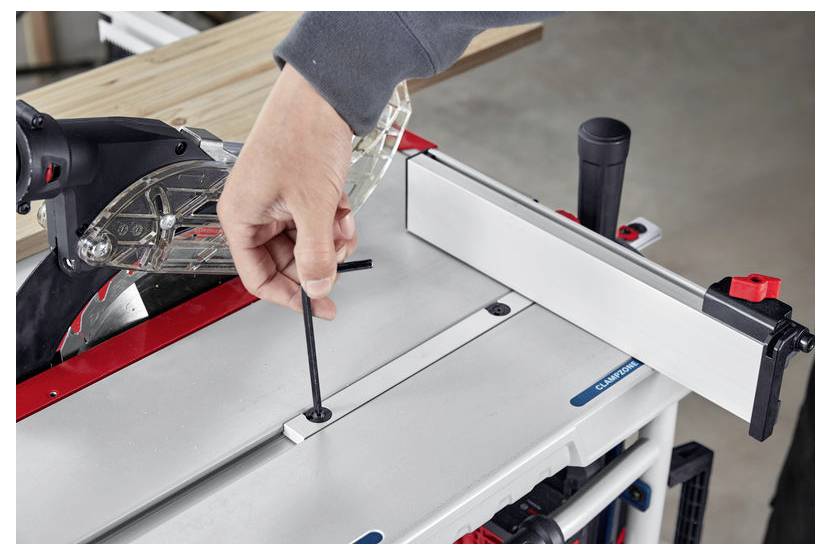

A person adjusts a table saw blade using a hex key, focusing on maintenance or setup. The table's surface is metallic and features a guard.

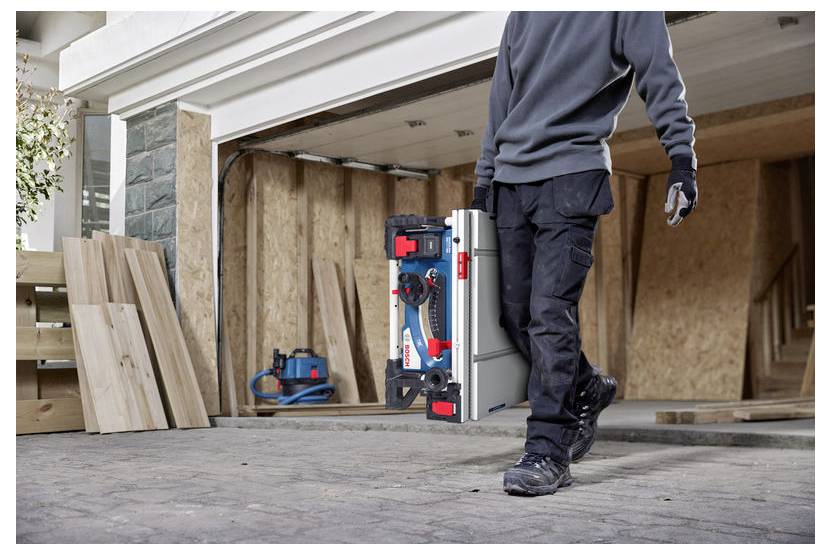

A person carries a portable table saw outdoors, near a garage under construction with plywood walls and scattered wood planks.

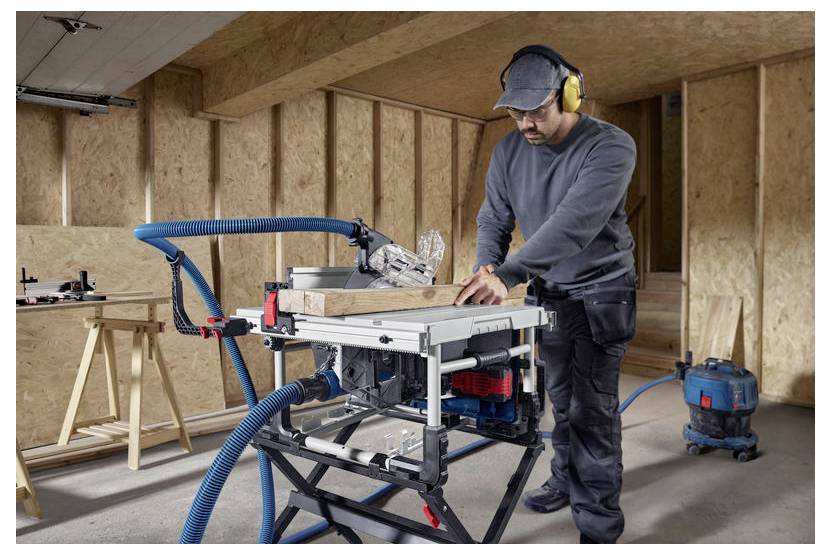

Man using a power saw in a woodworking shop, wearing safety gear like gloves and ear protection. Vacuum hose connected for dust control.

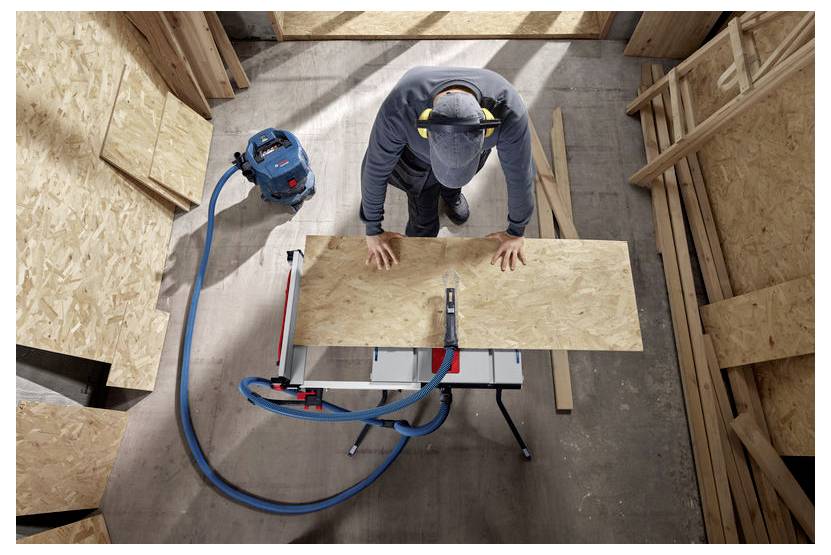

A person wearing a cap and earmuffs is cutting a wooden board on a workbench with a vacuum attached, surrounded by wood panels.

1/14

Datasheet (PDF)

Unavailable

3 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Product type: Cordless table saw

Saw blade diameter: 216 mm

Bore Ø: 30 mm

Operating voltage: 18 V

Cutting depth (max.) (45°): 49 mm

Cutting depth (max.) (90°): 70 mm

Length: 593 mm

Width: 608 mm

Height: 329 mm

Dim: (L x W x H) 593 x 608 x 329 mm

Weight: 21.2 kg

No. of power packs included: 0

Factory colour: Blue

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 3473530 Bosch Professional GTS 18V-70 Cordless table saw 216 mm 30 mm 18 V

User & Safety Instructions

User & Safety Instructions 3473530 Bosch Professional GTS 18V-70 Cordless table saw 216 mm 30 mm 18 V

Description

GTS 18V-70 table saw, the GTS 18V-70 cordless table saw maximizes the cutting efficiency thanks to a brushless motor, which delivers the power of a wired table circular saw with maximum mobility. It offers the best quality cutting height of 70 mm and a cutting capacity of 635 mm. Thanks to its compact design, this saw can be easily transported with one hand. It minimizes dust and keeps your workplace clean with two Click & Clean suction connectors. The GTS 18V-70 is designed for precision and provides for accurate longitudinal cuts thanks to the rack stop system. It also has a handwheel for micro-adjustment of your cross-sections. The adjustable miter gauge simplifies precise angle cuts, while tool-free diagonal cuts from -2° to 47° offer versatility for different projects. Moreover, this saw has practical clamping ranges to attach work pieces to the table top. And thanks to a slot in the parallel stop, you can mount a spring comb that protects you from setbacks. The cordless circular saw bench GTS 18V-70 is suitable for cutting rafters and beams, for room work, for mounting profiles and for laying floors. This table saw is equipped with a quick brake system, a spindle lock for easy change of saw blades and soft-start technology. 1 x battery saw blade, standard for wood, 216 x 30 x 2.0 mm, 24 (2 608 837 724). Angle stop. Sliding stock (1 619 PS3 483) Suction adapter (1 619 PS3 515) Ring wrench (1 619 PS3 584). Protective cover with suction adapter (1 619 PS3 600). Profile rail (1 619 PS3 603) Inner hexagonal wrench (1 619 PS3 582) Parallel stop (1 619 PS3 599)

This text is machine translated.
