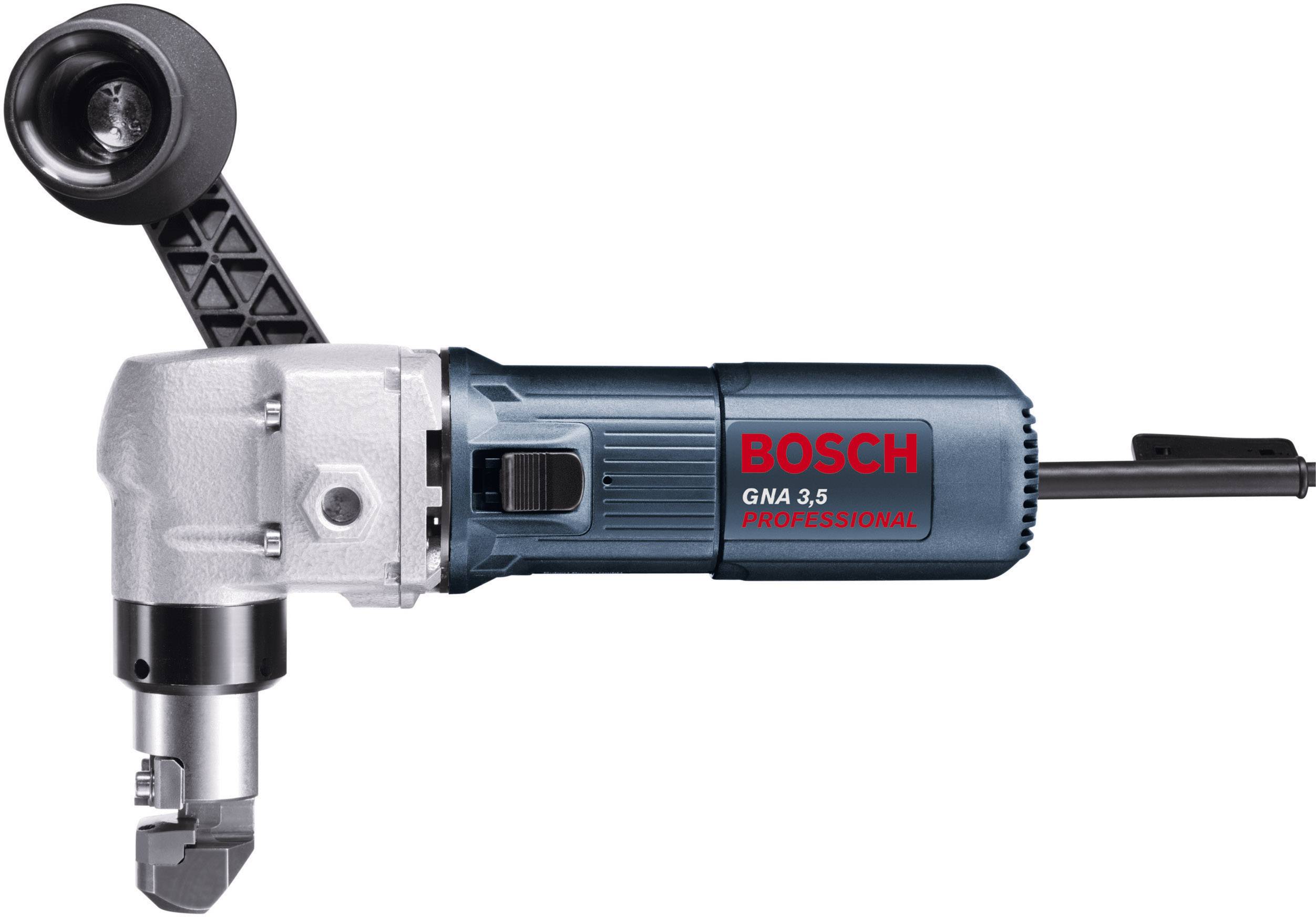

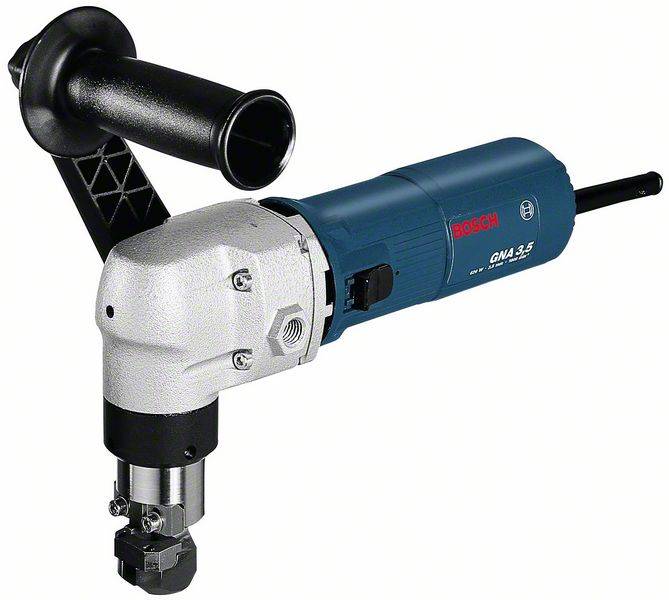

Bosch Professional Nibbler GNA 3,5 0601533103 Operating voltage 230 V Power 620 W
EAN:
Part number:
Item no:
Bosch Professional Nibbler GNA 3,5 0601533103 Operating voltage 230 V Power 620 W
Technical specifications
- Product type
Nibbler
- Operating voltage
230 V
620 W
- Output power
340 W
- Dim
(L x W x H) 348 x 200 x 100 mm
- Weight
3.5 kg
- Type (Bosch)
Bosch Professional (blue)
- Number of strokes (max.)
670 /min
- Cable length
0 mm
- Width
200 mm
- Height
100 mm
- Length
348 mm
- Max. material thickness (steel strength: 400 N/mm²)
3.5 mm
- Max. material thickness (steel strength: 600 N/mm²)
2.4 mm
- Max. material thickness (steel strength: 800 N/mm²)
1.6 mm
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 514461 Bosch Professional Nibbler GNA 3,5 0601533103 Operating voltage 230 V Power 620 W
Description
Rodents GNA 3.5, the strongest of Bosch, powerful 620W motor, particularly suitable for the torsion-free separating alloyed steels and stainless steel sheet, work according to markings and template easy matrices holder on plate thickness can be set, vibration-free working, high service life of punch and die results in great cutting performance, matrix can be replaced, stamp can be re-ground, shut-off carbon brushes, good handling for left handers, retaining bracket (2 607 001 190), Allen wrench SW 4 1 907 950 005), additional handle (2 602 025 075), die (2 608 639 026), stamp (2 608 639 025)
