Bosch Smart Home Blinds actuator
EAN:
Part number:
Item no:
Highlights & Details

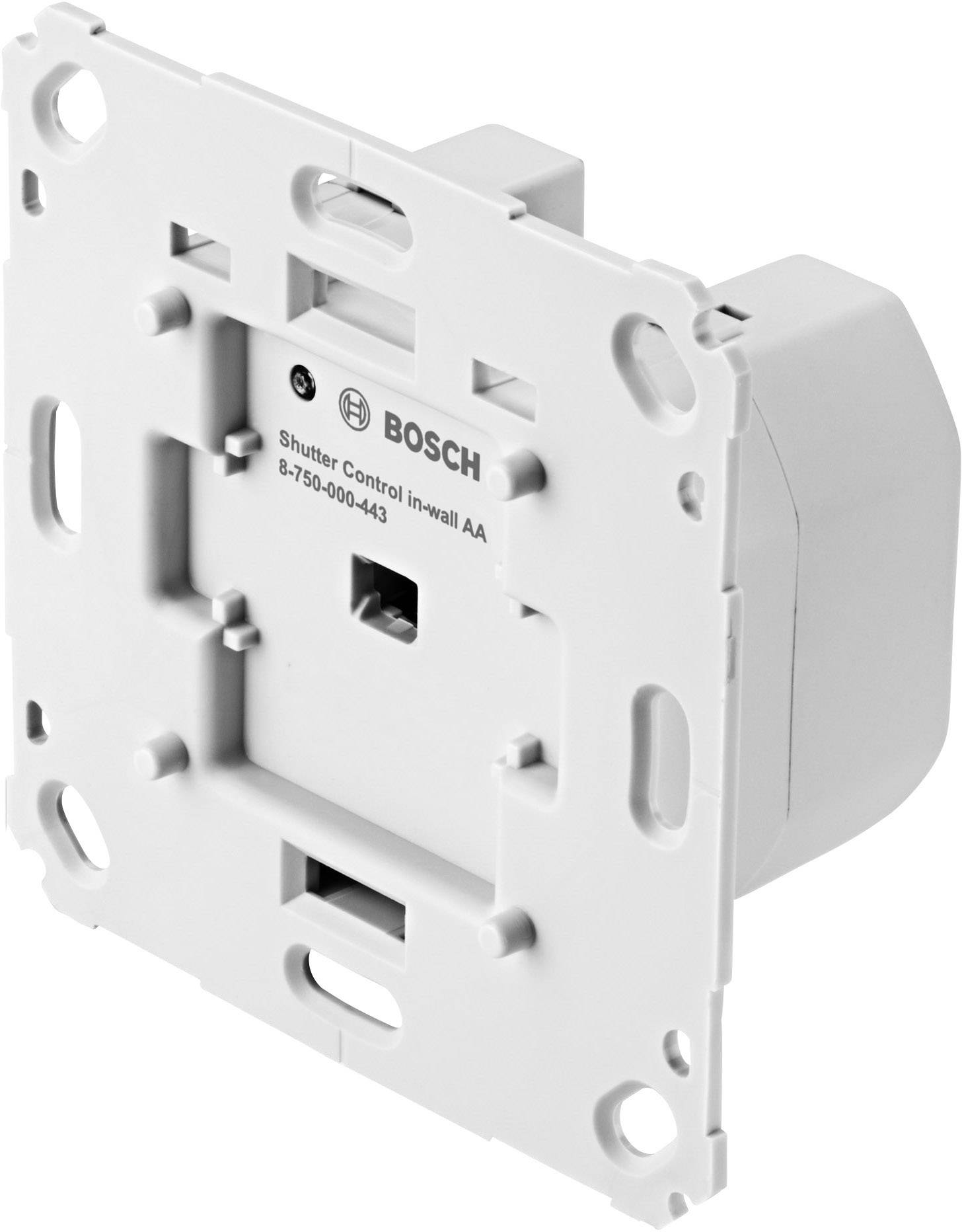

Bosch blind control flush-mounted
- Invisible installation existing roller shutter switches
- Can be integrated into your presence simulation
- Configurable scenarios suitable for the daily routine
Technical specifications
- Relay: changer and closer.
- Cable cross-section: 0.75 mm²... 1.5 mm².
- Load Type: motor load
- Series
Bosch Smart Home
- Max. switching capacity
500 W
- Used at
Indoors
IP20
- Power supply (LOV)
battery-powered
- Operating voltage
230 V
10 mW
- Data transfer (Smart Home)
Wireless
- Frequency
868 MHz
220 m
- Mounting type
Flush mount
- Width
71 mm
- Height
71 mm
- Depth
37 mm
- Dim
(W x H x D) 71 x 71 x 37 mm
n.rel.
- Data exchange
Bidirectional (bi)
- Hub
Required
- Weight
57 g
- Product type
Blinds actuator
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1630994 Bosch Smart Home Blinds actuator
Information
Information 1630994 Bosch Smart Home Blinds actuator
Description
The incidence of light by finger tip: the shutter control.

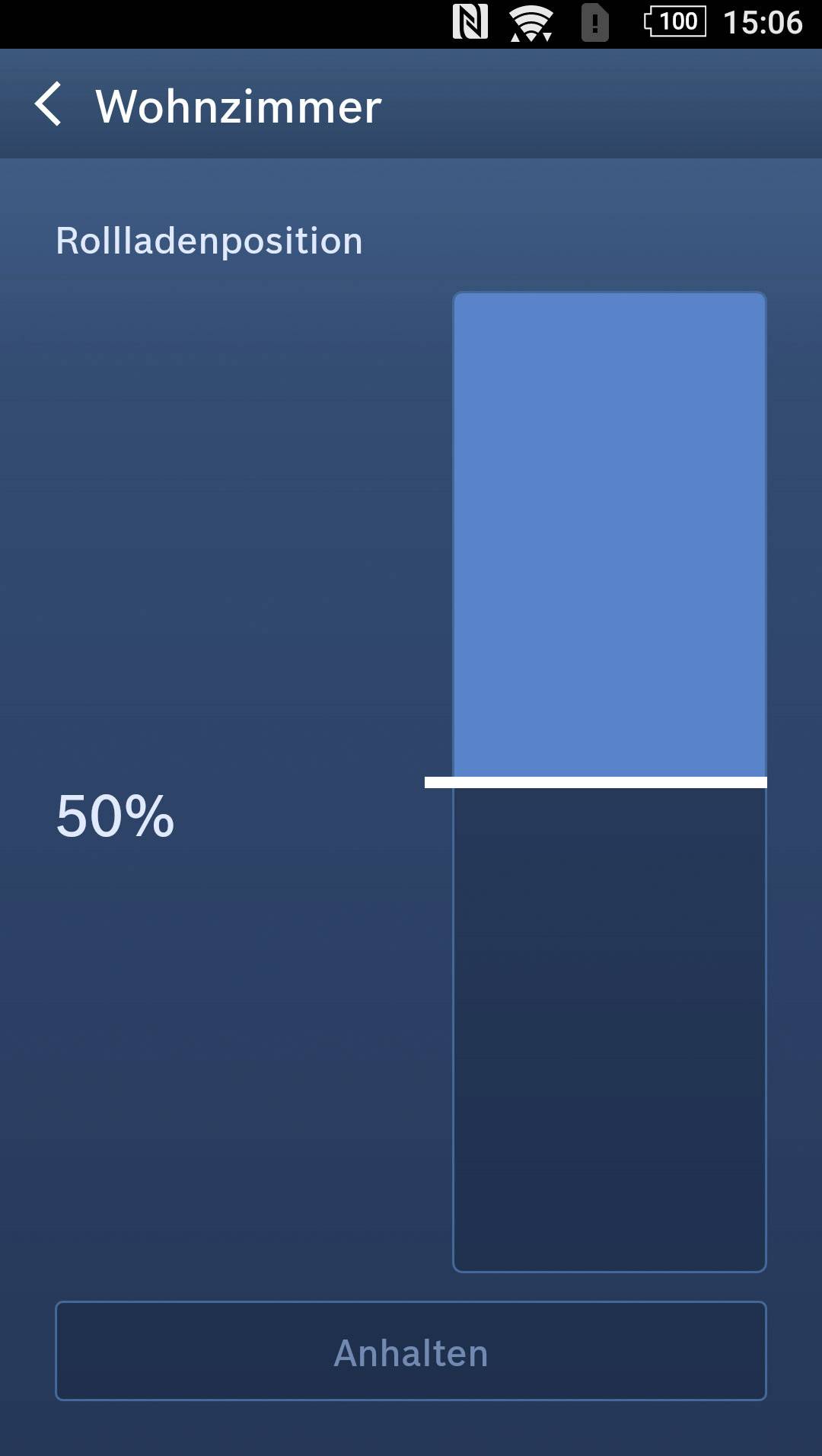

Guests can relax in the sunshine in the deck chair and use the Smart Home system to control the lichteinfalls in your living room. With a smart shutter control app you can keep an overview of position and adjusting height of your shutters. Using the Smartphone App, you can make individual shutters or selected groups easily via App use. You can also set via the scenario manager, decide the times for your shutters automatically or shutting down. This function, you can, for example, even in the presence simulation. Open and close your shutters then completely automatically, even if you enjoy the sunshine away from home.
This text is machine translated.
Guests can relax in the sunshine in the deck chair and use the Smart Home system to control the lichteinfalls in your living room. With a smart shutter control app you can keep an overview of position and adjusting height of your shutters. Using the Smartphone App, you can make individual shutters or selected groups easily via App use. You can also set via the scenario manager, decide the times for your shutters automatically or shutting down. This function, you can, for example, even in the presence simulation. Open and close your shutters then completely automatically, even if you enjoy the sunshine away from home.
This text is machine translated.
Features
- Also can be used for easy control of blinds or awnings
- Automatic control possible, adapted to the sunrise and sunset times.
Scope of delivery
- Blind control flush-mounted
- Fixings
- User manual.
Hints
Can be used only in connection with the Bosch Smart Home Controller (order no. 1524048).
