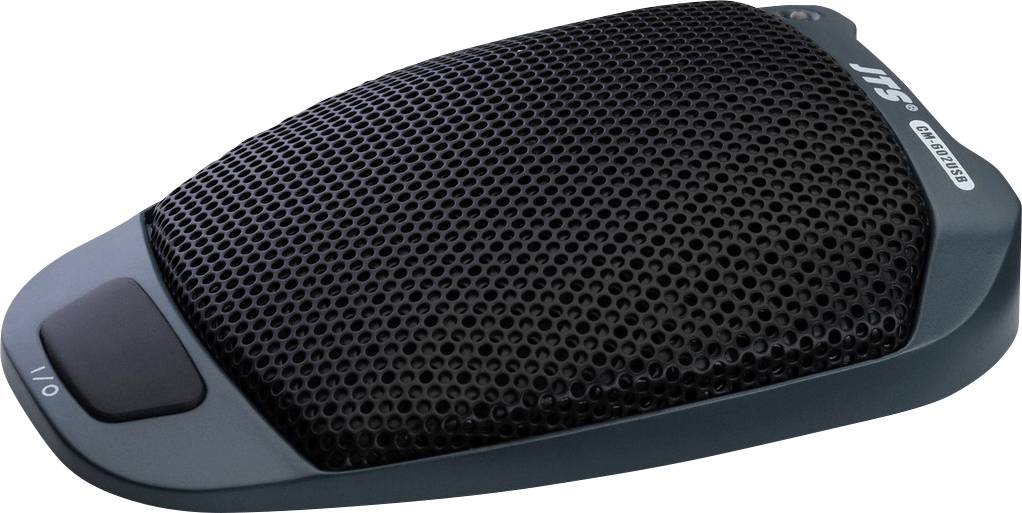

Boundary layer microphone JTS CM-602USB Transfer type (details):Corded Switch
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Net weight: 0.138 kg
- Dimensions 72 x 23 x 110 mm
- Ass. Operating temperature 0-40 °C
- Weight: 88 g
- Gross weight: 0.256 kg
- Max. Sound pressure 125 dB
- USB-B socket
- Characteristic: Halfcardioid
- Sensitivity 2.2 mV/Pa
- Type: Boundary microphone
- Transmission type: Cable
- System: Electret
- Audio frequency range 30-12000 Hz
- Power supply: Via USB-interface
- Nominal impedance 100 Ω
- Cable 1.8 m
- Housing material: Plastic
- Product type
Boundary layer microphone
- Transfer type
Corded
- Characteristics
Halfcardioid
- Impedance
100 Ω
- Features
Switch
- Cable length
1.8 m
- Connector
USB-B connector
- Weight
88 g
- Width
72 mm
- Height
23 mm
- Length
110 mm
- Dim
(L x W x H) 110 x 72 x 23 mm
- Interfaces
USB type B
USB
- Frequency range
30-12000 Hz
- Depth
110 mm
Documents & Downloads
Datasheet
Datasheet 3340582 Boundary layer microphone JTS CM-602USB Transfer type (details):Corded Switch
Description
Electret boundary microphone
With USB connection
On / Off switch with operating display Elastic capsule mounting for avoiding impact and structure-borne sound noises With 1.8-m-USB connection cable
This text is machine translated.
With USB connection
On / Off switch with operating display Elastic capsule mounting for avoiding impact and structure-borne sound noises With 1.8-m-USB connection cable
This text is machine translated.
Features
- Type: Boundary microphone
- Transmission type: Cable
- Characteristic: Halfcardioid
- System: Electret
- Audio frequency range 30-12000 Hz
- Nominal impedance 100 Ω
- Sensitivity 2.2 mV/Pa
- Max. Sound pressure 125 dB
- Power supply: Via USB-interface
- Housing material: Plastic
- Ass. Operating temperature 0-40 °C
- Dimensions 72 x 23 x 110 mm
- Weight: 88 g
- Cable 1.8 m
- USB-B socket
- Packaging dimensions (W x H x L) 0.162 x 0.065 x 0.158 m
- Gross weight: 0.256 kg
- Net weight: 0.138 kg
