Buy Bourns 3266W-1-100LF Cermet trimmer Sealed linear 0.25 W 10 Ω 4320 ° 4320 ° 1 pc(s) #####Tape and Reel

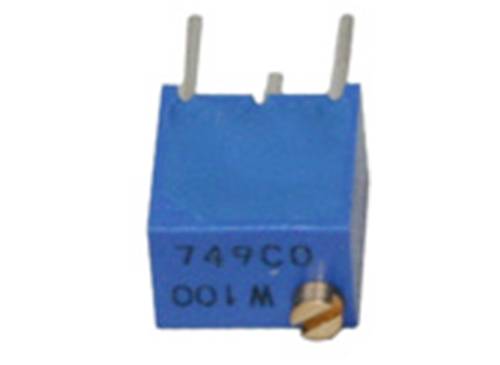

Blue, square, electrical component with three connection pins and an adjustment screw on the underside.

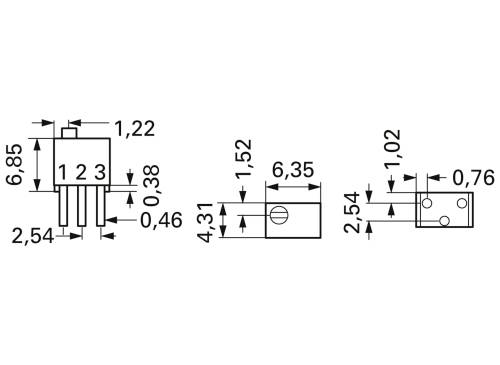

Electronic component with three-pole plug. Dimensions: 6.85 mm height, 2.54 mm pin spacing. Side section shows 1.52 mm thickness.

1/2

Packaging type

#####Tape and Reel

Product type

Cermet trimmer

Resistance

10 Ω

Resistance characteristic

linear

Power rating

0.25 W

Datasheet (PDF)

Fast track dispatch on Tue, 6 Oct

20 Piece(s) (Only while stocks last)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 1.88 / piece)

€ 1.88

plus VAT.

14-day return policy included

Report legal concerns

Highlights & Details

Cermet trimmer, 12 speed, 10 Ω, 0.25 W, THT, top, 3266W-1-100L

Our service for you

Technical specifications

Packaging type: #####Tape and Reel

Product type: Cermet trimmer

Potentiometer features: Sealed

Resistance: 10 Ω

Resistance characteristic: linear

Power rating: 0.25 W

Electrical angle: 4320°

Mechanical angle: 4320°

Connection: Solder pins

Type: THT

Operation type: top

Min. temperature: -55 °C

Max. temperature: 125 °C

Temperature coefficient: 100 ppm/K

Tolerance ±: 10 %

Width: 4.5 mm

Height: 7.24 mm

CS: 2.54 mm

Dim: (L x W x H) 6.71 x 4.5 x 7.24 mm

Content: 1 pc(s)

Type: 3266W-1-100LF

RoHS-compliant: Yes

Length: 6.71 mm

No. of rotations: 12

Documents & Downloads

Datasheet

Datasheet 2996146 Bourns 3266W-1-100LF Cermet trimmer Sealed linear 0.25 W 10 Ω 4320 ° 4320 ° 1 pc(s) #####Tape and Reel

User & Safety Instructions

User & Safety Instructions 2996146 Bourns 3266W-1-100LF Cermet trimmer Sealed linear 0.25 W 10 Ω 4320 ° 4320 ° 1 pc(s) #####Tape and Reel

Description

Cermet trimmer, 3266W-1-100LF, Bourns cermet trimmer, 10 Ω, 0.25 W features * multiturn / cermet / industry / sealed * standoff enable thorough PCB wash * tape and coil packaging available
