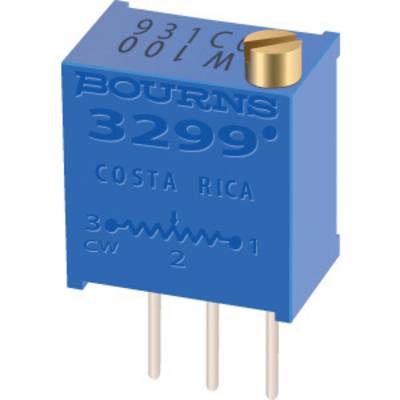

Bourns 3299W-1-502LF Cermet trimmer 25-pos linear 0.5 W 5 kΩ 9 ° 1 pc(s)
EAN:
Part number:
Item no:
Product type
Cermet trimmer
Resistance
5 kΩ
Resistance characteristic
linear
Power rating
0.5 W
Connection
Solder pins
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 3.878
5
7% = € 0.25
€ 3.625
10
9% = € 0.35
€ 3.524
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 3.878 / piece)
€ 3.88
plus VAT.
14-day return policy included
Highlights & Details
Cermet trimmer, 25 speed, 5 kΩ, 0.5 W, THT, top, 3299W-1-502LF
Our service for you
Technical specifications
- Product type
Cermet trimmer
- Potentiometer features
25-pos
- Resistance
5 kΩ
- Resistance characteristic
linear
- Power rating
0.5 W
- Cut-off voltage
300 V
- Electrical angle
9°
- Connection
Solder pins
- Type
THT
- Operation type
top
- Min. temperature
-55 °C
- Max. temperature
125 °C
- Temperature coefficient
100 ppm/K
- Tolerance ±
10 %

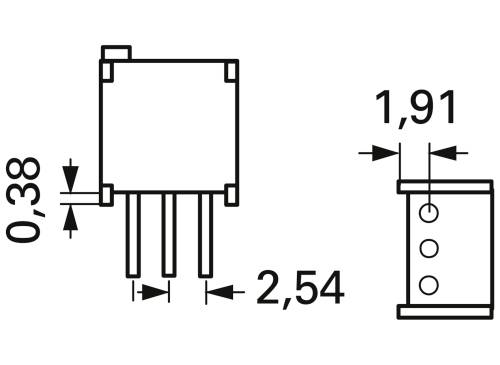

- Width
9.53 mm
- Height
6.1 mm
- CS
2.54 mm
- Dim
(L x W x H) 10.03 x 9.53 x 6.1 mm
- Content
1 pc(s)
- Type
3299W-1-502LF
- RoHS-compliant
Yes
- Length
10.03 mm
- No. of rotations
25
Documents & Downloads
Datasheet
Datasheet 2996240 Bourns 3299W-1-502LF Cermet trimmer 25-pos linear 0.5 W 5 kΩ 9 ° 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2996240 Bourns 3299W-1-502LF Cermet trimmer 25-pos linear 0.5 W 5 kΩ 9 ° 1 pc(s)
Description
Cermet trimmer type Bourns 3299. For 25 revolutions; Design: Vertical, activation from above, sealed industrial design, rating: 0.5 W at +70 °C (0 at +125 °C), operating voltage: Max. 300 V, temperature range: 55 to +125 °C, tolerance: ±10 %, temperature coefficient: ±100, dimensions: 9.5 x 6.0 x 10.0 mm. With contact placement in a series of type 3299W. Type 5K0
