Buy Bourns 3314G-1-101E Cermet trimmer 1-pos 0.25 W 100 Ω 210 ° 240 ° 1 pc(s)

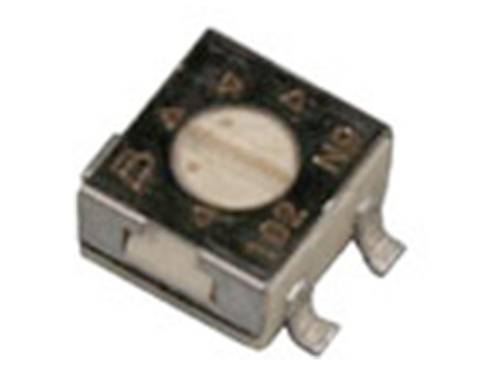

An electronic component, likely an SMD trimmer potentiometer, rectangular with a slot on top, two connection pins visible.

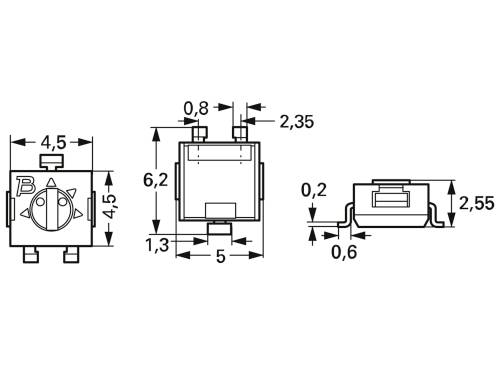

Technical drawing of an electronic component with dimensions: 4.5 x 4.5, height 6.2. Contains information about the position of connections and button.

1/2

Product type

Cermet trimmer

Resistance

100 Ω

Power rating

0.25 W

Mechanical angle

240 °

Connection

SMT

Datasheet (PDF)

Fast track dispatch on Tue, 6 Oct

84 Piece(s) (Only while stocks last)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 0.89 / piece)

€ 0.89

plus VAT.

14-day return policy included

Report legal concerns

Technical specifications

Product type: Cermet trimmer

Potentiometer features: 1-pos

Resistance: 100 Ω

Power rating: 0.25 W

Electrical angle: 210°

Mechanical angle: 240°

Connection: SMT

Type: SMD

Operation type: top

Min. temperature: -55 °C

Max. temperature: 125 °C

Temperature coefficient: 100 ppm/K

Tolerance ±: 20 %

Width: 4.5 mm

Height: 2.55 mm

CS: 2.35 mm

Dim: (L x W x H) 4.5 x 4.5 x 2.55 mm

Content: 1 pc(s)

Type: 3314G-1-101E

RoHS-compliant: Yes

Length: 4.5 mm

No. of rotations: 1

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 2996252 Bourns 3314G-1-101E Cermet trimmer 1-pos 0.25 W 100 Ω 210 ° 240 ° 1 pc(s)

User & Safety Instructions

User & Safety Instructions 2996252 Bourns 3314G-1-101E Cermet trimmer 1-pos 0.25 W 100 Ω 210 ° 240 ° 1 pc(s)

Description

SMD cermet trim potentiometer, 3314G-1-101E, Bourns SMD cermet trim potentiometer, 100 Ω, 0.25 W features * assembly / single turn / cermet industrial / sealed * compatible with surface-mounted production processes * compatible with common vacuum assembly machines * side adjustment available
