Buy Bourns 3314J-1-202E Cermet trimmer 1-pos 0.25 W 2 kΩ 210 ° 240 ° 1 pc(s) Piece

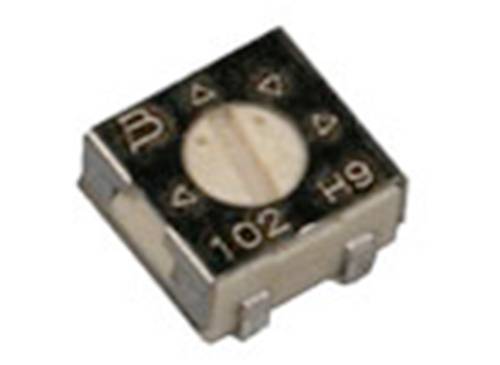

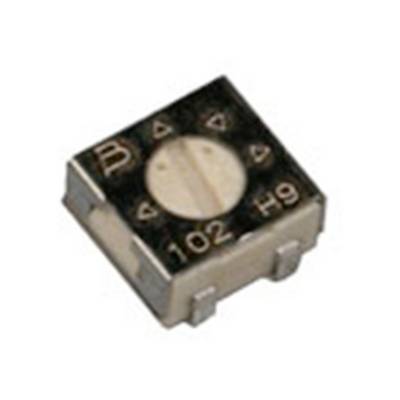

A rectangular electronic component with numbers and letters on its top surface, used for controlling circuit boards.

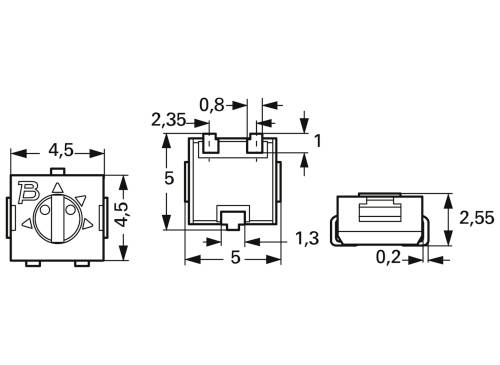

Technical drawing of an electrical switch with precise dimensional specifications in millimetres; shows front and side view.

1/2

Packaging type

Piece

Product type

Cermet trimmer

Resistance

2 kΩ

Power rating

0.25 W

Mechanical angle

240 °

Datasheet (PDF)

Fast track dispatch on Tue, 6 Oct

16 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Total (€ 2.333 / piece)

€ 2.33

plus VAT.

14-day return policy included

Report legal concerns

Technical specifications

Packaging type: Piece

Product type: Cermet trimmer

Potentiometer features: 1-pos

Resistance: 2 kΩ

Power rating: 0.25 W

Electrical angle: 210°

Mechanical angle: 240°

Connection: SMT

Type: SMD

Operation type: top

Min. temperature: -55 °C

Max. temperature: 125 °C

Temperature coefficient: 100 ppm/K

Tolerance ±: 20 %

Width: 4.5 mm

Height: 2.55 mm

CS: 2.35 mm

Dim: (L x W x H) 4.5 x 4.5 x 2.55 mm

Content: 1 pc(s)

Type: 3314J-1-202E

RoHS-compliant: Yes

Length: 4.5 mm

No. of rotations: 1

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 2996262 Bourns 3314J-1-202E Cermet trimmer 1-pos 0.25 W 2 kΩ 210 ° 240 ° 1 pc(s) Piece

User & Safety Instructions

User & Safety Instructions 2996262 Bourns 3314J-1-202E Cermet trimmer 1-pos 0.25 W 2 kΩ 210 ° 240 ° 1 pc(s) Piece

Description

SMD cermet trim potentiometer, 3314J-1-202E, Bourns SMD cermet trim potentiometer, 2 kΩ, 0.25 W features * assembly / single turn / cermet industrial / sealed * compatible with surface-mounted production processes * compatible with common vacuum assembly machines * side adjustment available

This text is machine translated.
