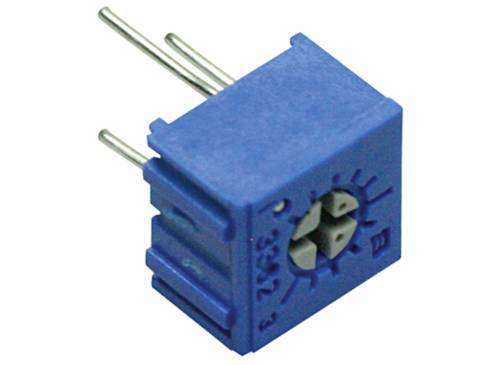

Bourns 3362P-1-103LF Cermet trimmer linear 0.5 W 10 kΩ 240 ° 270 ° 1 pc(s)
EAN:
Part number:
Item no:
Product type
Cermet trimmer
Resistance
10 kΩ
Resistance characteristic
linear
Power rating
0.5 W
Mechanical angle
270 °
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
3
-
€ 1.438
9
8% = € 0.12
€ 1.322
15
11% = € 0.16
€ 1.276
Volume discounts vary depending on the seller
You save € 0.00
Number
Minimum order quantity: 3
Total (€ 1.438 / piece)
€ 4.31
plus VAT.
14-day return policy included
Technical specifications
- Product type
Cermet trimmer
- Resistance
10 kΩ
- Resistance characteristic
linear
- Power rating
0.5 W
- Electrical angle
240°
- Mechanical angle
270°
- Connection
Solder pins
- Type
THT
- Operation type
top
- Min. temperature
-55 °C
- Max. temperature
125 °C
- Temperature coefficient
100 ppm/K
- Tolerance ±
10 %

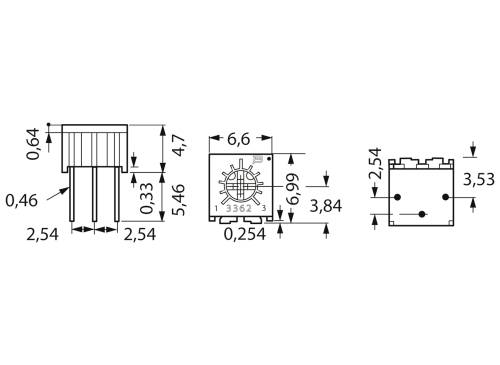

- Width
6.99 mm
- Height
4.88 mm
- CS
2.54 mm
- Dim
(L x W x H) 6.6 x 6.99 x 4.88 mm
- Content
1 pc(s)
- Type
3362P-1-103LF
- RoHS-compliant
Yes
- Length
6.6 mm
- No. of rotations
1
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2996278 Bourns 3362P-1-103LF Cermet trimmer linear 0.5 W 10 kΩ 240 ° 270 ° 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2996278 Bourns 3362P-1-103LF Cermet trimmer linear 0.5 W 10 kΩ 240 ° 270 ° 1 pc(s)
Description
Cermet trimmer, 3362P-1-103LF, Bourns cermet trimmer, 10 kΩ, 0.5 W features * singleturn / cermet / industry / sealed * miniature package * rotor designed for automatic machine adjustment * Resists harsh environments and immersion cleaning processes
