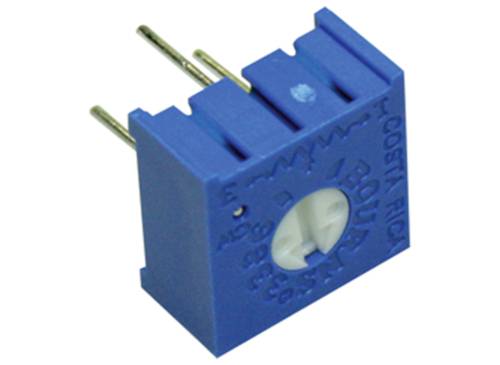

Bourns 3386P-1-504LF Cermet trimmer linear 0.5 W 500 kΩ 280 ° 310 ° 1 pc(s)
EAN:
Part number:
Item no:
Product type
Cermet trimmer
Resistance
500 kΩ
Resistance characteristic
linear
Power rating
0.5 W
Mechanical angle
310 °
Datasheet (PDF)
Number
Total (€ 0.87 / piece)
€ 0.87
plus VAT.
14-day return policy included
Highlights & Details
Cermet trimmer, 500 kΩ, 0.5 W, THT, top, 3386P-1-504LF
Our service for you
Technical specifications
- Product type
Cermet trimmer
- Resistance
500 kΩ
- Resistance characteristic
linear
- Power rating
0.5 W
- Electrical angle
280°
- Mechanical angle
310°
- Connection
Solder pins
- Type
THT
- Operation type
top
- Min. temperature
-55 °C
- Max. temperature
125 °C
- Temperature coefficient
100 ppm/K
- Tolerance ±
10 %

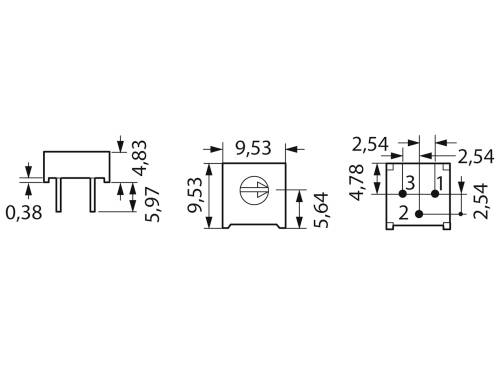

- Width
4.83 mm
- Height
9.53 mm
- CS
5.08 mm
2.54 mm
- Dim
(L x W x H) 9.53 x 4.83 x 9.53 mm
- Content
1 pc(s)
- Type
3386P-1-504LF
- RoHS-compliant
Yes
- Length
9.53 mm
- No. of rotations
1
Documents & Downloads
Datasheet
Datasheet 2996293 Bourns 3386P-1-504LF Cermet trimmer linear 0.5 W 500 kΩ 280 ° 310 ° 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2996293 Bourns 3386P-1-504LF Cermet trimmer linear 0.5 W 500 kΩ 280 ° 310 ° 1 pc(s)
Description
Cermet trimmer type Bourns 3386. For 1 rotation; design: Sealed, depending on version lying or standing, activation from top or side, rotation (electrical): 280°, load capacity: 0.5 W at +85 °C (0 at +125 °C), operating voltage: Max. 300 V, temperature range: –55 to +125 °C, tolerance: ±10 %, temperature coefficient: ±100. Lying with adjustment from above and offset contact arrangement type 3386P. Type 500K
