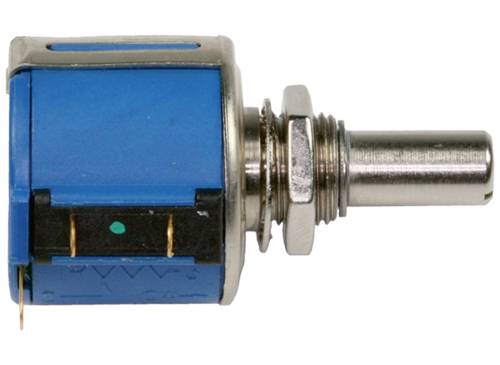

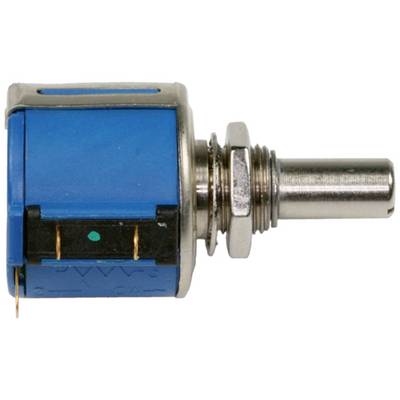

Bourns 3543S-1-502L Precision potentiometer 3-pos 1 W 5 kΩ 1 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Precision potentiometer
Potentiometer features
3-pos
Resistance
5 kΩ
Resistance characteristic
linear
Datasheet (PDF)
Number
Total (€ 53.84 / piece)
€ 53.84
plus VAT.
14-day return policy included
Highlights & Details
Precision potentiometer, 3 RPM, 5 kΩ, 1 W, linear, solder lugs, 3543S-1-502L
- 5 kΩ
- linear
Our service for you
Technical specifications
- Packaging type
Piece
- Product type
Precision potentiometer
- Potentiometer features
3-pos
- Resistance
5 kΩ
- Resistance characteristic
linear
- Power rating
1 W
- Connection
Solder tag
- Mechanical angle
1080°
- Electrical angle
1080°
- Type
straight
- Axle type
Slotted
- Axle Ø
6.34 mm
- Length
22.2 mm
- Width
20 mm
- Min. temperature
1 °C
- Max. temperature
125 °C
- Content
1 pc(s)
- Type
3543S-1-502L

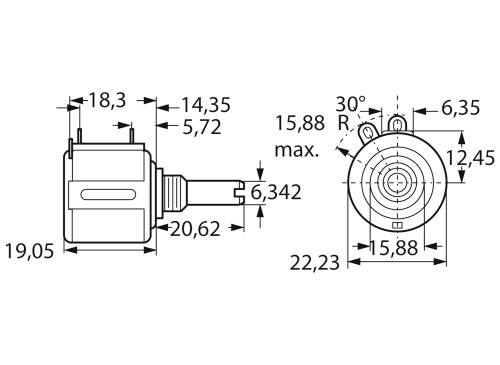

- Dim
(L x W) 22.2 mm x 20 mm
- RoHS-compliant
Yes
- No. of rotations
3
Documents & Downloads
Datasheet
Datasheet 2996303 Bourns 3543S-1-502L Precision potentiometer 3-pos 1 W 5 kΩ 1 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 2996303 Bourns 3543S-1-502L Precision potentiometer 3-pos 1 W 5 kΩ 1 pc(s) Piece
Description
Wire wound potentiometer Bourns 354. Design: With central mounting and axle with adjustment slot, linearity: ±0.25 %, operating temperature: +1.0 to +125 °C, resistance tolerance: ±5.0 %, test voltage: 1000 VAC, central mounting: 3/8 inch-32 UNEF. As 3-gear design type 3543S. Capacity: 1.0 W at +70 °C, 0 W at +125 °C, operating voltage: Max. 224 VAC, TK: ±100, rotation angle electrical and mechanical: 1080° (+10°/–0°). Type 5K0
This text is machine translated.
This text is machine translated.
Scope of delivery
- 3543S-1-502L.
