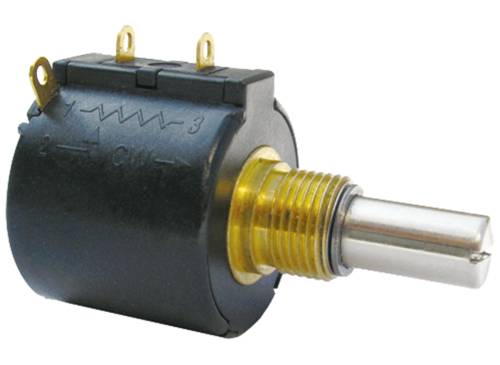

Bourns 3549S-1AA-103A Wire-wound pot 10-pos 2 W 10 kΩ 1 pc(s)
EAN:
Part number:
Item no:
Product type
Wire-wound pot
Potentiometer features
10-pos
Resistance
10 kΩ
Resistance characteristic
linear
Power rating
2 W
Datasheet (PDF)
Number
Total (€ 19.33 / piece)
€ 19.33
plus VAT.
Only 8 Piece(s) available
Highlights & Details
Wire wound potentiometer, 10 revolutions, 10 kΩ, 2 W, linear, Solder tag, 3549S-1AA
- 10 kΩ
- linear
Technical specifications
- Product type
Wire-wound pot
- Potentiometer features
10-pos
- Resistance
10 kΩ
- Resistance characteristic
linear
- Power rating
2 W
- Connection
Solder tag
- Mechanical angle
3600°
- Electrical angle
3600°
- Type
straight
- Axle length
6.34 mm
- Axle Ø
6.35 mm
- Length
22.48 mm
- Width
19.81 mm
- Min. temperature
-40 °C
- Max. temperature
125 °C
- Content
1 pc(s)
- Type
3549S-1AA-103A

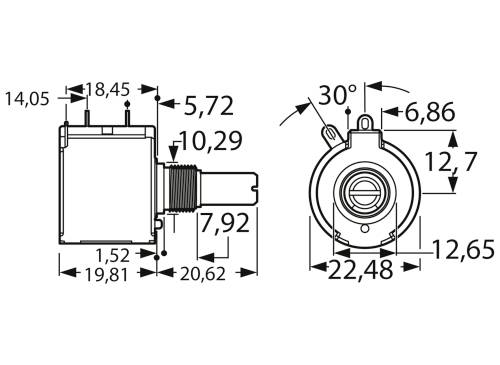

- Dim
(L x W) 22.48 mm x 19.81 mm
- RoHS-compliant
Yes
- No. of rotations
10
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2996305 Bourns 3549S-1AA-103A Wire-wound pot 10-pos 2 W 10 kΩ 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2996305 Bourns 3549S-1AA-103A Wire-wound pot 10-pos 2 W 10 kΩ 1 pc(s)
Description
Precision turning potentiometer in 10 turn design Type Bourns 3549. With 6.34 mm axis; linearity: ±0.2 %, load capacity: 2.0 W, rotation angle electrical/mechanical: 3600°, operating temperature: 40 up to +125 °C, protection class: IP 50. As wire wound potentiometer type 3549S. Tolerance: ±3.0 %, temperature coefficient: ±50 ppm/°C, life span: 2.0 MIO. Revolutions. Type 10K
This text is machine translated.
This text is machine translated.
Scope of delivery
- 3549S-1AA-103A.
