Bourns 3590S-2-102L ±5% 6,35mm 2W linear Draht 1kΩ multiturn Precision potentiometer 10-pos 2 W 1 kΩ 1 pc(s) Single
EAN:
Part number:
Item no:
Packaging type
Single
Product type
Precision potentiometer
Potentiometer features
10-pos
Resistance
1 kΩ
Resistance characteristic
linear
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 17.95
3
5% = € 0.89
€ 17.06
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 17.95 / piece)
€ 17.95
plus VAT.
14-day return policy included
Highlights & Details
Precision potentiometer, 10 RPM, 1 kΩ, 2 W, linear, Solder tag, 3590S-2-102L
- 1 kΩ
- linear
Technical specifications
- Packaging type
Single
- Product type
Precision potentiometer
- Potentiometer features
10-pos
- Resistance
1 kΩ
- Resistance characteristic
linear
- Power rating
2 W
- Connection
Solder tag
- Mechanical angle
3600°
- Electrical angle
3600°
- Type
straight
- Axle type
Metal
- Axle Ø
6.34 mm
- Thread size
3/8"
- Length
22 mm
- Width
18.6 mm
- Min. temperature
1 °C
- Max. temperature
125 °C
- Content
1 pc(s)
- Type
±5% 6,35mm 2W linear Draht 1kΩ multiturn

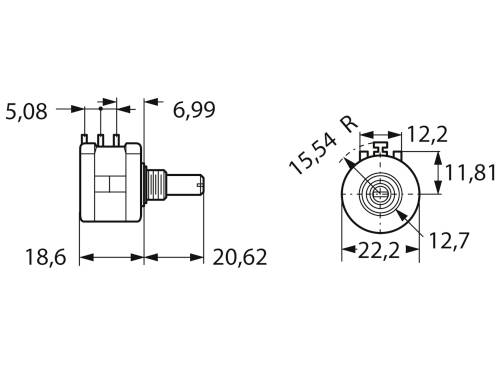

- Dim
(L x W) 22 mm x 18.6 mm
- RoHS-compliant
Yes
- No. of rotations
10
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2996310 Bourns 3590S-2-102L ±5% 6,35mm 2W linear Draht 1kΩ multiturn Precision potentiometer 10-pos 2 W 1 kΩ 1 pc(s) Single
User & Safety Instructions
User & Safety Instructions 2996310 Bourns 3590S-2-102L ±5% 6,35mm 2W linear Draht 1kΩ multiturn Precision potentiometer 10-pos 2 W 1 kΩ 1 pc(s) Single
Description

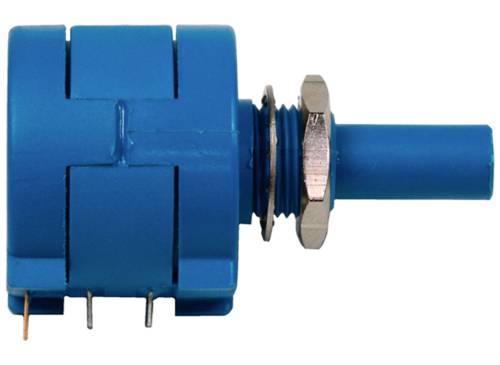

Wire wound potentiometer in 10 turn design type Bourns 3590S. Design: With central thread, linearity: ±0.25 %, load capacity: 2.0 W at +40 °C, 0 W at +125 °C, operating voltage: Max. 450 VAC, operating temperature: –40 up to +125 °C, temperature coefficient: ±50, resistor. -Tolerance: ±5.0%, test voltage: 1500 VAC Rotation angle: Electrical and mechanical 3600° (+10°/–0°). With metal axle Type 3590S-2. Mounting:3/8 inch-32 UNEF. Type 1K0
This text is machine translated.
This text is machine translated.
Scope of delivery
- 3590S-2-102L.
