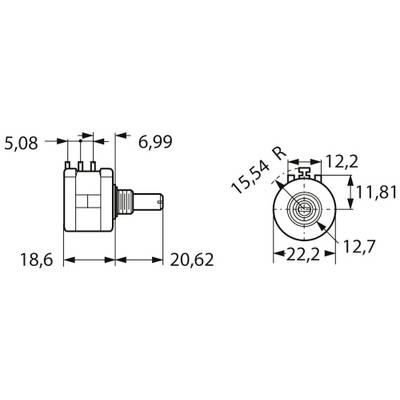

Stroke drawing/circuit diagram

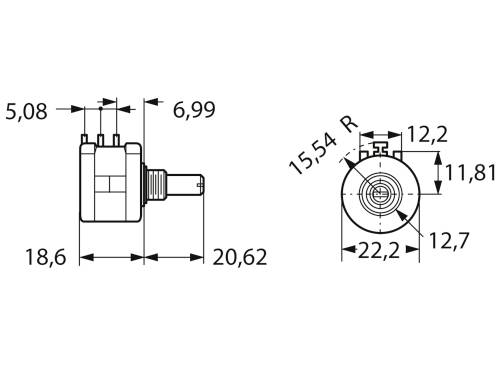

Stroke drawing/circuit diagram
Bourns 3590S-6-103L Precision potentiometer 10-pos 2 W 10 kΩ 1 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Precision potentiometer
Potentiometer features
10-pos
Resistance
10 kΩ
Resistance characteristic
linear
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 24.108
3
4% = € 1.05
€ 23.059
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 24.108 / piece)
€ 24.11
plus VAT.
Only 3 Piece(s) available
Highlights & Details
Precision potentiometer, 10 RPM, 10 kΩ, 2 W, linear, Solder lug, 3590S-6-103
- 10 kΩ
- linear
Technical specifications
- Packaging type
Piece
- Product type
Precision potentiometer
- Potentiometer features
10-pos
- Resistance
10 kΩ
- Resistance characteristic
linear
- Power rating
2 W
- Cut-off voltage
450 V
- Connection
Solder tag
- Mechanical angle
3600°
- Electrical angle
3600°
- Type
straight
- Axle type
Metal
- Axle Ø
6 mm
- Length
22 mm
- Width
18.6 mm
- Min. temperature
1 °C
- Max. temperature
125 °C
- Content
1 pc(s)
- Type
3590S-6-103L
- Dim
(L x W) 22 mm x 18.6 mm
- RoHS-compliant
Yes
- No. of rotations
10
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2996317 Bourns 3590S-6-103L Precision potentiometer 10-pos 2 W 10 kΩ 1 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 2996317 Bourns 3590S-6-103L Precision potentiometer 10-pos 2 W 10 kΩ 1 pc(s) Piece
Description
Wire wound potentiometer in 10 turn design type Bourns 3590S. Design: With central thread, linearity: ±0.25 %, load capacity: 2.0 W at +40 °C, 0 W at +125 °C, operating voltage: Max. 450 VAC, operating temperature: –40 up to +125 °C, temperature coefficient: ±50, resistor. -Tolerance: ±5.0%, test voltage: 1500 VAC Rotation angle: Electrical and mechanical 3600° (+10°/–0°). With metal axle Type 3590S-6. Mounting 9.0 x 7.94 mm Type 10K
This text is machine translated.
This text is machine translated.
Scope of delivery
- 3590S-6-103L.
