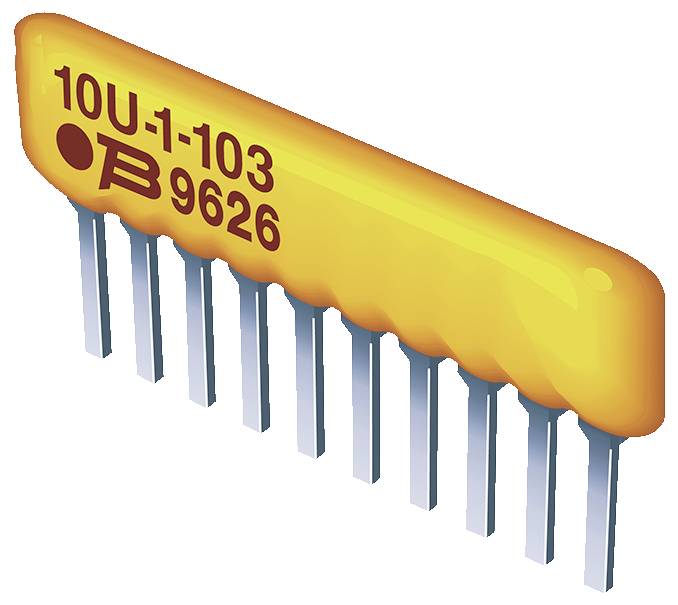

Bourns 4606X-101-223LF Resistor ladder 22 kΩ 0.2 W 1 pc(s)
Part number:
Item no:
Product type
Resistor ladder
Resistance
22 kΩ
Power rating
0.2 W
Tolerance ±
2 %
CS
2.54 mm
Datasheet (PDF)
Technical specifications
- ESD Packaging: No ESD
- 4600X series
- Delivery form: Loose
- Resistance tolerance: ±2 %
- Rated output: 0.2 W
- Max. OPERATING VOLTAGE (DC) 100 V DC
- Max. OPERATING VOLTAGE (AC) 100 V AC
- Nominal voltage: 100 V
- Breakdown voltage (RMS) 200 V
- Number of resistors: 5
- Number of pins: 6
- Product type
Resistor ladder
- Resistance
22 kΩ
- Power rating
0.2 W
- Tolerance ±
2 %
- CS
2.54 mm
- Length
15.2 mm
- Width
2.5 mm
- Height
5.1 mm
- Content
1 pc(s)
- Dim
(L x W x H) 15.2 x 2.5 x 5.1 mm
- Type
4606X-101-223LF
- Mounting type
PCB mount
- Operating temperature (max.)
125 °C
- Operating temperature (min.)
-55 °C
Documents & Downloads
Datasheet
Datasheet 3465784 Bourns 4606X-101-223LF Resistor ladder 22 kΩ 0.2 W 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3465784 Bourns 4606X-101-223LF Resistor ladder 22 kΩ 0.2 W 1 pc(s)
Description
Thick film resistor networks X series 0,
This text is machine translated.
This text is machine translated.
Features
- • Parallel connection of the individual resistors (Bussed)
- • Low profile is compatible with DIPs
- • Marking on a contrasting background
