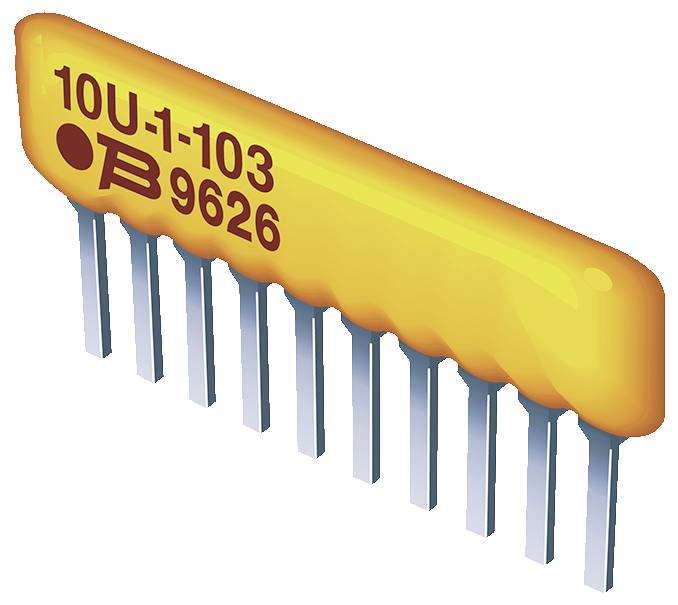

Bourns 4609X-101-473LF Resistor ladder 47 kΩ THT 1 pc(s)
Part number:
Item no:
Product type
Resistor ladder
Type
THT
Resistance
47 kΩ
Tolerance ±
2 %
CS
2.54 mm
Datasheet (PDF)
Technical specifications
- ESD Packaging: No ESD
- 4600X series
- Delivery form: Loose
- Resistance tolerance: ±2 %
- Rated output: 0.2 W
- Max. OPERATING VOLTAGE (DC) 100 V DC
- Max. OPERATING VOLTAGE (AC) 100 V AC
- Nominal voltage: 100 V
- Breakdown voltage (RMS) 200 V
- Number of resistors: 8
- Number of pins: 9
- Product type
Resistor ladder
- Type
THT
- Resistance
47 kΩ
- Tolerance ±
2 %
- CS
2.54 mm
- Length
22.8 mm
- Width
2.5 mm
- Height
5.1 mm
- Content
1 pc(s)
- Dim
(L x W x H) 22.8 x 2.5 x 5.1 mm
- Type
4609X-101-473LF
- Mounting type
PCB mount
- Operating temperature (max.)
125 °C
- Operating temperature (min.)
55 °C
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3465804 Bourns 4609X-101-473LF Resistor ladder 47 kΩ THT 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3465804 Bourns 4609X-101-473LF Resistor ladder 47 kΩ THT 1 pc(s)
Description
Thick film resistor networks X series 0,
This text is machine translated.
This text is machine translated.
Features
- • Parallel connection of the individual resistors (Bussed)
- • Low profile is compatible with DIPs
- • Marking on a contrasting background
