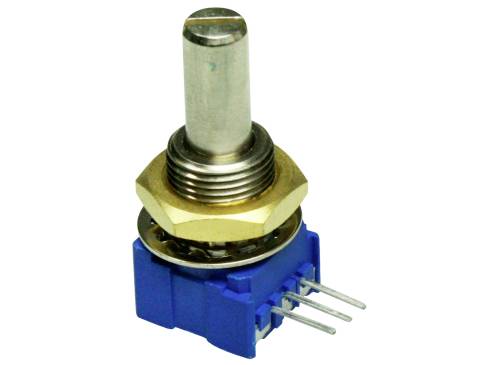

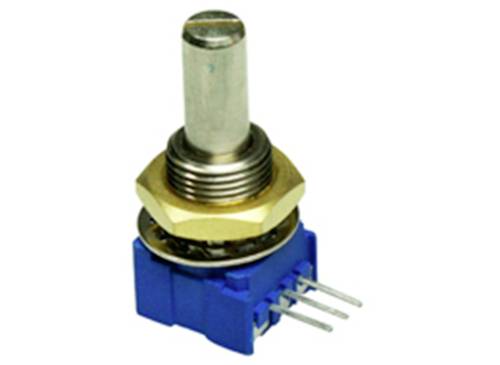

Bourns 51RAD-R22-B15L Plastic film pot 0.5 W 10 kΩ 1 pc(s)
EAN:
Part number:
Item no:
Product type
Plastic film pot
Resistance
10 kΩ
Resistance characteristic
linear
Power rating
0.5 W
Axle Ø
6 mm
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 10.361
3
6% = € 0.57
€ 9.788
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 10.361 / piece)
€ 10.36
plus VAT.
Only 2 Piece(s) available
Highlights & Details
Conductive plastic potentiometer, 10 kΩ, 0.5 W, linear, solder pin, 51RAD-R22-B15L
- 10 kΩ
- linear
Our service for you
Technical specifications
- Product type
Plastic film pot
- Resistance
10 kΩ
- Resistance characteristic
linear
- Power rating
0.5 W
- Connection
Solder pins
- Mechanical angle
290°
- Electrical angle
270°
- Type
angled
- Axle length
22 mm
- Axle Ø
6 mm
- Length
12.5 mm
- Width
13.5 mm
- (Ø)
6.0 mm
- Min. temperature
1 °C
- Max. temperature
125 °C
- Content
1 pc(s)
- Type
51RAD-R22-B15L

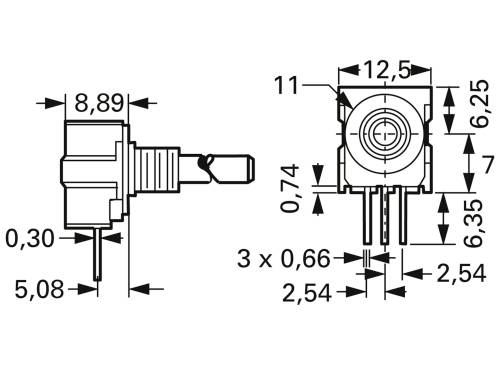

- Dim
(Ø x L) 6.0 mm x 12.5 mm
- RoHS-compliant
Yes
Documents & Downloads
Datasheet
Datasheet 2996370 Bourns 51RAD-R22-B15L Plastic film pot 0.5 W 10 kΩ 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2996370 Bourns 51RAD-R22-B15L Plastic film pot 0.5 W 10 kΩ 1 pc(s)
Description
Potentiometer Type Bourns Series 50. Design: Mod. 51 and 53, depending on type with solder pin or solder tag connections on the side, design: Linear, linearity: ±5.0 %, temperature range: +1.0 to +125 °C, test voltage: 1500 VAC, rotation angle: Electrical 270°, mechanical 290° (each ±5.0°). Conductive plastic potentiometer with solder pins. Resistance tolerance: ±20%, temperature coefficient: ±1000, power: 0.5 W. Technical features (type, resistance, shaft diameter, shaft length): 51RAD–R22–B15L, 10K, 6.0 mm, 22 mm
This text is machine translated.
This text is machine translated.
Scope of delivery
- 51RAD-R22-B15L.
