Bourns 91A1A-B28-B10L Plastic film pot Mono 1 W 1 kΩ 1 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Plastic film pot
Resistance
1 kΩ
Resistance characteristic
linear
Output
Mono
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 10.157
3
6% = € 0.56
€ 9.596
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 10.157 / piece)
€ 10.16
plus VAT.
14-day return policy included
Highlights & Details

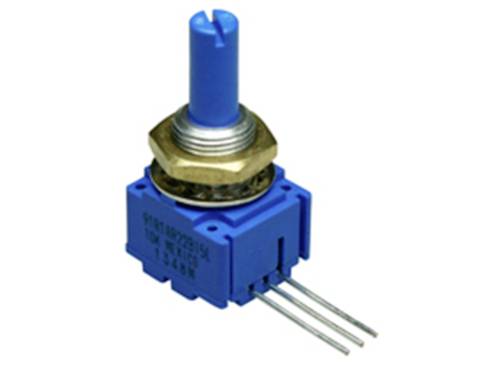

Conductive plastic potentiometer, 1 kΩ, 1 W, linear, solder pin, 91A1A-B28-B10L
- 1 kΩ
- linear
Technical specifications
- Packaging type
Piece
- Product type
Plastic film pot
- Resistance
1 kΩ
- Resistance characteristic
linear
- Output
Mono
- Power rating
1 W
- Connection
Solder pins
- Mechanical angle
300°
- Electrical angle
240°
- Type
angled
- Axle length
22.23 mm
- Axle type
Plastic
- Axle Ø
6.35 mm
- Length
15.88 mm
- Width
17.45 mm
- (Ø)
6.35 mm
- Min. temperature
-40 °C
- Max. temperature
125 °C
- Content
1 pc(s)
- Type
91A1A-B28-B10L

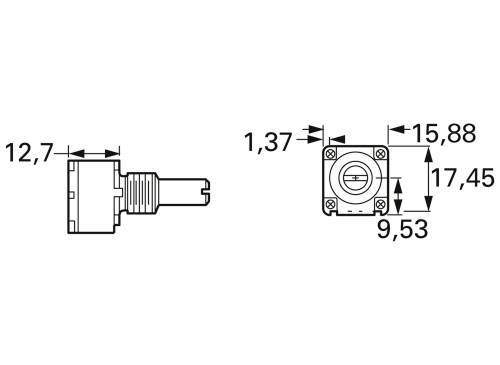

- Dim
(Ø x L) 6.35 mm x 15.88 mm
- RoHS-compliant
Yes
- No. of rotations
1
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2996383 Bourns 91A1A-B28-B10L Plastic film pot Mono 1 W 1 kΩ 1 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 2996383 Bourns 91A1A-B28-B10L Plastic film pot Mono 1 W 1 kΩ 1 pc(s) Piece
Description
Conductive plastic potentiometer Bourns Series 91. For 1 revolution; linearity: ±5.0 %, operating voltage: Max. 350 VAC (depending on load). Temperature range -40°C to 125°C, test voltage 1500 VAC Conductive plastic potentiometer as linear single potentiometer with solder pins. Rotation angle: Electronic 240°, mechanical 300°, resistance tolerance: ±20 %, capacity: 1.0 W. Technical features (type, resistance value, shaft diameter, shaft length, shank material): 91A1A-B28-B10L, 1K0, 6.35 mm, 22.23 mm, plastic
This text is machine translated.
This text is machine translated.
Scope of delivery
- 91A1A-B28-B10L.
