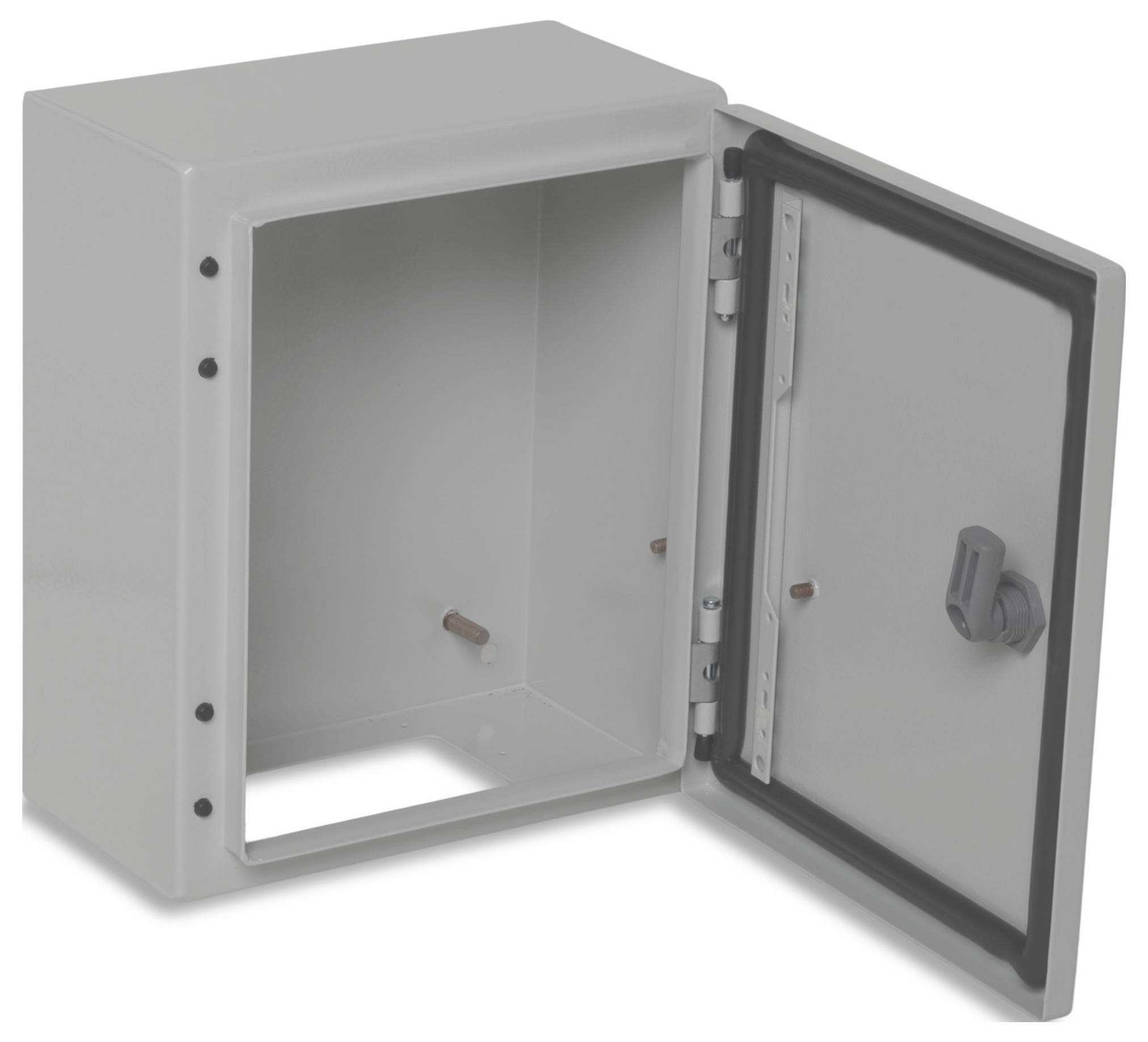

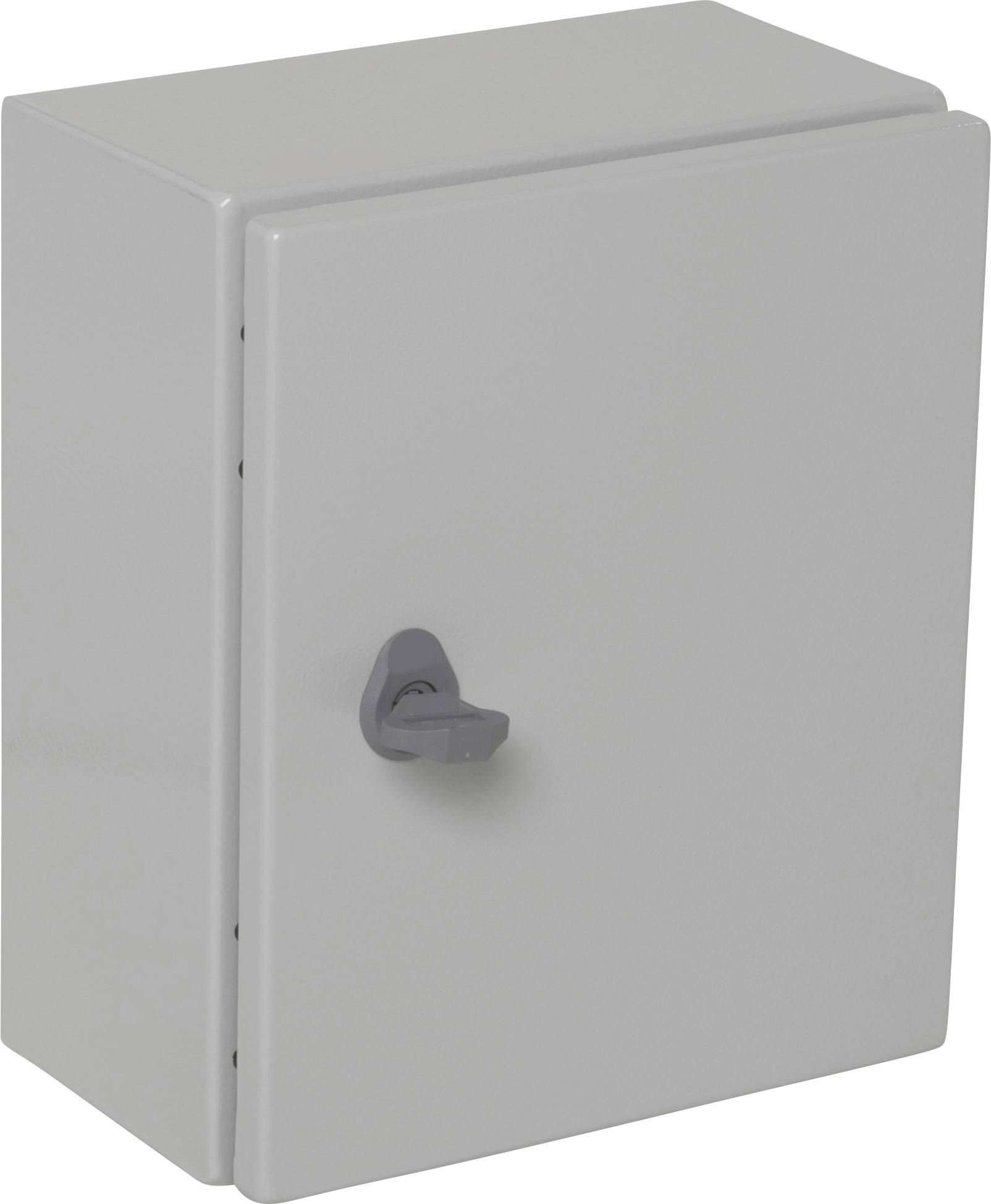

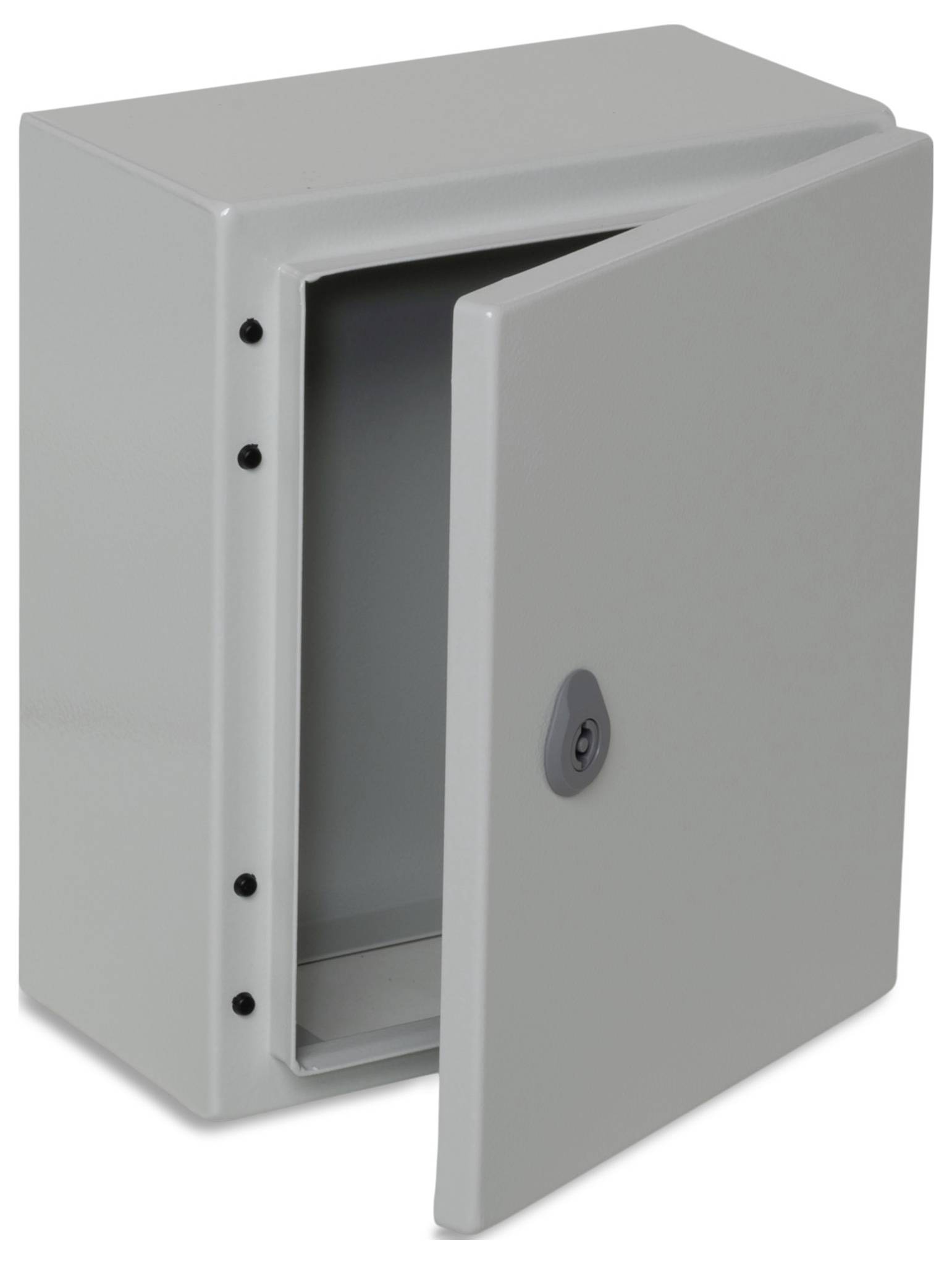

Boxexpert Treva grau 300250150 Wall-mount enclosure 250 x 300 x 150 x 150 Steel plate Light grey 1 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Wall-mount enclosure
Material
Steel plate
IP rating
IP66
Width
300 mm
Datasheet (PDF)
Technical specifications
- Colour RAL 7035
- Coating: Polyester paint coating
- Material: Cover / door: Steel plate
- Material: Lower part: Steel sheet
- Resistance: Alkaline, oils, salts, etc.
- Cover - transparent: No.
- Inner dimensions (mm): 254 x 204 x 129
- UL approval: No.
- Impact strength: IK10
- Packaging type
Piece
- Product type
Wall-mount enclosure
- Features
pre-punched
- Material
Steel plate
IP66
- Factory colour
Light grey
- Length
250 mm
- Width
300 mm
- Height (min.)
300 mm
- Height
150 mm
- Weight
4.65 kg
- Content
1 pc(s)
- Type
Treva grau 300250150
- Dim
(L x W x H) 250 x 300 x 150 mm
- RoHS-compliant
Yes
- Manufacturer part #
BXPIMB302515-T01
- Depth
150 mm
- Halogen-free
Yes
- Max. ambient temperature
60 °C
- Min. ambient temperature
-25 °C
Documents & Downloads
Datasheet
Datasheet 3404548 Boxexpert Treva grau 300250150 Wall-mount enclosure 250 x 300 x 150 x 150 Steel plate Light grey 1 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 3404548 Boxexpert Treva grau 300250150 Wall-mount enclosure 250 x 300 x 150 x 150 Steel plate Light grey 1 pc(s) Piece
Description

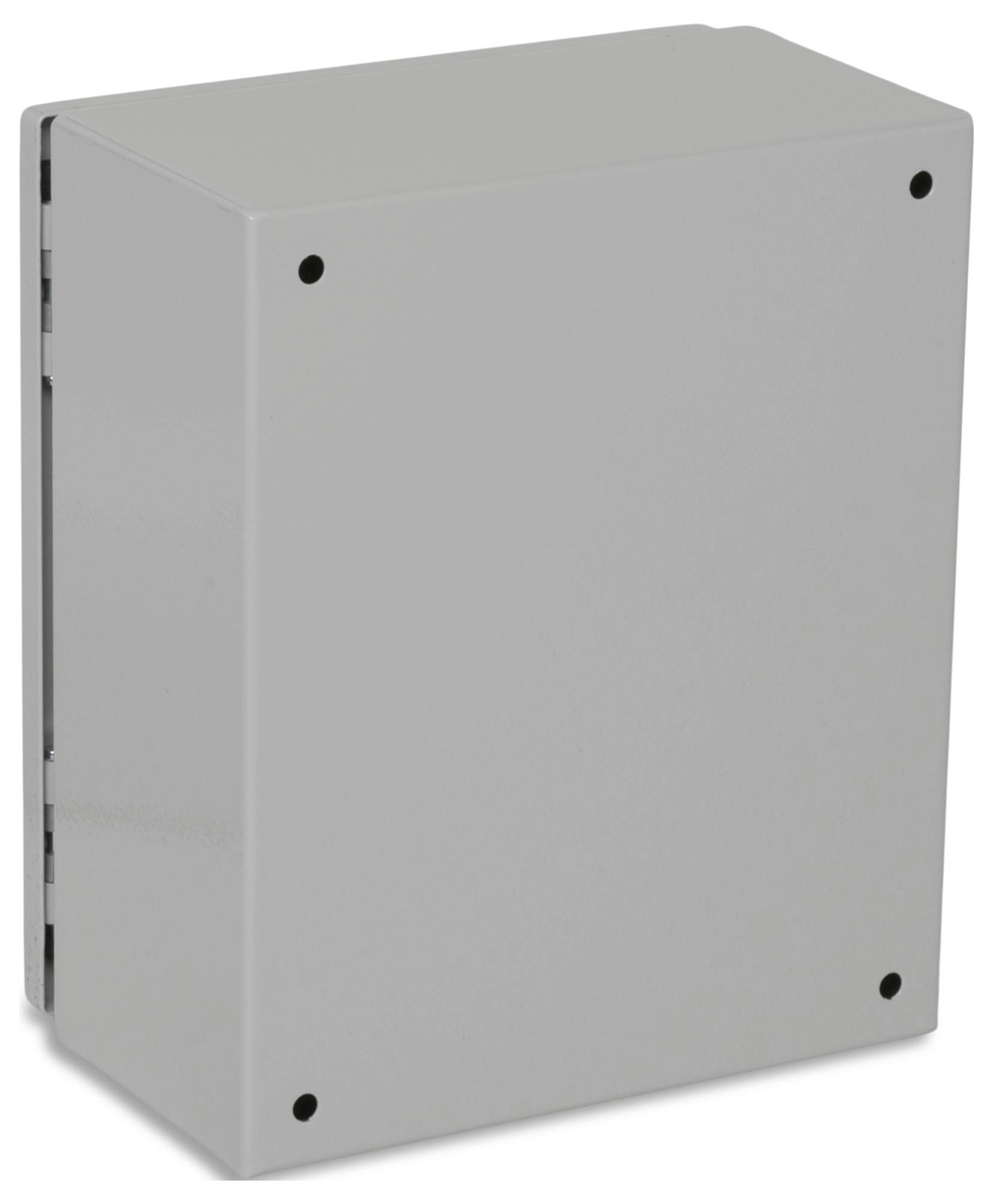

With the Treva series, BOXEXPERT presents a high-quality and affordable wall cabinet made of steel sheets. The resistant polyester paint coating with UV protection makes it Ideal for outdoor areas. It has four pre-punched holes and a smooth mounting plate for secure mounting of components for easy installation. The series offers high flexibility and adapts to individual installation specifications. Typical applications are energy distribution and conversion in industry.
This text is machine translated.
This text is machine translated.
Scope of delivery
- Lower part of switching cabinet
- Door
- Mounting plate (galvanized steel plate 2 mm)
- Keys
- 4 sealing plugs
- Set of nuts and washers
- Drain plug
- Cable gland cover with mounting screws
- Installation manual
