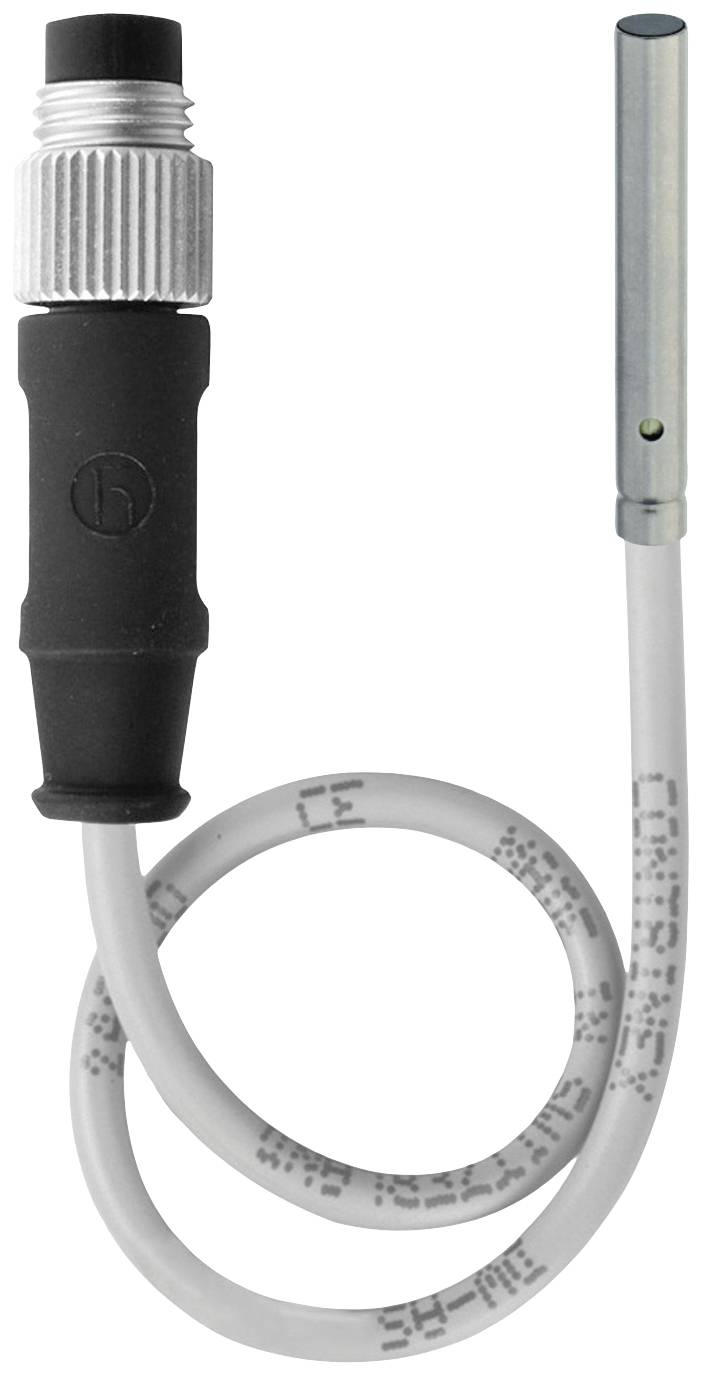

Contrinex Sensor Inductive 3 mm shielded PNP DW-AV-623-03-282
EAN:
Part number:
Item no:
Product type
Sensor
Max. operating voltage
30 V
Outputs
PNP
Switching distance (max.)
1 mm
Model
Inductive
Datasheet (PDF)
Number
Total (€ 92.43 / piece)
€ 92.43
plus VAT.
Technical specifications
- Product type
Sensor
- Type
DW-AV-623-03-282
- Min. operating voltage
10 V
- Max. operating voltage
30 V
- Operating voltage
10 - 30 V
- Outputs
PNP
- Cable length
0.5 m
- Switching distance (max.)
1 mm
- Switching frequency
3000 Hz
- Model
Inductive
- Connector
M8 (3-pin)
- Installation type
shielded
- Size
3 mm
- Enclosure material
Stainless steel V2A
- Contact type
1 maker
IP67
- Min. temperature
-25 °C
- Max. temperature
+70 °C
- Height
22 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2875543 Contrinex Sensor Inductive 3 mm shielded PNP DW-AV-623-03-282
User & Safety Instructions
User & Safety Instructions 2875543 Contrinex Sensor Inductive 3 mm shielded PNP DW-AV-623-03-282
Description
Inductive sensor DW-AV-623-03-282 IC610
