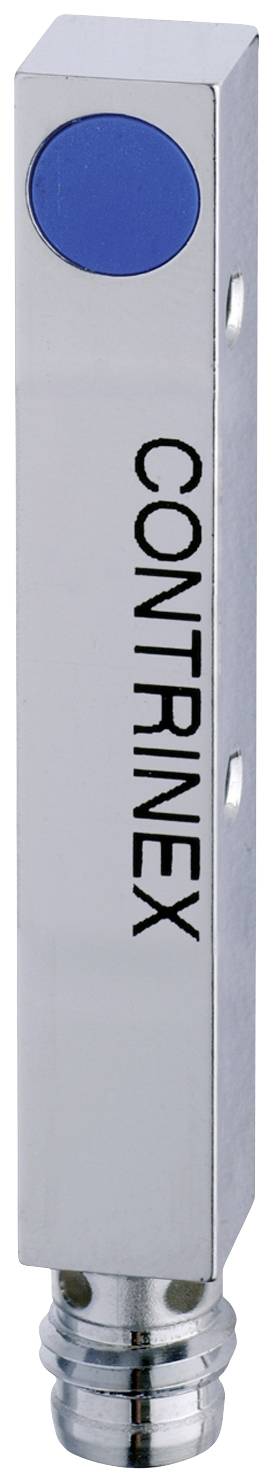

Contrinex Sensor Inductive 8 x 8 mm quasi-shielded PNP DW-AS-503-C8
EAN:
Part number:
Item no:
Product type
Sensor
Max. operating voltage
30 V
Outputs
PNP
Switching distance (max.)
3 mm
Model
Inductive
Datasheet (PDF)
Number
Total (€ 73.94 / piece)
€ 73.94
plus VAT.
14-day return policy included
Technical specifications
- Product type
Sensor
- Type
DW-AS-503-C8
- Min. operating voltage
10 V
- Max. operating voltage
30 V
- Operating voltage
10 - 30 V
- Outputs
PNP
- Switching distance (max.)
3 mm
- Switching frequency
1000 Hz
- Model
Inductive
- Connector
M8 (3-pin)
- Installation type
quasi-shielded
- Size
8 x 8 mm
- Enclosure material
Brass
- Contact type
1 maker
IP67
- Min. temperature
-25 °C
- Max. temperature
+70 °C
- Height
59 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2875459 Contrinex Sensor Inductive 8 x 8 mm quasi-shielded PNP DW-AS-503-C8
User & Safety Instructions
User & Safety Instructions 2875459 Contrinex Sensor Inductive 8 x 8 mm quasi-shielded PNP DW-AS-503-C8
Description
Inductive sensor DW-AS-503-C8 IC510
