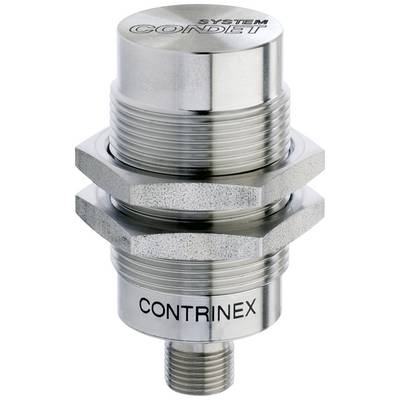

Contrinex Sensor Inductive M30 non-shielded PNP DW-AS-713-M30-002
EAN:
Part number:
Item no:
Product type
Sensor
Max. operating voltage
30 V
Outputs
PNP
Switching distance (max.)
40 mm
Model
Inductive
Datasheet (PDF)
Number
Total (€ 100.83 / piece)
€ 100.83
plus VAT.
14-day return policy included
Technical specifications
- Product type
Sensor
- Type
DW-AS-713-M30-002
- Min. operating voltage
10 V
- Max. operating voltage
30 V
- Operating voltage
10 - 30 V
- Outputs
PNP
- Switching distance (max.)
40 mm
- Switching frequency
90 Hz
- Model
Inductive
- Connector
M12 (4-pin)
- Installation type
non-shielded
- Size
M30
- Enclosure material
Stainless steel V2A
- Contact type
1 maker
IP67/IP69K
- Min. temperature
-25 °C
- Max. temperature
+85 °C
- Height
63.5 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2875513 Contrinex Sensor Inductive M30 non-shielded PNP DW-AS-713-M30-002
User & Safety Instructions
User & Safety Instructions 2875513 Contrinex Sensor Inductive M30 non-shielded PNP DW-AS-713-M30-002
Description
Inductive sensor DW-AS-713-M30-002 IC720
