Buy DSS55E+USBA+C-am Eltako Socket Flush mount, Screw fastening

Datasheet (PDF)

Dispatches on Wed, 8 Jul

15 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 41.17 / piece)

€ 41.17

plus VAT.

Report legal concerns

Technical specifications

Design of surface: Matt

Product type: Socket

Series: Eltako

Dim: (W x H x D) 80 x 80 x 45 mm

Operating voltage: 230 V

Mounting type: Flush mount
Screw fastening

Width: 80 mm

Height: 80 mm

Depth: 45 mm

Hub: Not required, optional for remote access

Factory colour: Anthracite

Nominal current: 16 A

Nominal voltage: 230 V

Switch type function: PG socket

Switch type component: Insert

: 16 A

: 230 V

: Flush mounted (plaster)

: Anthracite

: Other

: TRUE

: 1

: FALSE

: FALSE

: Screwed terminal

: Untreated

: FALSE

: 1

: TRUE

: 50-50 Hz

: FALSE

: 1

: TRUE

: FALSE

: FALSE

: Thermoplastic

: FALSE

: FALSE

: FALSE

: No special power supply

: TRUE

: Plastic

: Mounting with screw

: Other

: 7016

: FALSE

: Matt

: FALSE

: TRUE

: 80 mm

: 80 mm

: 45 mm

: FALSE

: FALSE

: TRUE

: FALSE

: 2

: 0

: FALSE

: 38 mm

: FALSE

: FALSE

: FALSE

: FALSE

: Anthracite

: AC

: 2.8 A

: 1

: Earthing clips

: FALSE

: FALSE

Documents & Downloads

Datasheet

Datasheet 2637049 DSS55E+USBA+C-am Eltako Socket Flush mount, Screw fastening

User & Safety Instructions

User & Safety Instructions 2637049 DSS55E+USBA+C-am Eltako Socket Flush mount, Screw fastening

Description

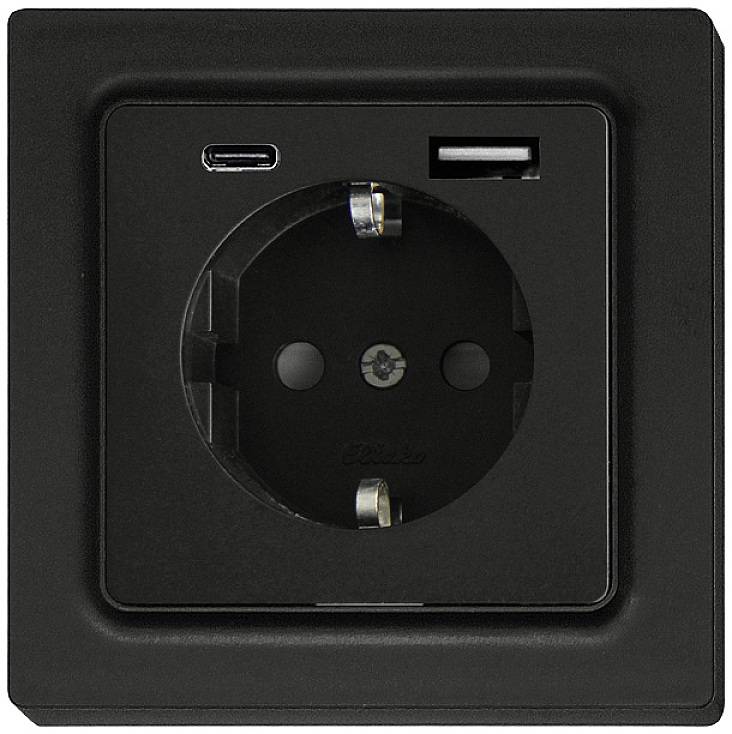

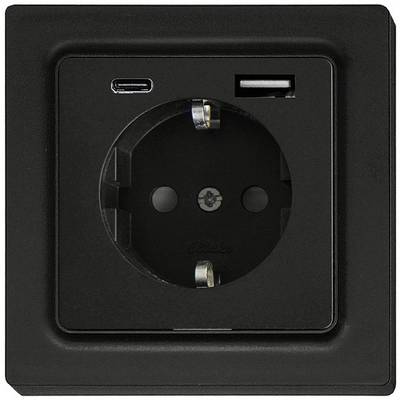

German earthing contact socket DSS with socket top and USB adapter in E-Design55, 80x80mm outer, frame inner dimensions 55x55mm. Anthracite matt. With increased protection against accidental contact. The lower section of the socket has screw terminals. Installation depth 38mm. Integrated USB power supply 5V DC/2.8A with short-circuit and overload protection. Intelligent parallel use of both the USB-connections.

This text is machine translated.
