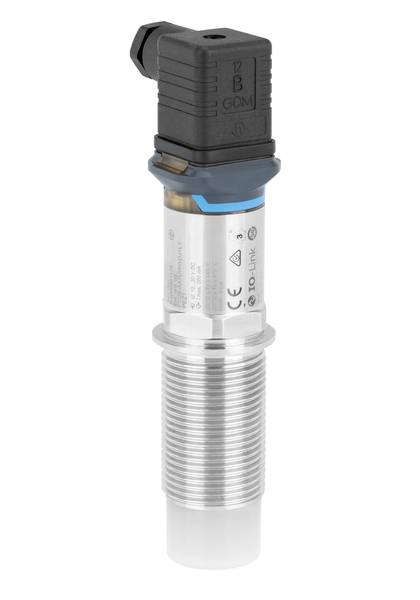

Endress+Hauser Level sensor Capacitive FTI26 FTI26-CA4MWDG PNP
EAN:
Part number:
Item no:
Product type
Level sensor
Max. operating voltage
30 V DC
Contact type
1 PNP
Outputs
PNP
Model
Capacitive
Number
Total (€ 172.26 / piece)
€ 172.26
plus VAT.
14-day return policy included
Highlights & Details
Nivektor FTI26 FTI26-CA4MWDG 12-30VDC; 3-conductor PNP thread ISO228 G1, plastic
- Approval: CSA C/US General Purpose
- Power supply; output: 12-30VDC; 3-wire PNP
- Electrical connection: Connector M12, IP65/67 NEMA type 4X Encl.
- Process connection: Thread ISO228 G1, plastic
Technical specifications
- Product type
Level sensor
- Type
FTI26
- Min. operating voltage
12 V DC
- Max. operating voltage
30 V DC
- Operating voltage
12 - 30 V DC
- Contact type
1 PNP
- Outputs
PNP
- Enclosure material
Polycarbonate (PC)
- Model
Capacitive
IP65
IP67
- Content
1 pc(s)
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2988525 Endress+Hauser Level sensor Capacitive FTI26 FTI26-CA4MWDG PNP
User & Safety Instructions 2988525 Endress+Hauser Level sensor Capacitive FTI26 FTI26-CA4MWDG PNP
Description
The FTI26 is a limit switch for powdery or granular bulk materials in the food and other industries. The capacitive device offers a high sensitivity and construction performance. Thanks to the compact design, installation is also possible even with restricted access. The optional IO-Link capability enables a simple parameter setting.
This text is machine translated.
This text is machine translated.
Features
- Easy installation even in confined spaces or restricted access thanks to compact design
- Fulfillment of all relevant hygiene requirements (3-A, EHEDG, FDA, EG1935/2004)
- Individual adjustment to any Medium is not necessary
- Industry 4.0 ready with IO-Link communication
