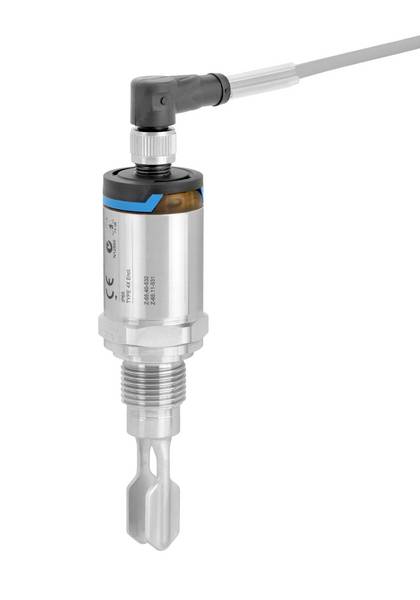

Endress+Hauser Vibronic level gauge Capacitive FTL31 FTL31-AA1U2BAWSJ Two-wire
EAN:
Part number:
Item no:
Product type
Vibronic level gauge
Max. operating voltage
253 V DC
253 V AC
Outputs
Two-wire
Model
Capacitive
Connector
ISO 4400 square connector
Number
Total (€ 231.09 / piece)
€ 231.09
plus VAT.
14-day return policy included
Highlights & Details
Liquiphant FTL31/33 FTL31-AA1U2BAWSJ 20-253VAC/DC; 2-conductor thread ISO228 G1, 316L, installation > accessories welding adapter ISO4400 M16 square connector
- Approval: Ex-free range
- Power supply; Output: 20-253VAC/DC; 2-wire
- Electrical connection: ISO4400 M16 solenoid connector, IP65 NEMA type 4X Encl.
- Sensor design: Max. Process temperature 100oC/212oF
- Sensor type: Short-pipe version 316L Ra<3.2um/126uin
- Process connection: Thread ISO228 G1, 316L, mounting > accessories welded adapter
Technical specifications
- Product type
Vibronic level gauge
- Type
FTL31
- Min. operating voltage
20 V DC
20 V AC
- Max. operating voltage
253 V DC
253 V AC
- Operating voltage
20, 20 - 253, 253 V DC, V AC
- Outputs
Two-wire
- Enclosure material
Stainless steel
- Model
Capacitive
- Material properties
rust-proof
- Connector
ISO 4400 square connector
- Min. temperature
-40.0 °C
- Max. temperature
70.0 °C
IP65
- Content
1 pc(s)
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2988558 Endress+Hauser Vibronic level gauge Capacitive FTL31 FTL31-AA1U2BAWSJ Two-wire
User & Safety Instructions 2988558 Endress+Hauser Vibronic level gauge Capacitive FTL31 FTL31-AA1U2BAWSJ Two-wire
Description
The Liquiphant FTL31 is a vibrato limit switch for liquids. The device is used for overfill protection or as dry-run protection for pumps in cleaning systems. The measurement is not influenced by conductivity, deposits, turbulence, flow or air bubbles and requires no calibration. The optional IO-Link capability enables a simple and time-saving configuration.
This text is machine translated.
This text is machine translated.
Features
- The FTL31 operates in areas where other measurement principles are not suitable due to conductivity, adhesion, turbulence, flow conditions or air bubbles
- The smallest vibration sensor on the market
