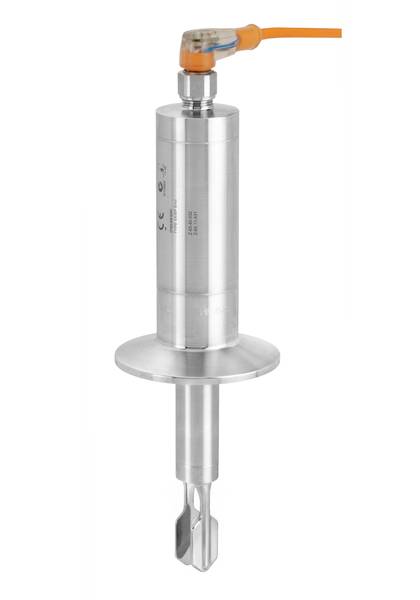

Endress+Hauser Vibronic level gauge Capacitive FTL33 FTL33-AA4M3AB3EJ PNP
EAN:
Part number:
Item no:
Product type
Vibronic level gauge
Max. operating voltage
30 V DC
Contact type
1 PNP
Outputs
PNP
Model
Capacitive
Number
Total (€ 331.93 / piece)
€ 331.93
plus VAT.
14-day return policy included
Highlights & Details
Vibron limit switch Liquipant FTL31/33 FTL33-AA4M3AB3EJ 10-30VDC; 3-conductor PNP plug M12, IP65/67 NEMA type 4X ENCL.
- Approval: Ex-free range
- Power supply; output: 10-30VDC; 3-wire PNP
- Electrical connection: Connector M12, IP65/67 NEMA type 4X Encl.
- Sensor design: Max. Process temperature 150oC/302oF
- Sensor type: Compact version 316L Ra<1.5um/59uin
- Process connection: Tri-Clamp ISO2852 DN40-51 (2"), 316L, DIN32676 DN50
Technical specifications
- Product type
Vibronic level gauge
- Type
FTL33
- Min. operating voltage
10 V DC
- Max. operating voltage
30 V DC
- Operating voltage
10 - 30 V DC
- Contact type
1 PNP
- Outputs
PNP
- Enclosure material
Non-corrosive steel
- Model
Capacitive
- Features
LED indicator
- Min. temperature
-40.0 °C
- Max. temperature
70.0 °C
IP65
IP67
- Content
1 pc(s)
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2988578 Endress+Hauser Vibronic level gauge Capacitive FTL33 FTL33-AA4M3AB3EJ PNP
User & Safety Instructions 2988578 Endress+Hauser Vibronic level gauge Capacitive FTL33 FTL33-AA4M3AB3EJ PNP
Description
The Liquiphant FTL33 is a vibrato limit switch for liquids in hygienic applications. The FTL33 has been specially developed for applications in the food and beverage industry and is used for over-fill protection or as dry-run protection for pumps. The measurement is not influenced by conductivity, deposits, turbulence, flow or air bubbles and requires no calibration. The IO-Link capability enables a simple and time-saving configuration.
This text is machine translated.
This text is machine translated.
Features
- The FTL31 operates in areas where other measurement principles are not suitable due to conductivity, adhesion, turbulence, flow conditions or air bubbles are not suitable. FTL33 is recommended for hygienic applications
- The smallest vibration sensor on the market
