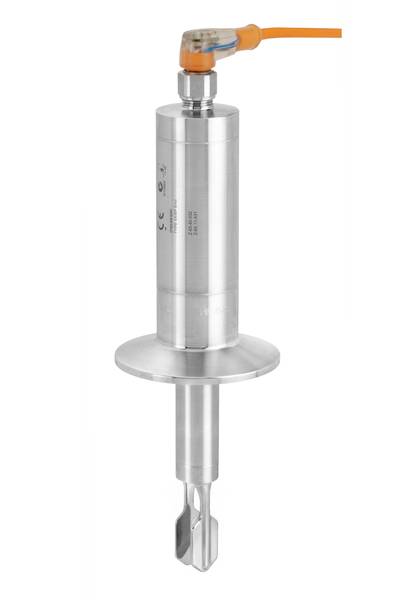

Endress+Hauser Vibronic level gauge Capacitive FTL33 FTL33-AA4U2ABW5J PNP
EAN:
Part number:
Item no:
Product type
Vibronic level gauge
Max. operating voltage
30 V DC
Contact type
1 PNP
Outputs
PNP
Model
Capacitive
Number
Total (€ 251.26 / piece)
€ 251.26
plus VAT.
14-day return policy included
Highlights & Details
Vibron limit switch Liquiphant FTL31/33 FTL33-AA4U2ABW5J 10-30VDC; 3-conductor PNP solenoid connector ISO4400 M16, IP65 NEMA type 4X ENCL.
- Approval: Ex-free range
- Power supply; output: 10-30VDC; 3-wire PNP
- Electrical connection: ISO4400 M16 solenoid connector, IP65 NEMA type 4X Encl.
- Sensor design: Max. Process temperature 100oC/212oF
- Sensor type: Compact version 316L Ra<1.5um/59uin
- Process connection: Thread ISO228 G3/4, 316L, mounting > accessories welded adapter
Technical specifications
- Product type
Vibronic level gauge
- Type
FTL33
- Min. operating voltage
10 V DC
- Max. operating voltage
30 V DC
- Operating voltage
10 - 30 V DC
- Contact type
1 PNP
- Outputs
PNP
- Enclosure material
Stainless steel V4A
- Model
Capacitive
- Connector
ISO 4400 square connector
- Min. temperature
-40.0 °C
- Max. temperature
70.0 °C
IP65
- Content
1 pc(s)
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2988579 Endress+Hauser Vibronic level gauge Capacitive FTL33 FTL33-AA4U2ABW5J PNP
User & Safety Instructions 2988579 Endress+Hauser Vibronic level gauge Capacitive FTL33 FTL33-AA4U2ABW5J PNP
Description
The Liquiphant FTL33 is a vibrato limit switch for liquids in hygienic applications. The FTL33 has been specially developed for applications in the food and beverage industry and is used for over-fill protection or as dry-run protection for pumps. The measurement is not influenced by conductivity, deposits, turbulence, flow or air bubbles and requires no calibration. The IO-Link capability enables a simple and time-saving configuration.
This text is machine translated.
This text is machine translated.
Features
- The FTL31 operates in areas where other measurement principles are not suitable due to conductivity, adhesion, turbulence, flow conditions or air bubbles are not suitable. FTL33 is recommended for hygienic applications
- The smallest vibration sensor on the market
