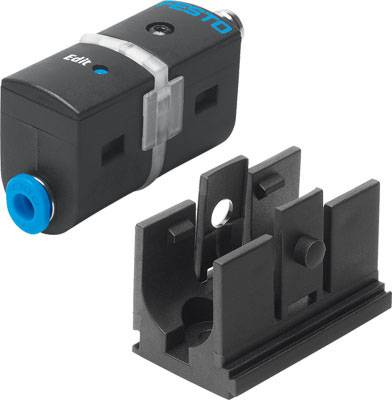

FESTO Pressure sensor Inductive SDE5-D10-O-Q6-N-M8 567473 M8 NPN
EAN:
Part number:
Item no:
Product type
Pressure sensor
Max. operating voltage
30 V DC
Outputs
NPN
Model
Inductive
Type
SDE5-D10-O-Q6-N-M8
Datasheet (PDF)
Number
Total (€ 92.43 / piece)
€ 92.43
plus VAT.
14-day return policy included
Highlights & Details
Pressure sensor SDE5-D 10-O-Q6-N-M8
Technical specifications
- Product weight: 19 g
- Max. output current 100 mA
- Electrical connection: Plug, round design, M8 x 1, 3-pin
- Mounting type: with accessories
- Corrosion resistance class KBK: 2-moderate corrosion stress
- Product type
Pressure sensor
- Type
SDE5-D10-O-Q6-N-M8
- Min. operating voltage
15 V DC
- Max. operating voltage
30 V DC
- Operating voltage
15 - 30 V DC
- Outputs
NPN
- Enclosure material
PA
POM
- Model
Inductive
- Material properties
anti-corrosive
- Size
M8
- Min. temperature
0 °C
- Max. temperature
+50 °C
IP40
- Content
1 pc(s)
- Operating medium
According to ISO 8573-1:2010 compressed air [7:4:4]
Documents & Downloads
Datasheet
Datasheet 1937420 FESTO Pressure sensor Inductive SDE5-D10-O-Q6-N-M8 567473 M8 NPN
User & Safety Instructions
User & Safety Instructions 1937420 FESTO Pressure sensor Inductive SDE5-D10-O-Q6-N-M8 567473 M8 NPN
Description
Pressure sensor SDE5-D 10-O-Q6-N-M8 with plug type M8. Approval = (* RCM mark, * C UL US recognized (oil)), CE mark (see declaration of conformity) = after EU EMC Directive, material note = RoHS compliant, measurement size = relative pressure, measuring method = piezoresistive pressure sensor
