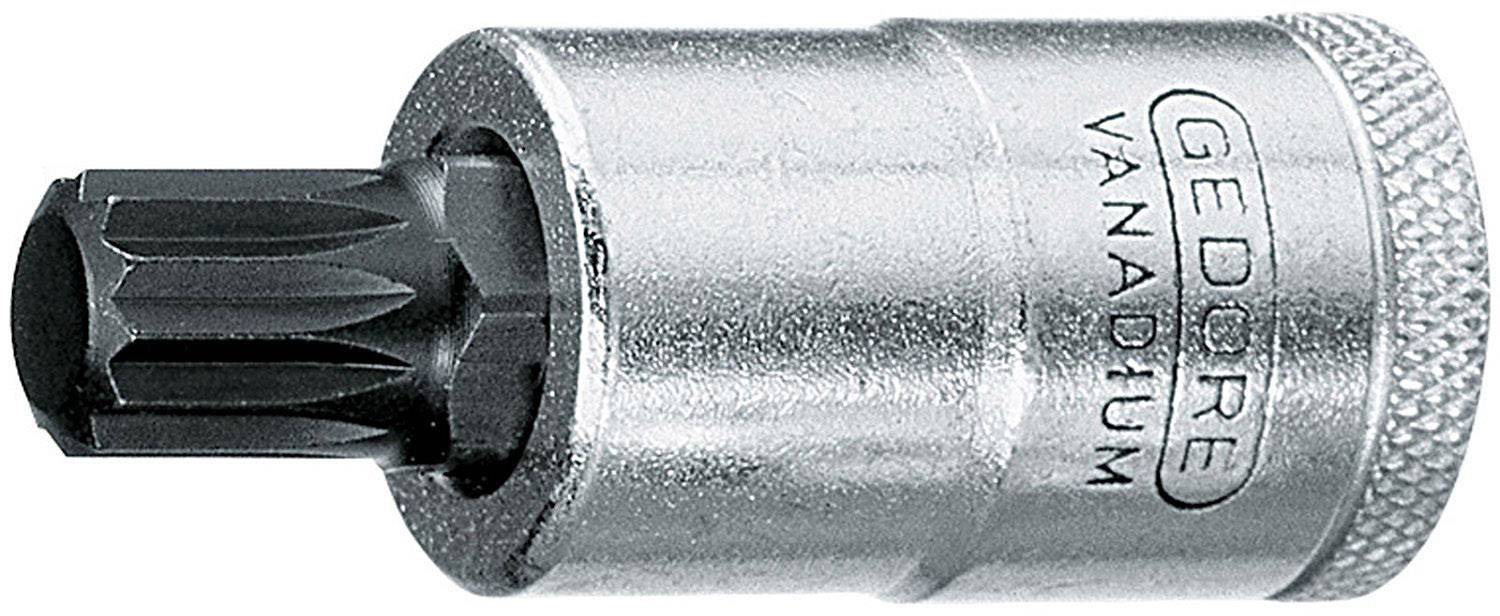

Gedore INX 19 18 2950952 XZN socket Screwdriver bit Ball head handle 18 mm 1/2" M18 1/2" (12.5 mm)
EAN:
Part number:
Item no:
Number
Total (€ 19.32 / piece)
€ 19.32
plus VAT.
14-day return policy included
Technical specifications
- Diameter: 24.7 mm, Tip length 20 mm
- Design according to DIN 2324
- Inner square drive according to DIN 3120-C 12.5, ISO 1174, with ball-catcher groove
- Manually operated, with handy cross edge
- Chrome-plated
- With inserted pin from GEDORE vanadium special steel, manganese-phosphated.
- Tip according to DIN 2325
- Product type
Screwdriver bit
- Drive
1/2" (12.5 mm)
- Spanner size
18 mm
- Ratchet bits (inch)
1/2"
- Size
M18
- Downforce
XZN socket
- Length
60 mm
- Max. length
60 mm
- Material
Special steel
- Material properties
chrome plated
- DIN standard
DIN 2324
- Width
24.7 mm
- Weight
150 g
- Screwdriver features
Ball head handle
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1903769 Gedore INX 19 18 2950952 XZN socket Screwdriver bit Ball head handle 18 mm 1/2" M18 1/2" (12.5 mm)
Information
Information 1903769 Gedore INX 19 18 2950952 XZN socket Screwdriver bit Ball head handle 18 mm 1/2" M18 1/2" (12.5 mm)
Information 1903769 Gedore INX 19 18 2950952 XZN socket Screwdriver bit Ball head handle 18 mm 1/2" M18 1/2" (12.5 mm)
Description
Features
- Acc. to DIN 2324
- Square drive as per DIN 3120 - C 12.5, ISO 1174, with ball retaining groove
- Hand-operated, knurled grip
- Chrome-plated
- With pressed-in pin in GEDORE vanadium special steel, manganese-phosphated
- Tip as per DIN 2325
