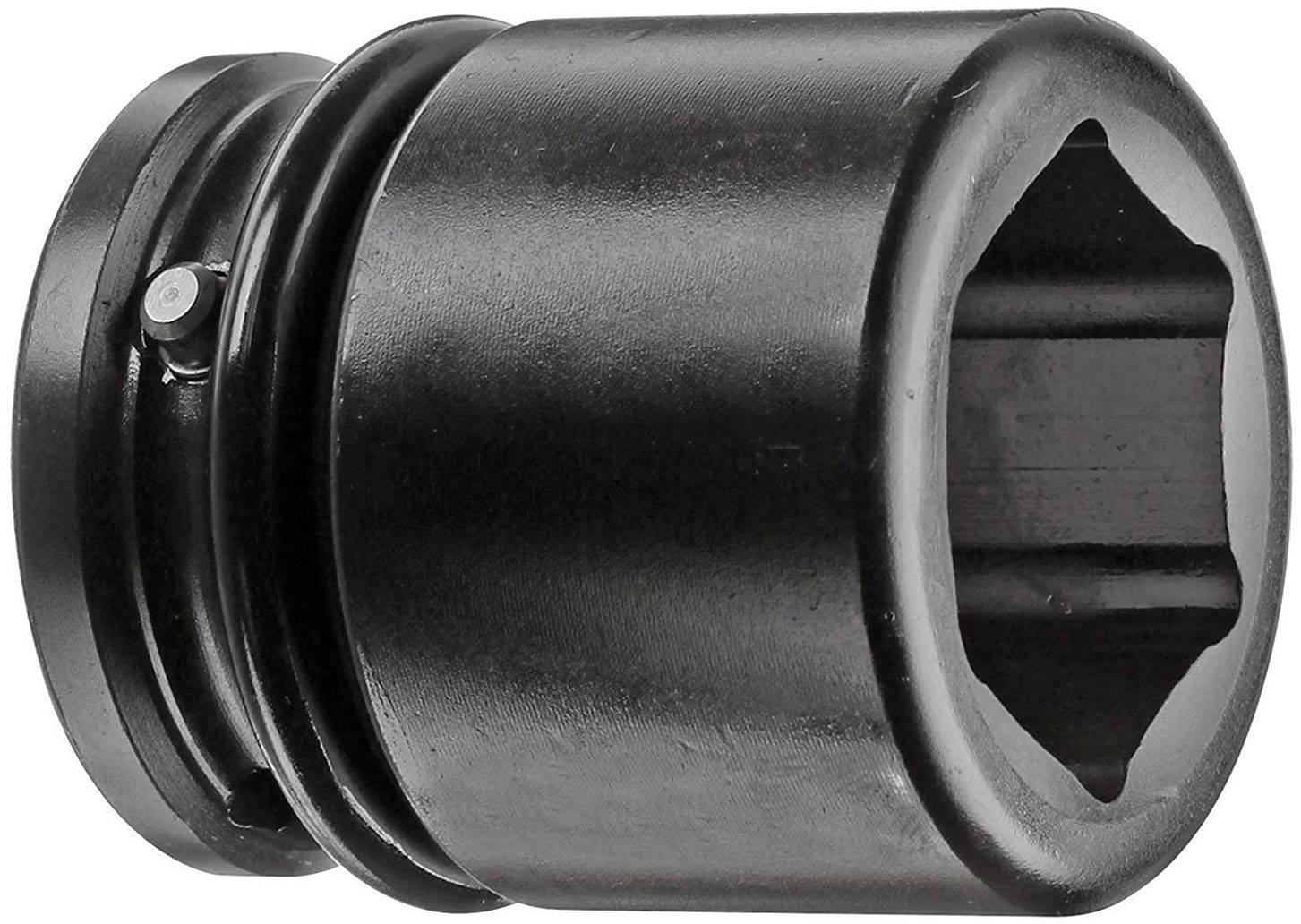

Gedore K 32 S 22 2734176 Square, solid, 20 mm (3/4") Kraft bit 22 mm 3/4" 22 mm 3/4" (20 mm)
EAN:
Part number:
Item no:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 21.84
3
4% = € 0.95
€ 20.89
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 21.84 / piece)
€ 21.84
plus VAT.
Only 6 Piece(s) available
Technical specifications
- Diameter 1:37.4 mm, diameter 2:44 mm
- DIN 3129, ISO 2725-2
- The machine is operated, suitable for all common compressed air and electric screwdriver
- Inner square drive according to DIN 3121-H20, ISO 1174
- GEDORE Vanadium Steel 59 CrV 4, burnished.
- DBGM (German Federal utility model)
- Especially for working in sensitive areas, ideal where Verliersicherheit, process reliability and safety permanent are present
- Examples: Free Leitungsbau, wind power plants or in the automotive sector
- Product type
Kraft bit
- Drive
3/4" (20 mm)
- Spanner size
22 mm
- Ratchet bits (inch)
3/4"
- Size
22 mm
- Downforce
Square, solid, 20 mm (3/4")
- Length
46 mm
- Max. length
46 mm
- Material
Chromium-vanadium steel
- Material properties
burnished
- DIN standard
DIN 3129
- Width
44.0 mm
- Weight
400 g
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1905530 Gedore K 32 S 22 2734176 Square, solid, 20 mm (3/4") Kraft bit 22 mm 3/4" 22 mm 3/4" (20 mm)
Information
Information 1905530 Gedore K 32 S 22 2734176 Square, solid, 20 mm (3/4") Kraft bit 22 mm 3/4" 22 mm 3/4" (20 mm)
Description
Features
- Acc. to DIN 3129, ISO 2725-2
- Machine-operated, suitable for all standard electric and air tools
- Square drive as per DIN 3121 - H 20, ISO 1174
- GEDORE vanadium steel 59CrV4
- Gun-metal finish
- DBGM (German utility patent)
- Particularly suitable for working in sensitive areas permanently governed by certainty against loss, process reliability and occupational safety
- Examples: overhead power line construction, wind power plants or the automotive sector
