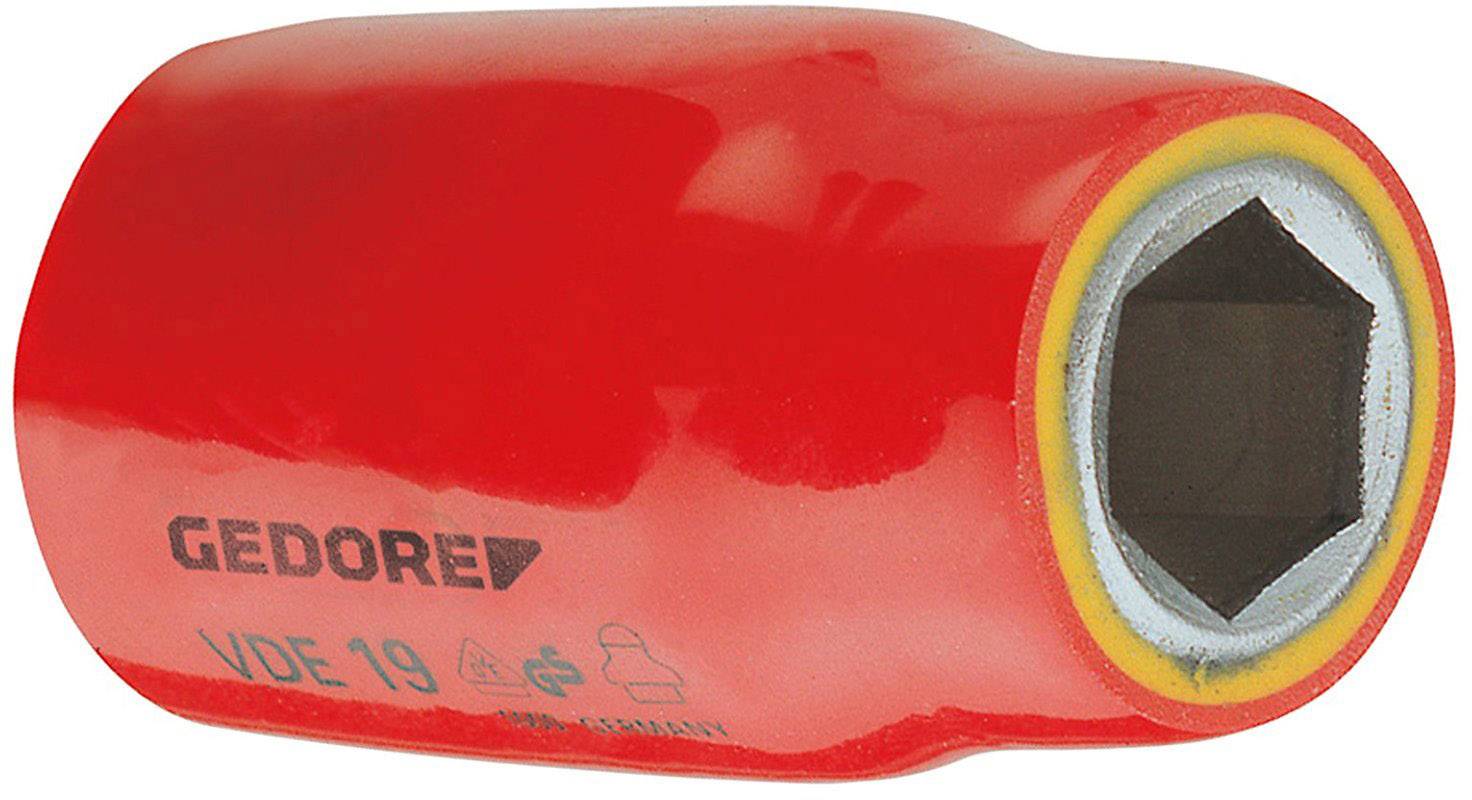

Gedore VDE 19 32 6123830 VDE bits Ball head handle 32 mm 1 1/2" 32 mm 1/2" (12.5 mm)
EAN:
Part number:
Item no:
Number
Total (€ 25.20 / piece)
€ 25.20
plus VAT.
14-day return policy included
Technical specifications
- Diameter 1:47 mm, diameter 2:27 mm
- 6-edged, manually operated
- With inner hexagon drive according to DIN 3121-G 12.5, ISO 1174
- GEDORE Vanadium Steel 31 CrV 3
- VDE insulated up to 1000 V, according to EN 60900/IEC 60900, 2-way check tool insulation
- 16 - 18 mm, insulation protrusion
- Product type
VDE bits
- Drive
1/2" (12.5 mm)
- Spanner size
32 mm
- Ratchet bits (inch)
1 1/2"
- Size
32 mm
- Length
60.5 mm
- Max. length
60.5 mm
- Material
Chromium-vanadium steel
- DIN standard
DIN 3120
- Width
47 mm
- Weight
250 g
- Screwdriver features
Ball head handle
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1903982 Gedore VDE 19 32 6123830 VDE bits Ball head handle 32 mm 1 1/2" 32 mm 1/2" (12.5 mm)
Information
Information 1903982 Gedore VDE 19 32 6123830 VDE bits Ball head handle 32 mm 1 1/2" 32 mm 1/2" (12.5 mm)
Information 1903982 Gedore VDE 19 32 6123830 VDE bits Ball head handle 32 mm 1 1/2" 32 mm 1/2" (12.5 mm)
Description
Features
- Hexagon socket wrench, hand-operated
- With square drive according to DIN 3120 - C 12.5, ISO 1174
- GEDORE vanadium steel 31CrV3
- VDE insulation up to 1000 V, acc. to EN 60900/IEC 60900, two-ply Check-Tool insulation
- 16 - 18 mm insulation overhang
- Sizes 27, 30 and 32: diameter d1 is not standardised
