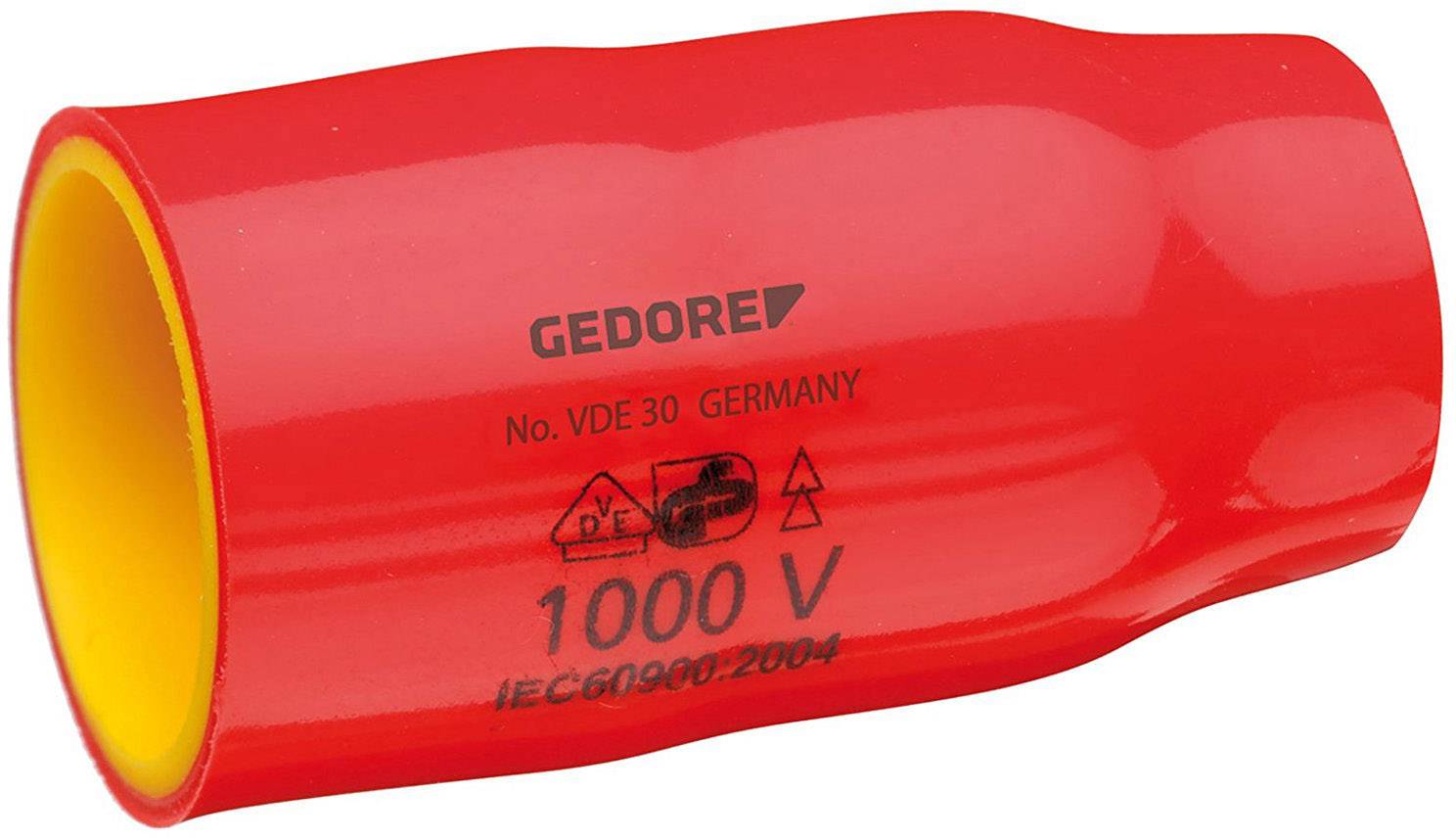

Gedore VDE 30 22 2946521 3/8" (10 mm) VDE bits 22 mm 3/8" 22 mm 3/8" (10 mm)
EAN:
Part number:
Item no:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 18.48
3
5% = € 0.92
€ 17.56
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 18.48 / piece)
€ 18.48
plus VAT.
Technical specifications
- 1:33.7 mm diameter, Diameter 2:23 mm
- 6-edged, manually operated
- With inner hexagon drive according to DIN 3120-C10, ISO 1174
- GEDORE Vanadium Steel 31 CrV 3
- VDE insulated up to 1000 V, according to EN 60900/IEC 60900, 2-way check tool insulation
- 16 - 18 mm, insulation protrusion
- Product type
VDE bits
- Drive
3/8" (10 mm)
- Spanner size
22 mm
- Ratchet bits (inch)
3/8"
- Size
22 mm
- Downforce
3/8" (10 mm)
- Length
48 mm
- Max. length
48 mm
- Material
Chromium-vanadium steel
- Material properties
insulated
- DIN standard
DIN 3120
- Weight
105 g
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1905329 Gedore VDE 30 22 2946521 3/8" (10 mm) VDE bits 22 mm 3/8" 22 mm 3/8" (10 mm)
Information
Information 1905329 Gedore VDE 30 22 2946521 3/8" (10 mm) VDE bits 22 mm 3/8" 22 mm 3/8" (10 mm)
Description
Features
- Hexagon socket wrench, hand-operated
- With square drive according to DIN 3120 - C 10, ISO 1174
- GEDORE vanadium steel 31CrV3
- VDE insulation up to 1000 V, acc. to EN 60900/IEC 60900, two-ply Check-Tool insulation
- 16 - 18 mm insulation overhang
