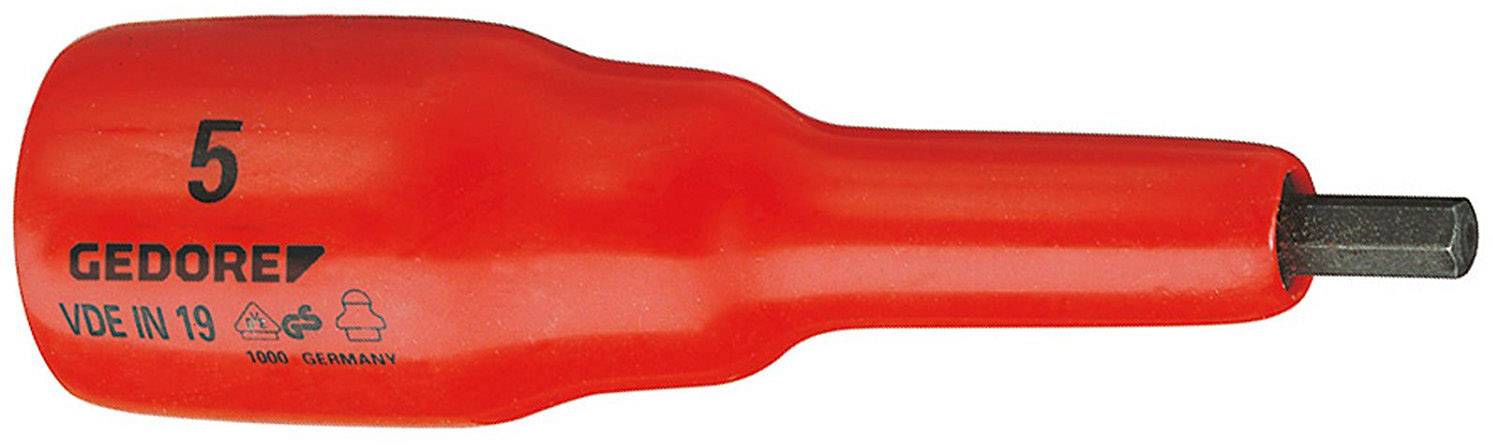

Gedore VDE IN 19 5 6124480 Allen VDE screwdriver bit insulated 5 mm 1 1/2" 5 mm 1/2" (12.5 mm)
EAN:
Part number:
Item no:
Number
Total (€ 27.72 / piece)
€ 27.72
plus VAT.
Only 1 Piece(s) available
Technical specifications
- Diameter 27 mm
- With inserted pin
- With inner hexagon drive according to DIN 3120-C 12.5, ISO 1174, with ball-catcher groove
- Tip of GEDORE vanadium special steel
- VDE insulated up to 1000 V, according to EN 60900/IEC 60900, 2-way check tool insulation
- These inserts can only be combined with no. VDE 1989, VDE 1991, VDE 1993 T U and VDE4507
- Product type
VDE screwdriver bit
- Drive
1/2" (12.5 mm)
- Spanner size
5 mm
- Ratchet bits (inch)
1 1/2"
- Size
5 mm
- Downforce
Allen
- Length
106 mm
- Max. length
106 mm
- Material
Special steel
- Material properties
chrome plated
- DIN standard
DIN 3120
- Width
27 mm
- Weight
83 g
- Screwdriver features
insulated
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1903983 Gedore VDE IN 19 5 6124480 Allen VDE screwdriver bit insulated 5 mm 1 1/2" 5 mm 1/2" (12.5 mm)
Information
Information 1903983 Gedore VDE IN 19 5 6124480 Allen VDE screwdriver bit insulated 5 mm 1 1/2" 5 mm 1/2" (12.5 mm)
Information 1903983 Gedore VDE IN 19 5 6124480 Allen VDE screwdriver bit insulated 5 mm 1 1/2" 5 mm 1/2" (12.5 mm)
Description
Features
- With pressed-in pin
- With square drive according to DIN 3120 - C 12.5, ISO 1174, with ball groove
- Tip GEDORE vanadium special steel
- VDE insulation up to 1000 V, acc. to EN 60900/IEC 60900, two-ply Check-Tool insulation
- Sockets can only be combined with VDE 1989 T, VDE 1991, VDE 1993 U and VDE 4507
