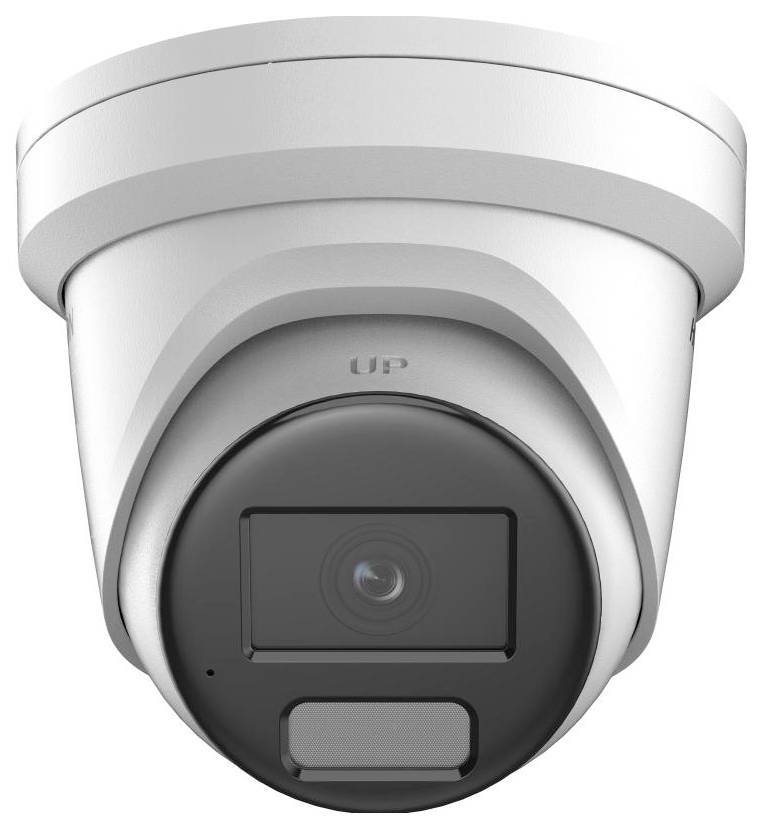

HIKVISION DS-2CD2346G2H-I(2.8mm)(eF) 311324139 4MP network camera
EAN:
Part number:
Item no:
Number
Total (€ 205.87 / piece)
€ 205.87
plus VAT.
Highlights & Details
HIKVISION 311324139 DS-2CD2346G2H-I(2.8mm)(eF)
- 1/3" Progressive Scan CMOS
- H.265+/H.265/H.264+/H.264/MJPEG
- Powered by Darkfighter technology, Color: 0,003 lux @(F1.4, AGC ON), 0 lux with IR
- 25 fps/30 fps(2688×1520.1920×1080)
- VCA functions
- 3 streams
- 3D DNR
- BLC
- ICR
- EXIR, up to 30 m
- DC12V&PoE
- Micro SD/SDHC/SDXC slot
- HIK-Connect cloud service
- 2.8mm
- This text is machine translated.
Technical specifications
- Sensor
1/3" Progressive Scan CMOS
- Product type
4MP network camera
- Series
ABUS Professional
- Resolution
2688 × 1520 pixels (4 Megapixel)
- Light sensitivity
Colour: 0.001 Lux @ (F1.0, AGC ON), B/W: 0 Lux with infrared (IR)
- Power supply
12 V / DC
- Current consumption
0.6 A at 12 V DC
- Dim
(Ø x H) 138.3 mm x 115.4 mm
- Connections
1 RJ45 10 M/100 M self-adjusting Ethernet-port
- Range of uses
Indoors and outdoors
- App compatibility
Yes
- Layout
Fixed Turret network camera
- Resolution (max.)
2688 x 1520 p
- Type
Network camera in Turret format (dome without glass cover), main casing and metal cover
- External dimensions
Ø 138,3 mm × 115,4 mm
- Outside Ø
138.3 mm
- Operating temperature
-30 °C to 60 °C
- Aperture
F1.0
- Viewing angle
2.8 mm
- Focal length
2.8 mm (fixed focal length) mm
- Used at
Outdoors
Indoors
- Frequency
Audio sampling rate (U version): 8 kHz / 16 kHz / 32 kHz / 44.1 kHz / 48 kHz
- Weight
550 g
- IR coverage
30 m
- Additional IR light
Yes
- Camera type
Dome camera
- No. of channels (details)
6
- Microphone
Yes
- Width
138.3 mm
- Height
115.4 mm
- (Ø)
138.3 mm
IP67
- Visible screen size (diagonal)
119,7°
- Temperature range
-30°C to 60°C at a humidity of 95% or less (non-condensing) °C
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3742913 HIKVISION DS-2CD2346G2H-I(2.8mm)(eF) 311324139 4MP network camera
Description
Features
- Turret
- Fixed lens
- IP67
- 4MP
Scope of delivery
- Incl. drilling template
- Fitting Material
- Quick guide
Hints
Mains adapter not included
System requirements
- Windows, iOS, Android
