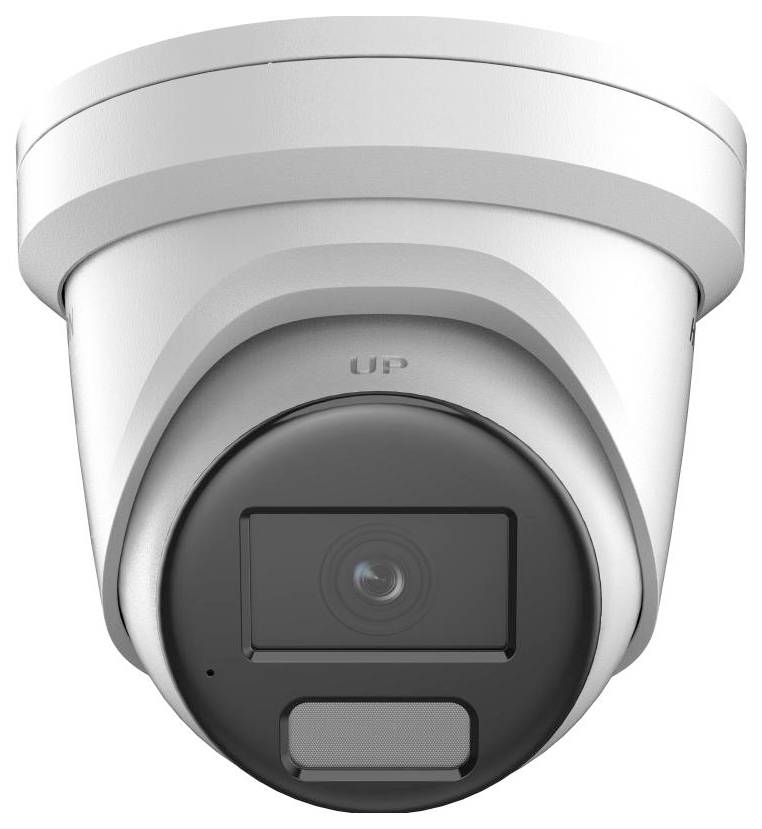

HIKVISION DS-2CD2386G2H-I(2.8mm)(eF) 311324671 Network camera 8MP
EAN:
Part number:
Item no:
Number
Total (€ 284.87 / piece)
€ 284.87
plus VAT.
Highlights & Details
HIKVISION 311324671 DS-2CD2386G2H-I(2.8mm)(eF)
- 1/1.8" Progressive Scan CMOS
- H.265+/H.265/H.264+/H.264/MJPEG
- Powered by Darkfighter technology, Color: 0,003 lux@(F1.6, AGC ON), 0 lux with IR
- 25fps/24fps(3840×2160), 25fps/30fps (3200x1800, 2688×1520, 1920×1080)
- VCA functions
- 3 streams
- 3D DNR
- BLC/HLC
- ICR
- EXIR, up to 30 m
- DC12V&PoE
- Micro SD/SDHC/SDXC slot
- HIK-Connect cloud service
- 2.8mm
- This text is machine translated.
Technical specifications
- Sensor
1/1.8" Progressive Scan CMOS
- Product type
Network camera 8MP
- Series
ABUS Professional
- Resolution
3840 × 2160 pixels (8 Megapixel)
- Light sensitivity
Colour: 0.0008 Lux @ (F1.0, AGC ON), B/W: 0 Lux with infrared (IR)
- Operating voltage
12 VDC (± 25 %) or PoE (IEEE 802.3af, Class 3)
- Power supply
12 V / DC
PoE (Power over Ethernet)
- Current consumption
0.54 A at 12 V DC
- Dim
(Ø x H) 138.3 mm x 115.4 mm
- Connections
1 RJ45 10 M/100 M self-adjusting Ethernet-port
Ø 5.5 mm coaxial power connector
- Range of uses
Indoors and outdoors
- No. of channels (details)
6
- App compatibility
Yes
- Layout
Fixed Turret network camera
- Resolution (max.)
3840 x 2160 p
- External dimensions
Ø 138,3 mm × 115,4 mm
- Outside Ø
138.3 mm
- Operating temperature
-30 °C to 60 °C
- Aperture
F1.0
- Viewing angle
2.8 mm
- Focal length
2.8 mm
- Used at
Outdoors
Indoors
- Frequency
Audio sampling rate (U version): 8 kHz / 16 kHz / 32 kHz / 44.1 kHz / 48 kHz
- Weight
775 g
- IR coverage
30 m
- Additional IR light
Yes
- Camera type
Dome camera
- No. of channels (details)
6
- Height
115.4 mm
- Depth
115.4 mm
- (Ø)
138.3 mm
- Visible screen size (diagonal)
134,3°
- Temperature range
-30°C to 60°C at a humidity of 95% or less (non-condensing) °C
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3742914 HIKVISION DS-2CD2386G2H-I(2.8mm)(eF) 311324671 Network camera 8MP
Description
Features
- Turret
- Fixed lens
- IP67
- 8MP
Scope of delivery
- Incl. drilling template
- Fitting Material
- Quick guide
Hints
Mains adapter not included
System requirements
- Windows, iOS, Android
