ifm Electronic Proximity sensor Dynamic, Capacitive KT5009 KT5009 PNP (Ø x H) 100 mm x 11 mm
EAN:
Part number:
Item no:
Product type
Proximity sensor
Max. operating voltage
30 V DC
Contact type
1 maker
Outputs
PNP
Model
Dynamic
Capacitive
Number
Total (€ 168.06 / piece)
€ 168.06
plus VAT.
Only 3 Piece(s) available
Technical specifications
- Product type
Proximity sensor
- Type
KT5009
- Min. operating voltage
12 V DC
- Max. operating voltage
30 V DC
- Operating voltage
12 - 30 V DC
- Contact type
1 maker
- Outputs
PNP
- Model
Dynamic
Capacitive
- Connector
Cable, open end
- Cable length
2.00 m
- Features
Incl. ring
- Min. temperature
-40 °C
- Max. temperature
+85 °C
- Height
11 mm
- (Ø)
100 mm
- Dim

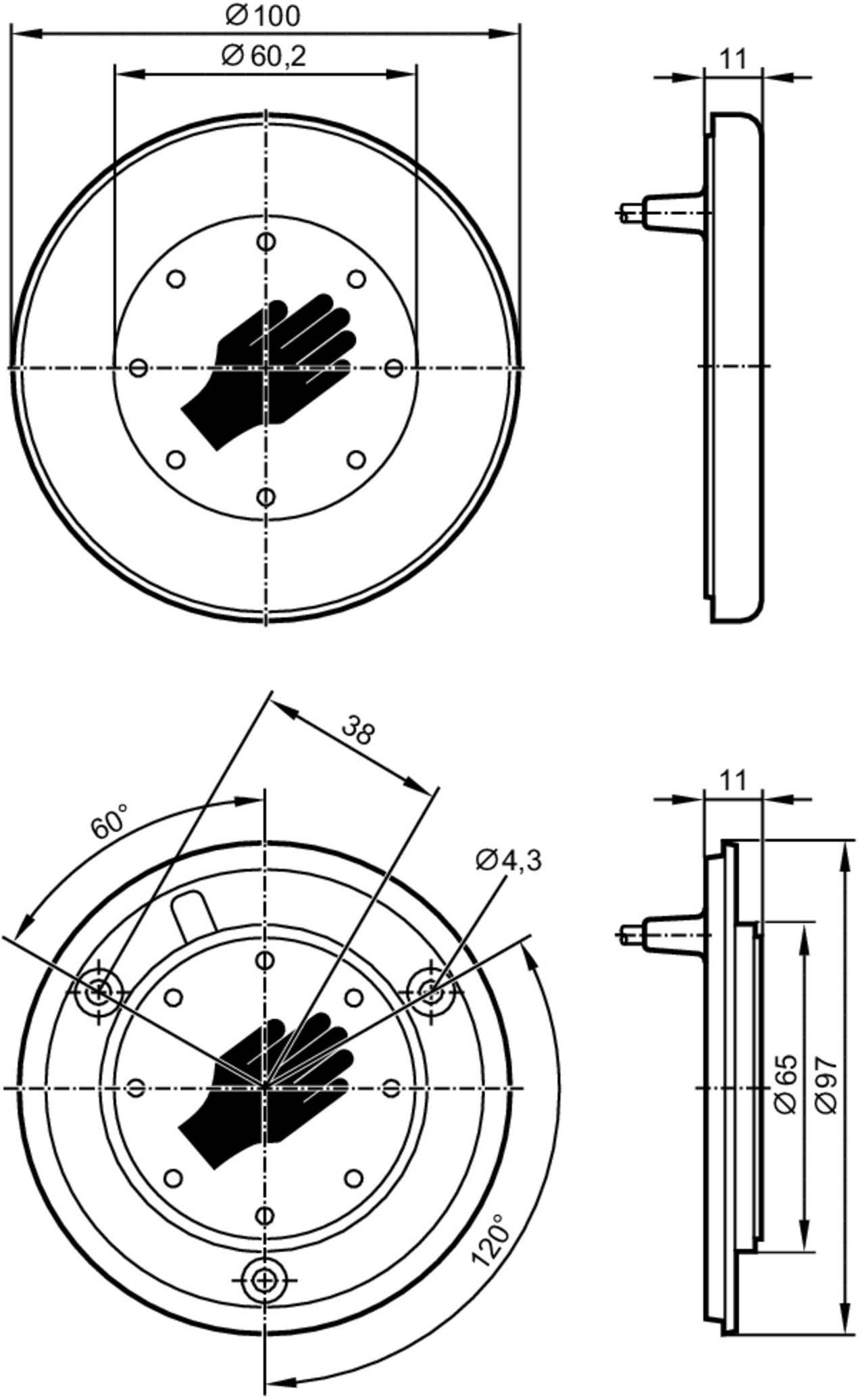

(Ø x H) 100 mm x 11 mm
- Content
1 pc(s)
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1561617 ifm Electronic Proximity sensor Dynamic, Capacitive KT5009 KT5009 PNP (Ø x H) 100 mm x 11 mm
Description
The capacitive measurement principle recognizes the approximation of the human hand. Dynamically momentary hand sensors panels interfering influences like water, ice layers or foreign bodies as far as possible. A trigger is, however, for example, with One-way or working gloves. The hand sensors switch also by glass. Compared with mechanical switches the sensors work wear-free. Since you to touch is when there is no pressure is necessary. This increases the control comfort. LEDs as visual feedback signal the activation of the sensor. In the industry, the sensors as a start/stop button or acknowledgment button on machines application. On mobile machines and trailers can be the sensors as a button. You will also be used as a stop button or door opener.
