Kensington K59600WW Monitor desk mount 1 Display(s) 86,4 cm (34") Black Rotatable, Tiltable, Swivelling
EAN:
Part number:
Item no:
Number
Total (€ 92.43 / piece)
€ 92.43
plus VAT.
Kensington SmartFit® One-Touch Single Monitor Arm - Black
Highlights & Details
- Maximum weight capacity 9 kg
- Minimum screen size: 33 cm (13") Maximum screen size: 86.4 cm (34")
- Number of display supported: 1
- Terminal mounting type: Table/bank
- Maximum VESA-bracket 100 x 100 mm
- Manual height adjustment Inclination adjustment
- Improved cable management Easy installation
- Aluminium, plastic, steel black
Technical specifications
- Minimum screen size: 33 cm (13")
- Maximum screen size: 86.4 cm (34")
- Panel-mounting interface 75 x 75.100 x 100 mm
- Table thickness (max.) 8.5 cm
- Tilt angle range -90 - 90°
- Shipping box weight: 1.78 kg
- Product type
Monitor desk mount
- Suitable for
86,4 cm (34")
- Add-on displays
1 Display(s)
- Holder type
Rotatable
Tiltable
Swivelling
No
- Max. load capacity
9 kg
No
100 x 100 mm
- Rotation
180°
- Tilt range (bottom)
90°
- Tilt range (top)
90°
- Width
590 mm
- Height
665 mm
- Depth
115 mm
- Factory colour
Black
- Material (details)
Aluminium
Plastic
Steel
- Weight
3.34 kg
- Dim
(W x H x D) 590 x 665 x 115 mm
- Suitable for
86,4 cm (34")
- Screen size diagonal (inches)
1.0 inch
- Supported monitors
1
- UKCA
not relevant
- Swivel angle
135°
- Height adjustment range
170 - 505 mm
- Master (outer) case gross weight
1.78 kg
- Height adjustment
yes
- Desk thickness (min)
1 cm
- Master (outer) case length
514 mm
- Cable management
yes
- Products per pallet (UK)
49 Stück(e)
- Easy to install
yes
- Master (outer) case height
480 mm
- Master (outer) case width
333.5 mm
- Package weight
4.22 kg
- Tilt adjustment
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3221259 Kensington K59600WW Monitor desk mount 1 Display(s) 86,4 cm (34") Black Rotatable, Tiltable, Swivelling
Description
The flexible SmartFit® One-Touch Single Monitor Arm with its patented SmartFit® system and fully movable design make it easy to set the optimum screen height and work in a comfortable posture. The high-capacity design, tested according to ANSI/BIFMA standards, guarantees stability in every position, while the height, depth and inclination of the monitor can be easily adjusted thanks to a monitor holder with integrated gas pressure spring - even in portrait and landscape format. The integrated cable management system organizes and hides the cables, while the monitor does not need any additional storage space on the table due to its elevated position. This provides for more order and more valuable space. Kensington stands for quality products and durability and guarantees a more ergonomic workplace for the future.
SmartFit® enables users to find their individual and ergonomic height adjustment. Use the hand diagram to determine your individual SmartFit® comfort color by placing your hand on it.

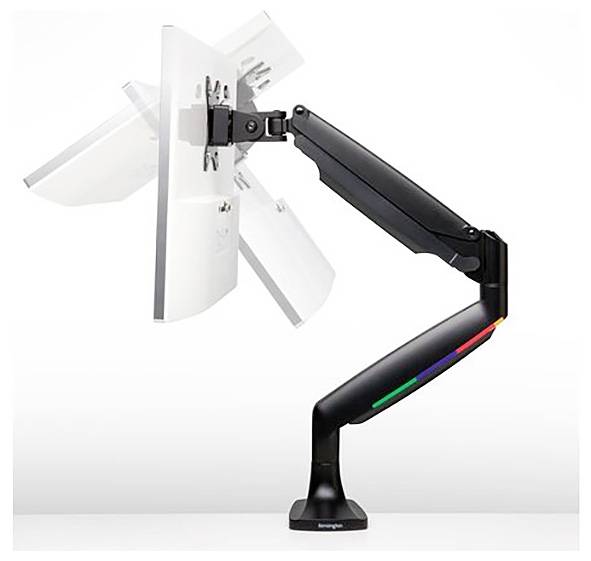

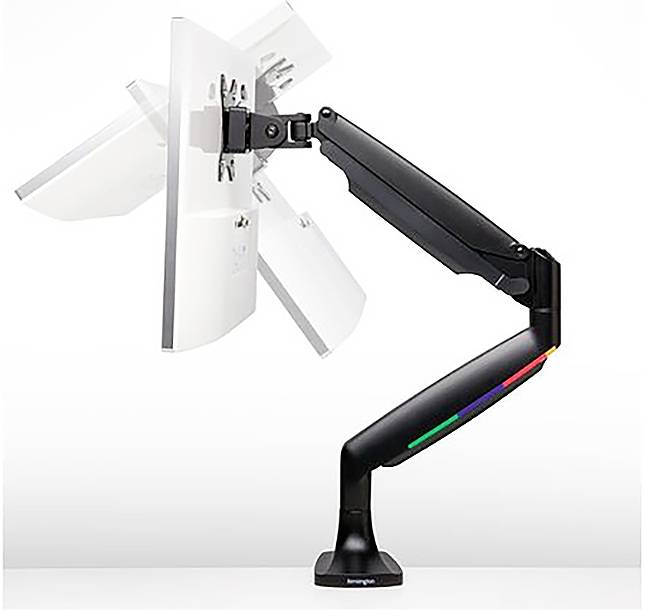

The adjustable Kensington SmartFit® One-Touch Single Monitor Arm makes it easy to adjust the height, depth and tilt of your external monitor. Whether in landscape or portrait orientation, the fully movable design gives you flexibility via the adjustment at the height (170 mm - 505 mm), in rotation (+/-90° rotating and swiveling) and in the angle of inclination (+/-90°). The counterweight voltage setting allows you to "tighten" or "loosen" the arm to adjust it to different monitor weights in order to operate it with the same lightness and stability.
The stable design is suitable for a flat or curved monitor with a size of 13”-34” and a weight of up to 9 kg. The monitor arm holds it reliably in all positions.

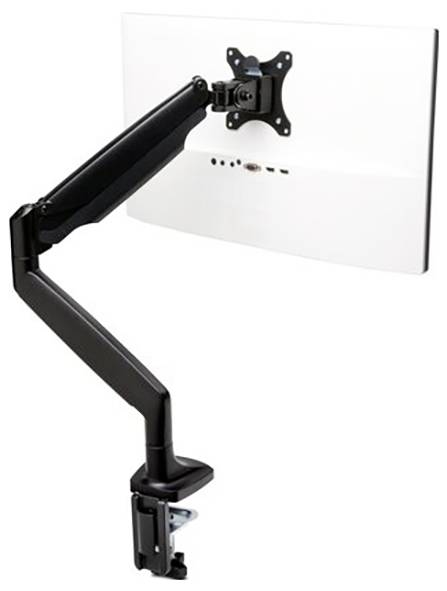

The Kensington SmartFit® One-Touch Single Monitor Arm can be attached with a C-clip (tabletop thickness: 10 to 85 mm) or a grommet (tabletop thickness: 10 to 80 mm); diameter of the grommet opening: 10.5 to 50 mm) - tool kit included. Due to the non-permanent attachment, removal is very simple and leaves no traces. Thanks to the accompanying quickly detachable VESA mounting plate (75 or 100 mm) the monitor arm Ideal is suitable for VESA-mounted monitors.
The cable routing system allows you to clean up your desk without tangled wires.
The Kensington SmartFit® one-touch single monitor arm has been proven to meet ANSI/BIFMA performance and safety standards.
This text is machine translated.
SmartFit® enables users to find their individual and ergonomic height adjustment. Use the hand diagram to determine your individual SmartFit® comfort color by placing your hand on it.
The adjustable Kensington SmartFit® One-Touch Single Monitor Arm makes it easy to adjust the height, depth and tilt of your external monitor. Whether in landscape or portrait orientation, the fully movable design gives you flexibility via the adjustment at the height (170 mm - 505 mm), in rotation (+/-90° rotating and swiveling) and in the angle of inclination (+/-90°). The counterweight voltage setting allows you to "tighten" or "loosen" the arm to adjust it to different monitor weights in order to operate it with the same lightness and stability.
The stable design is suitable for a flat or curved monitor with a size of 13”-34” and a weight of up to 9 kg. The monitor arm holds it reliably in all positions.
The Kensington SmartFit® One-Touch Single Monitor Arm can be attached with a C-clip (tabletop thickness: 10 to 85 mm) or a grommet (tabletop thickness: 10 to 80 mm); diameter of the grommet opening: 10.5 to 50 mm) - tool kit included. Due to the non-permanent attachment, removal is very simple and leaves no traces. Thanks to the accompanying quickly detachable VESA mounting plate (75 or 100 mm) the monitor arm Ideal is suitable for VESA-mounted monitors.
The cable routing system allows you to clean up your desk without tangled wires.
The Kensington SmartFit® one-touch single monitor arm has been proven to meet ANSI/BIFMA performance and safety standards.
This text is machine translated.
