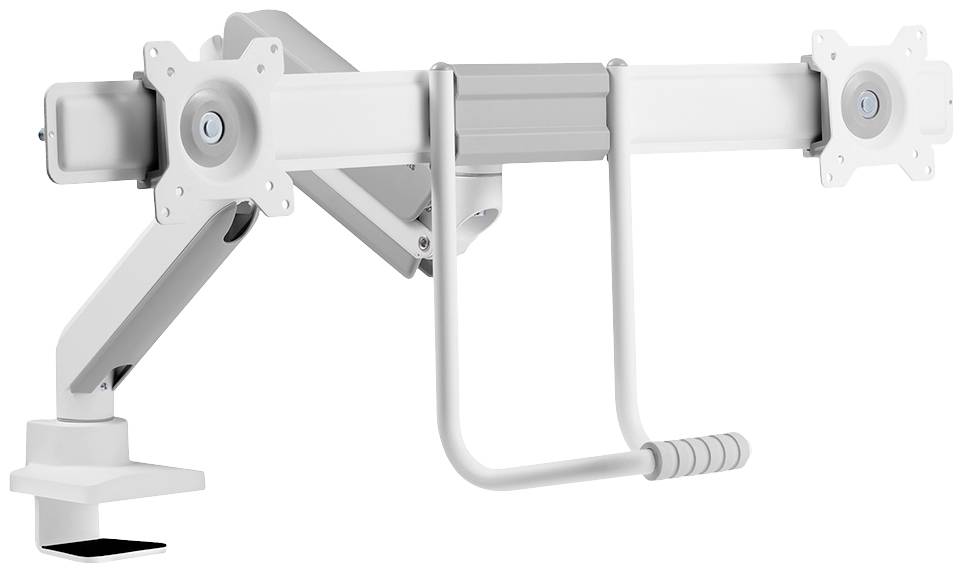

'White, adjustable monitor arm with two mounting brackets and a tiltable lever mechanism for attachment to desks.'

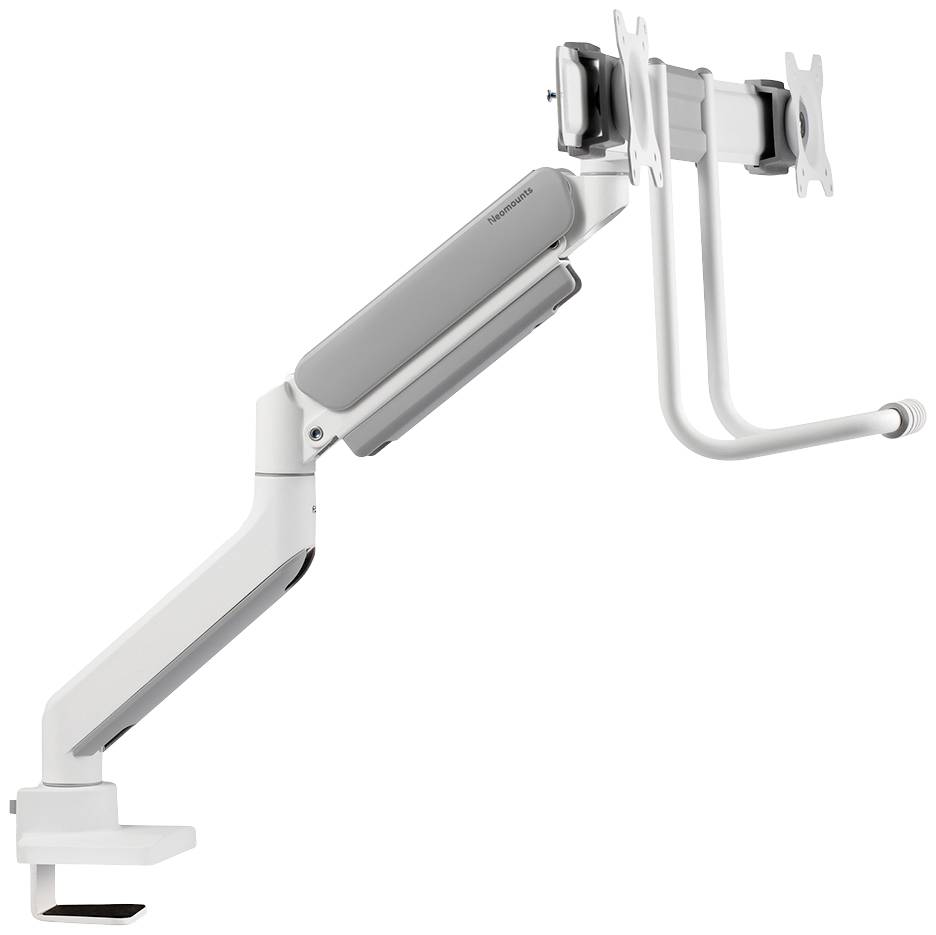

An adjustable white monitor arm with two mounting points for wall or desk installation. Suitable for two monitors.

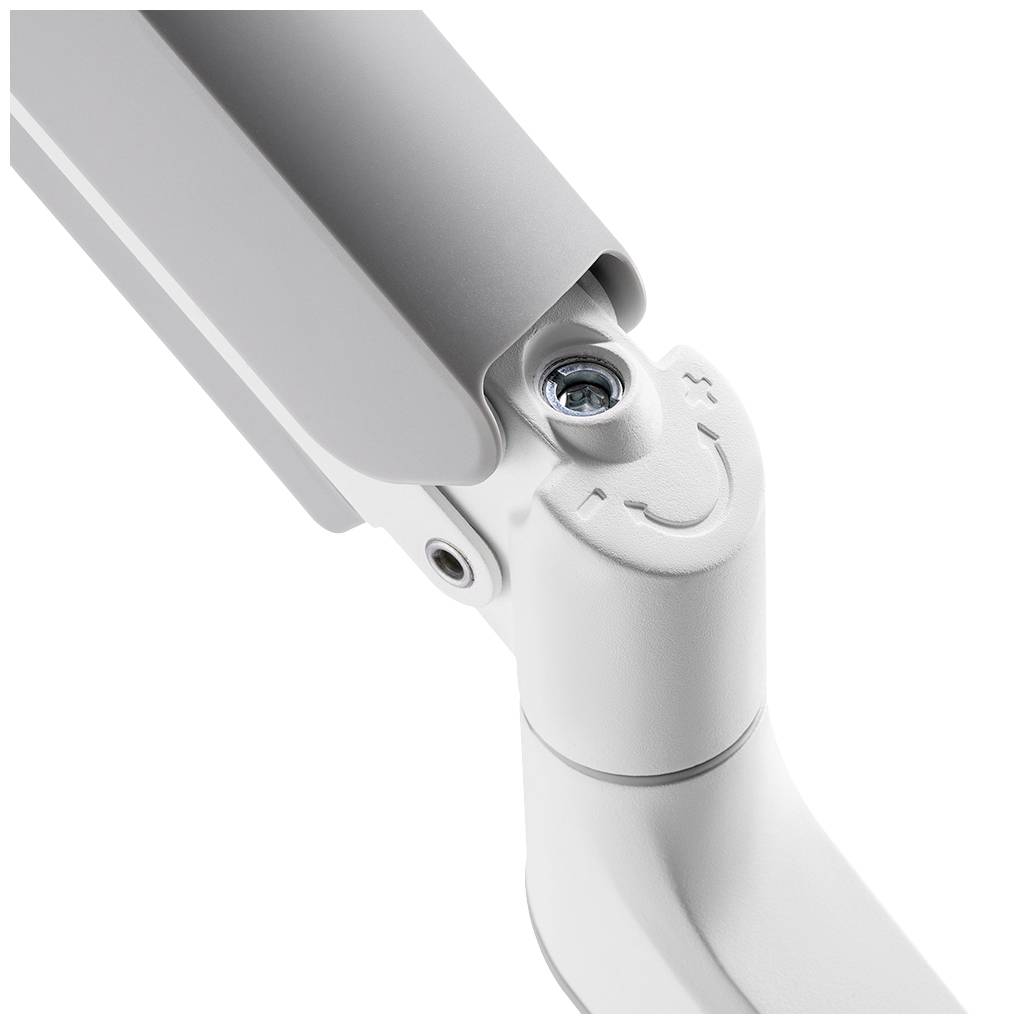

Close-up view of a grey, adjustable desk lamp. The lamp's joint with screw connection is visible.

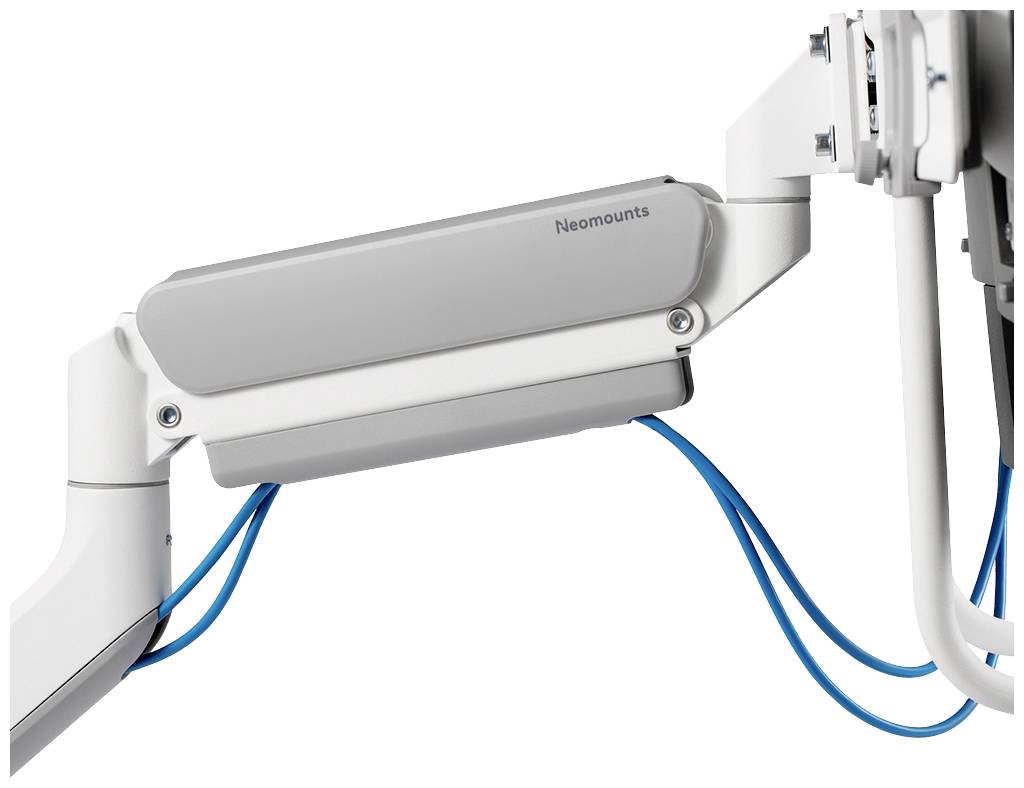

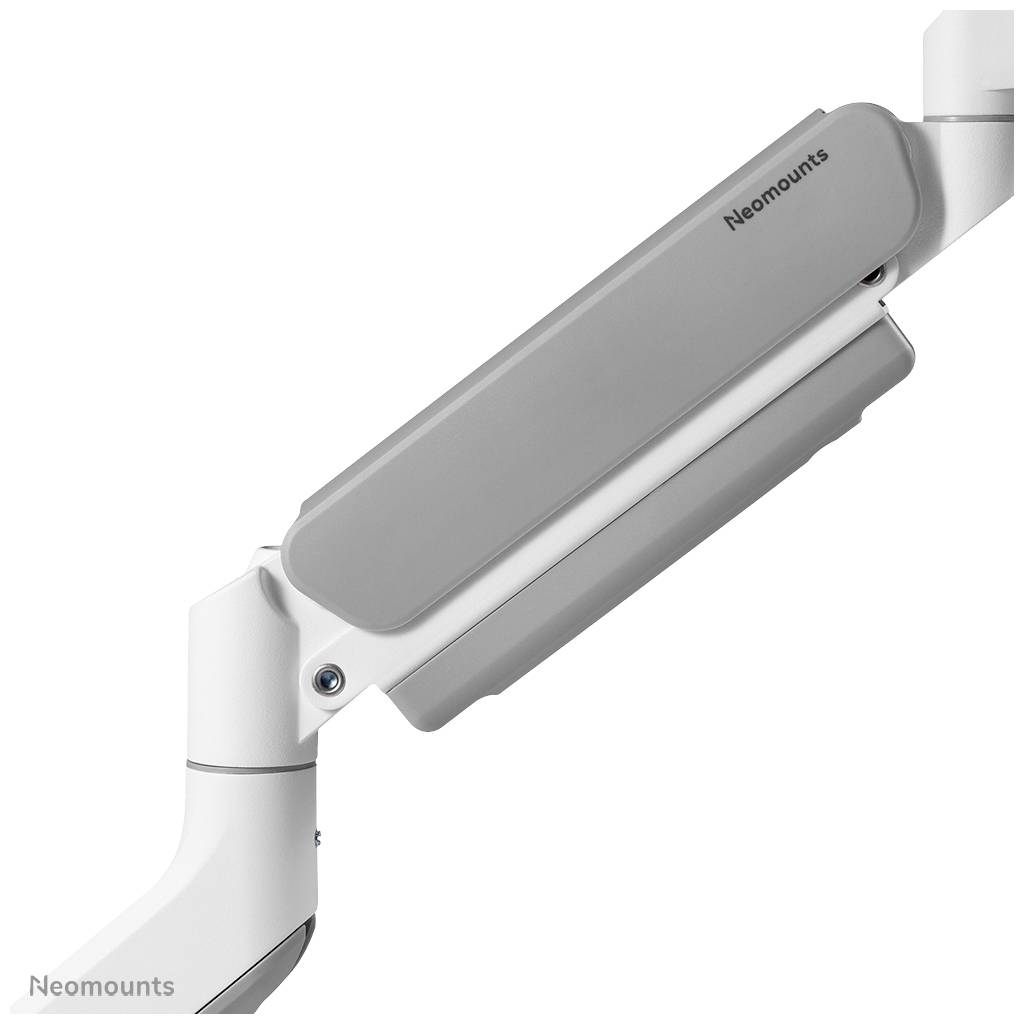

A white and grey monitor arm with blue cables, marked with 'Neomounts'. Suitable for mounting screens on walls.

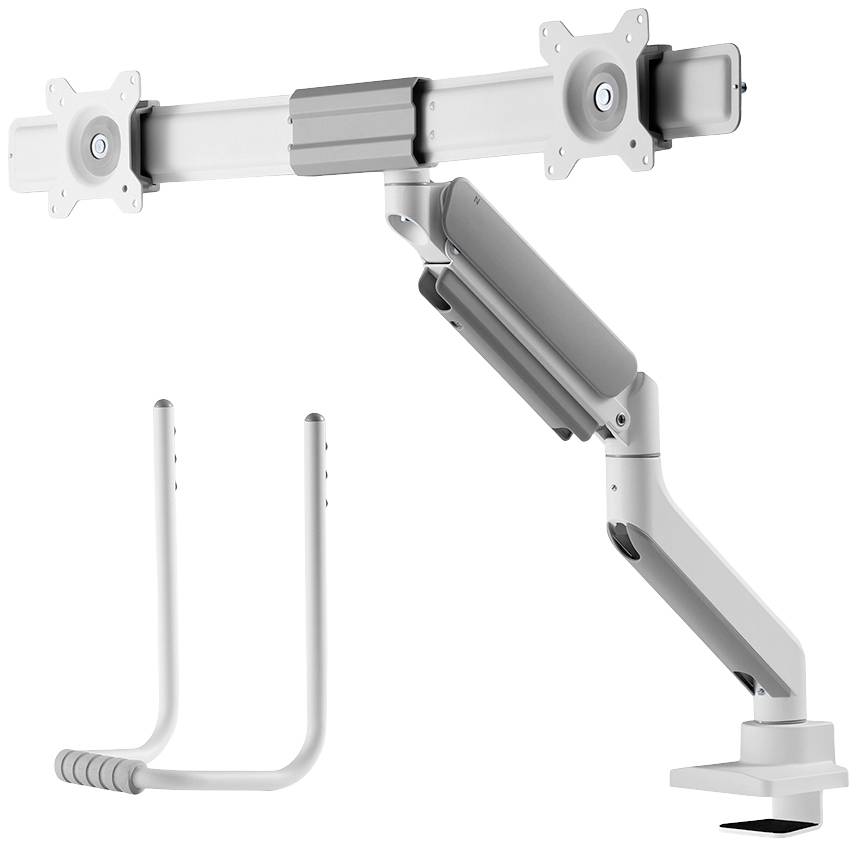

Adjustable dual-monitor arm with flexible positioning for ergonomic working. Includes mounting components.

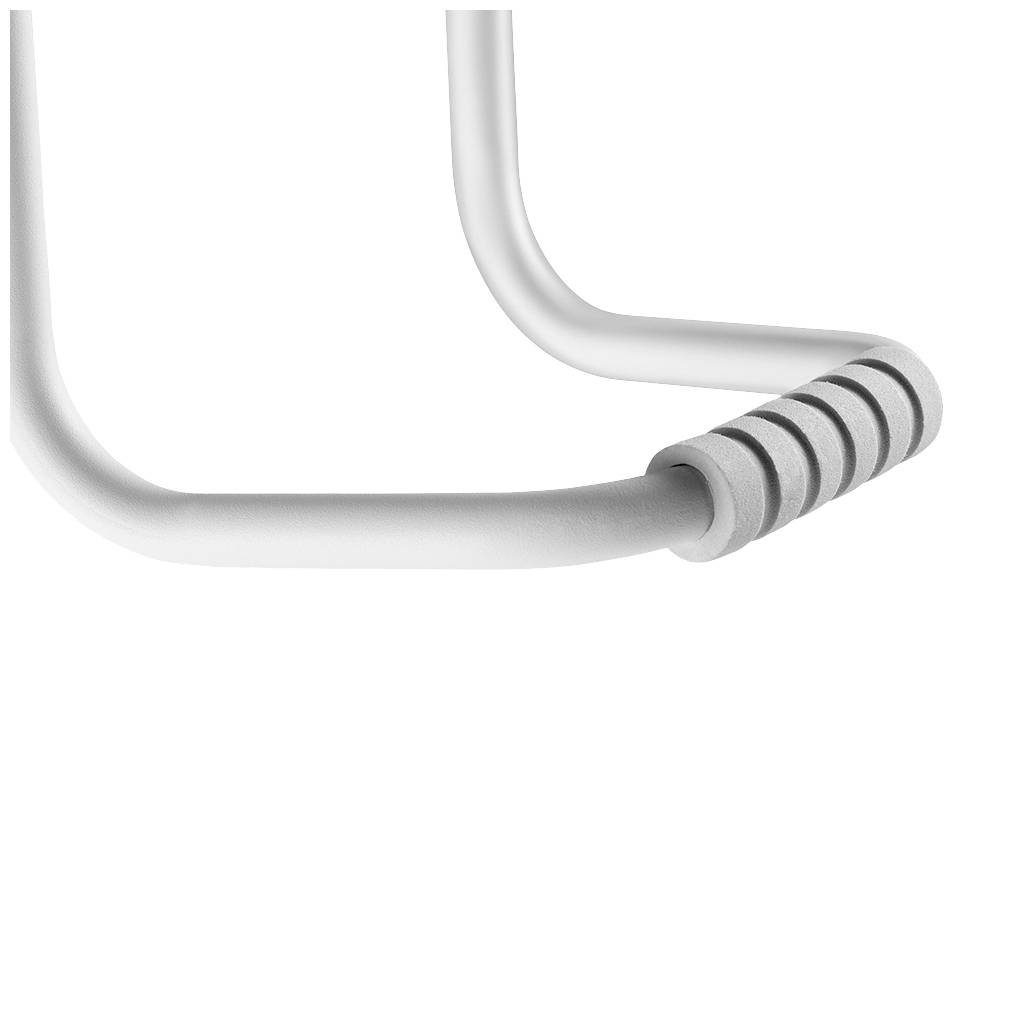

A white, curved metal handle with a ribbed grey grip section, used for stability or as a handrail.

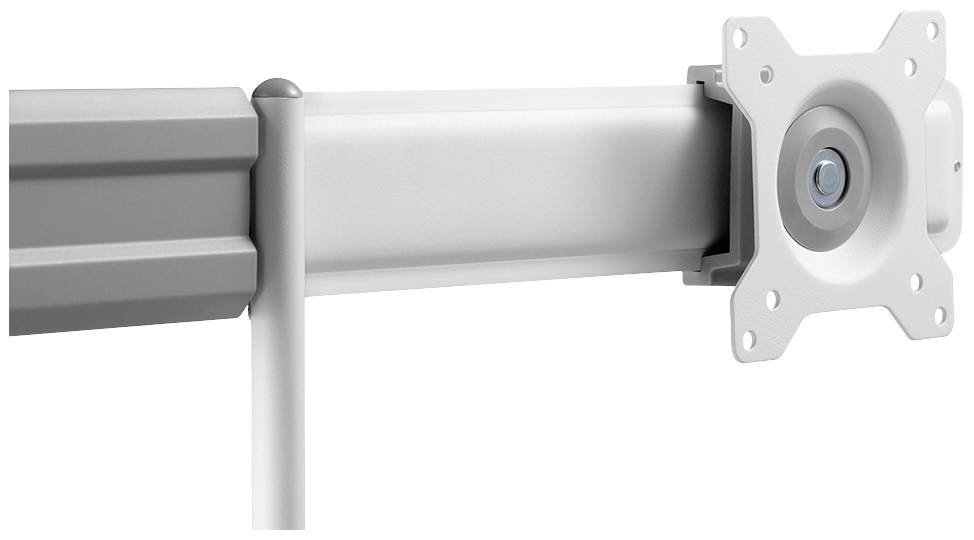

Monitor mount with swivel arm, suitable for various screen sizes, in white design.

Two monitors on an articulated arm, shown from the front and side. The arm allows height adjustment and screen tilt.

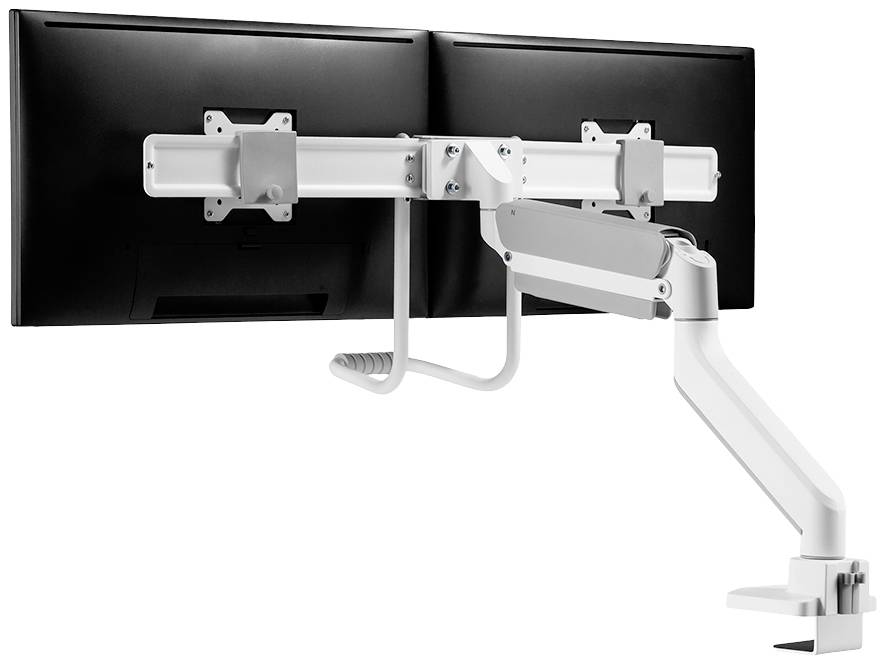

'Two black monitors mounted on a white, adjustable desk mount.'

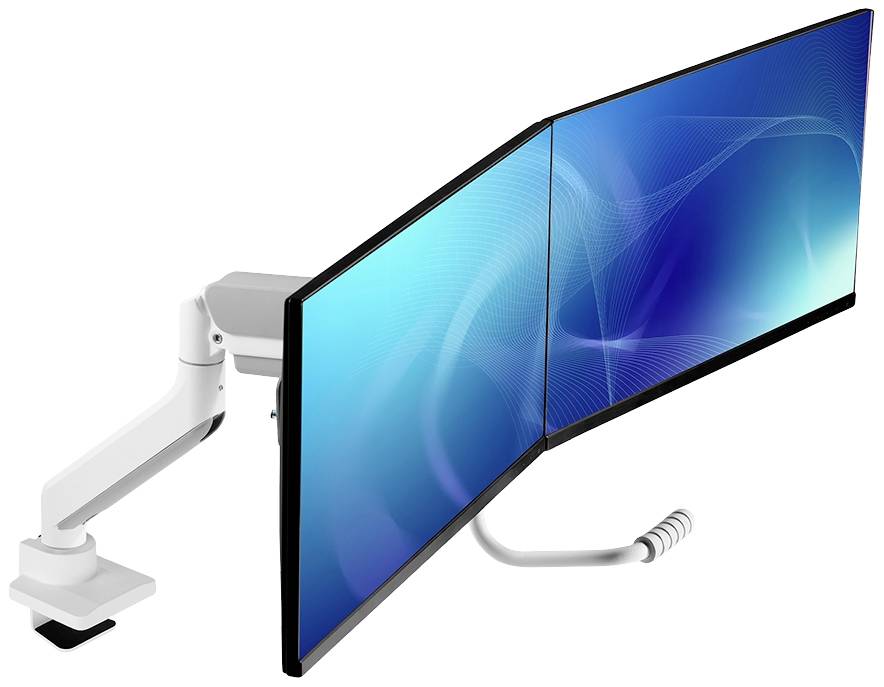

Two connected computer monitors on a movable arm mounting system, displaying blue abstract graphics on their screens.

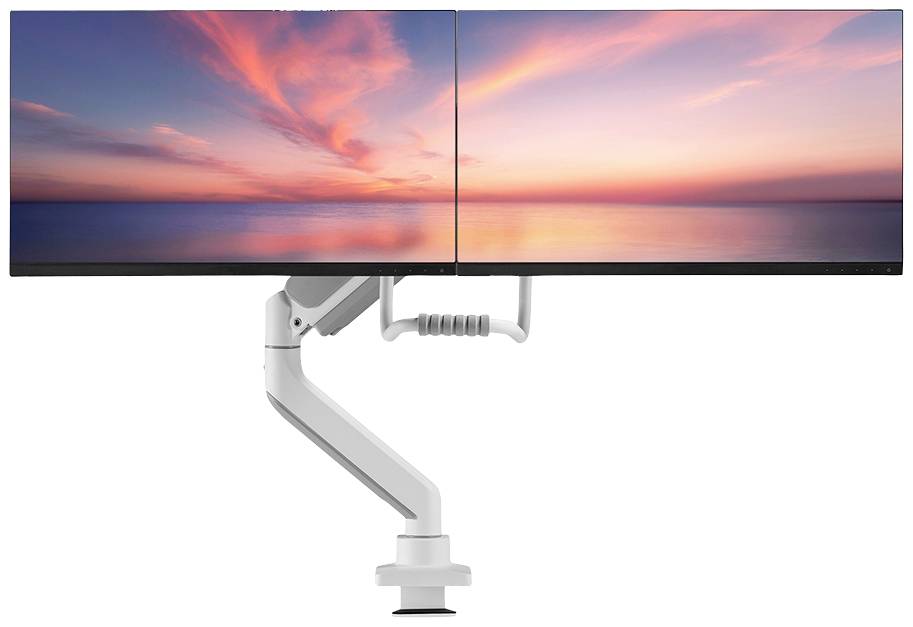

Two side-by-side monitors display a sunset over the sea. A white monitor arm holds the screens together.

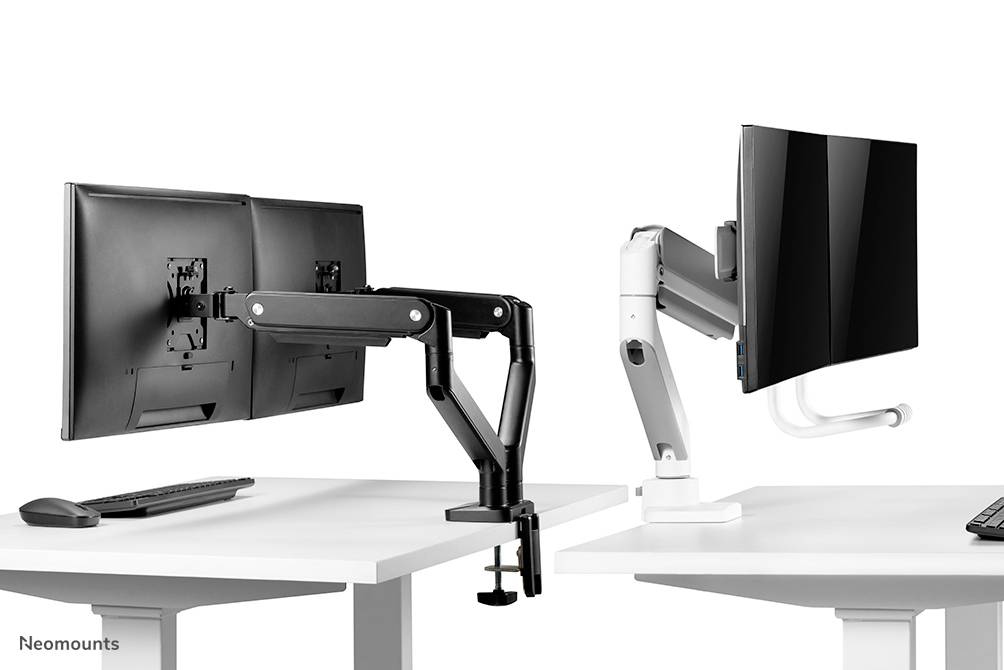

Two monitor arms on white desks hold screens at different angles. The one on the left is black, the one on the right is white.

A wooden desk with a keyboard, mouse, two monitors placed side by side, and a black desk lamp. A cup sits to the left.

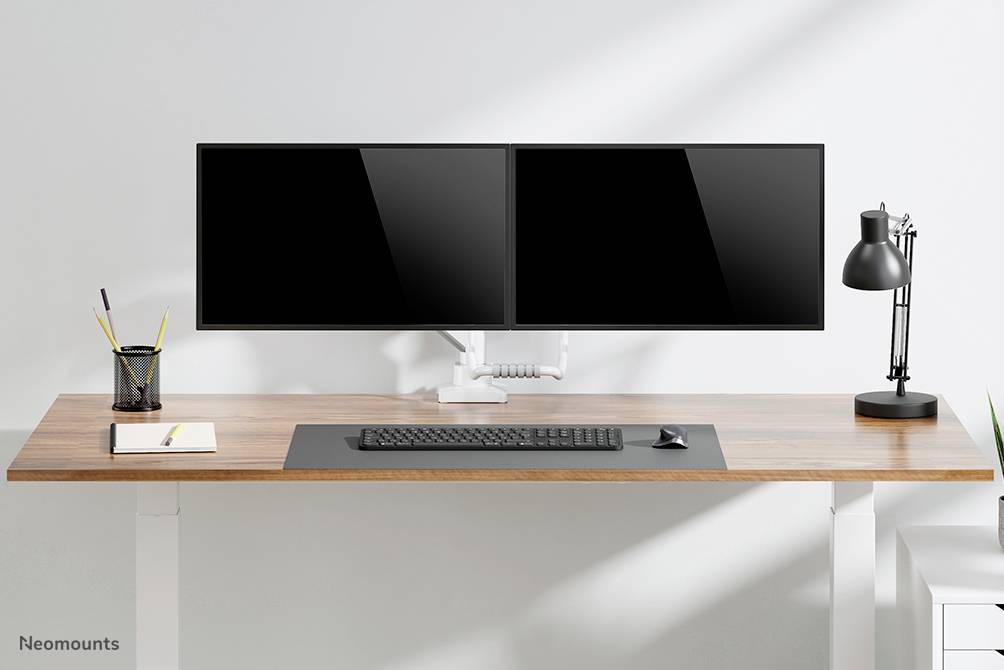

A tidy desk with two adjacent monitors, a keyboard, lamp, notebook, and pen holder.

Desktop from above with keyboard, monitor mount, notebook, pen, mouse and lamp. Modern office environment.

A modern desk with two monitors placed side by side, a keyboard and mouse, and a plant as decoration.

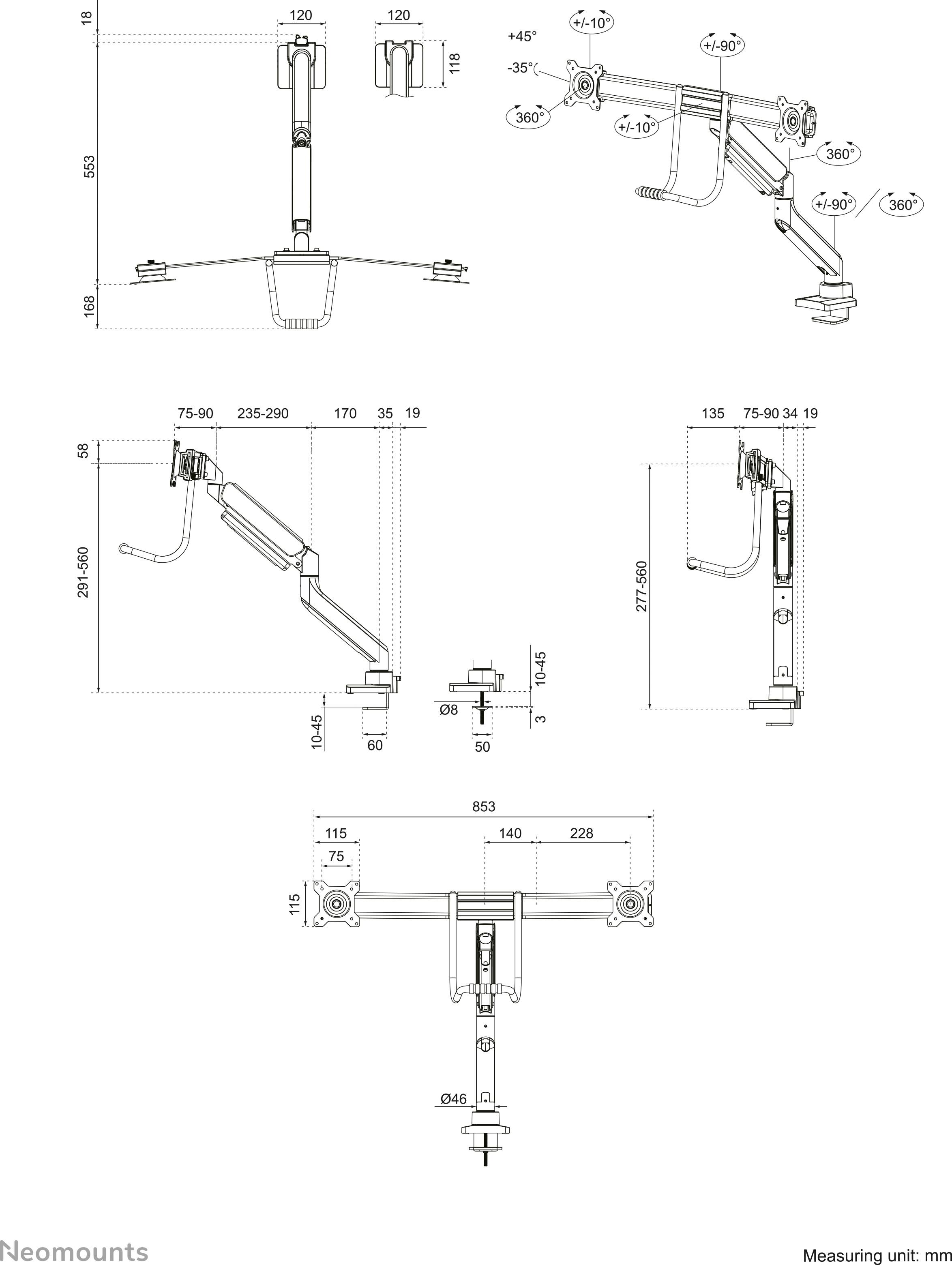

Technical drawing of a monitor arm shows dimensions and mounting details. Contains front, top, and side views with measurements in mm.

1/20

Datasheet (PDF)

Fast track dispatch on Wed, 23 Sep

2 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 180.66 / piece)

€ 180.66

plus VAT.

Only 2 Piece(s) available

14-day return policy included

Report legal concerns

Neomounts by NewStar DS75-450WH2 monitor desk mount

Highlights & Details

Holder type: Height-adjustable, Tiltable, Swivelling, SwivellingSupports VESA standards up toSuitable for displays sized (range): 43,2 cm (17") - 81,3 cm (32")Load capacity (max.) 16 kg

Technical specifications

Load capacity per screen: 8 kgHeight adjustment: 28 cmAdjustable width 54 cmDepth adjustment 68 cm

Product type: Monitor desk mount

Suitable for: 43,2 cm (17") - 81,3 cm (32")

Add-on displays: 2 Display(s)

Holder type: Height-adjustable
Tiltable
Swivelling
Swivelling

: No

Max. load capacity: 16 kg

: No

: 75 x 75 mm
100 x 100 mm

Rotation: 180°

Tilt range (bottom): -10°

Tilt range (top): +10°

Swivel range (left): +10°

Swivel range (right): -10°

Width: 761 mm

Height: 646 mm

Depth: 115 mm

Factory colour: White

Material (details): Main material: Steel

Weight: 7.557

Dim: (W x H x D) 761 x 646 x 115 mm

Suitable for: 43,2 cm (17")
43,9 cm (17,3")
45,7 cm (18")
46,0 cm (18,1")
46,7 cm (18,4")
47 cm (18,5")
47,0 cm (18,5")
48 cm (18,9")
48,3 cm (19")
48,5 cm (19,1")
49,5 cm (19,5")
50,8 cm (20")
51,1 cm (20,1")
53,3 cm (21")
54,1 cm (21,3")
54,6 cm (21,5")
54,9 cm (21,6")
55,9 cm (22")
57,2 cm (22,5")
58,4 cm (23")
59,9 cm (23,6")
60,5 cm (23,8")
61 cm (24")
61 cm (24")
61,2 cm (24,1")
62,2 cm (24,5")
63,5 cm (25")
66 cm (26")
66,0 cm (26")
68,6 cm (27")
71,1 cm (28")
73,7 cm (29")
76,2 cm (30")
78,7 cm (31")
80 cm (31,5")
80,0 cm (31,5")
81,3 cm (32")
Show more

Product type description: Zubehör TFT/LCD-TV

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 2789710 Neomounts DS75-450WH2 Monitor desk mount 2 Display(s) 43,2 cm (17") - 81,3 cm (32") White Height-adjustable, Tiltable, S

User & Safety Instructions

User & Safety Instructions 2789710 Neomounts DS75-450WH2 Monitor desk mount 2 Display(s) 43,2 cm (17") - 81,3 cm (32") White Height-adjustable, Tiltable, S

Warranty Terms

Warranty Terms 2789710 Neomounts DS75-450WH2 Monitor desk mount 2 Display(s) 43,2 cm (17") - 81,3 cm (32") White Height-adjustable, Tiltable, S

Description

The Neomounts by NewStar DS75-450WH2 is a fully mobile desk mount for two flat screens up to 81.28 cm (32") with a maximum weight capacity of 8 kg per screen. Due to the versatile inclination (20°), turn (360°) and swivel technology (20°) the holder can be set to any desired viewing angle, in order to make full use of the possibilities of the screen. In addition, the holder has a gas-spring height adjustment (27.7 - 56 cm) and a depth adjustment (0 - 50.5 cm), in order to create the perfect working position. The DS75-450WH2 features a sophisticated 180-degree stop mechanism, which allows you to securely adjust the holder, even if it is standing close to a wall or partition, without touching the wall. The intelligent cable management system ensures proper cable management. The DS75-450WH2 is suitable for screens that correspond to VESA hole pattern 75 x 75 or 100 x 100 mm. Other hole patterns can be covered with one of the VESA adapter plates from Neomounts by NewStar. The table bracket has a Quick-Release VESA system and is supplied with a Top-Fix table clamp and a grommet for quick and easy installation. The package of the DS75-450WH2 Table Mount is 100% plastic free and consists entirely of cardboard and paper.

This text is machine translated.

Features

Fully movableTable mounting: Feed-through, terminalGas-spring height adjustment (27.7 - 56 cm)Depth adjustment (0 - 50.5 cm)180°-Stop mechanismCable bushing.
