1/3
Neomounts FPMA-WP440BLACK Monitor tube mount 1 Display(s) 58,4 cm (23") - 132,1 cm (52") Black Swivelling, Swivelling, T
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 168.06 / piece)
€ 168.06
plus VAT.
FPMA-WP440BLACK Neowmounts by NewStar flat screen mount
Highlights & Details
- Holder type: Swivelling, Swivelling, TiltableSupports VESA standards up toSuitable for displays sized (range): 58,4 cm (23") - 132,1 cm (52")Load capacity (max.) 25 kg

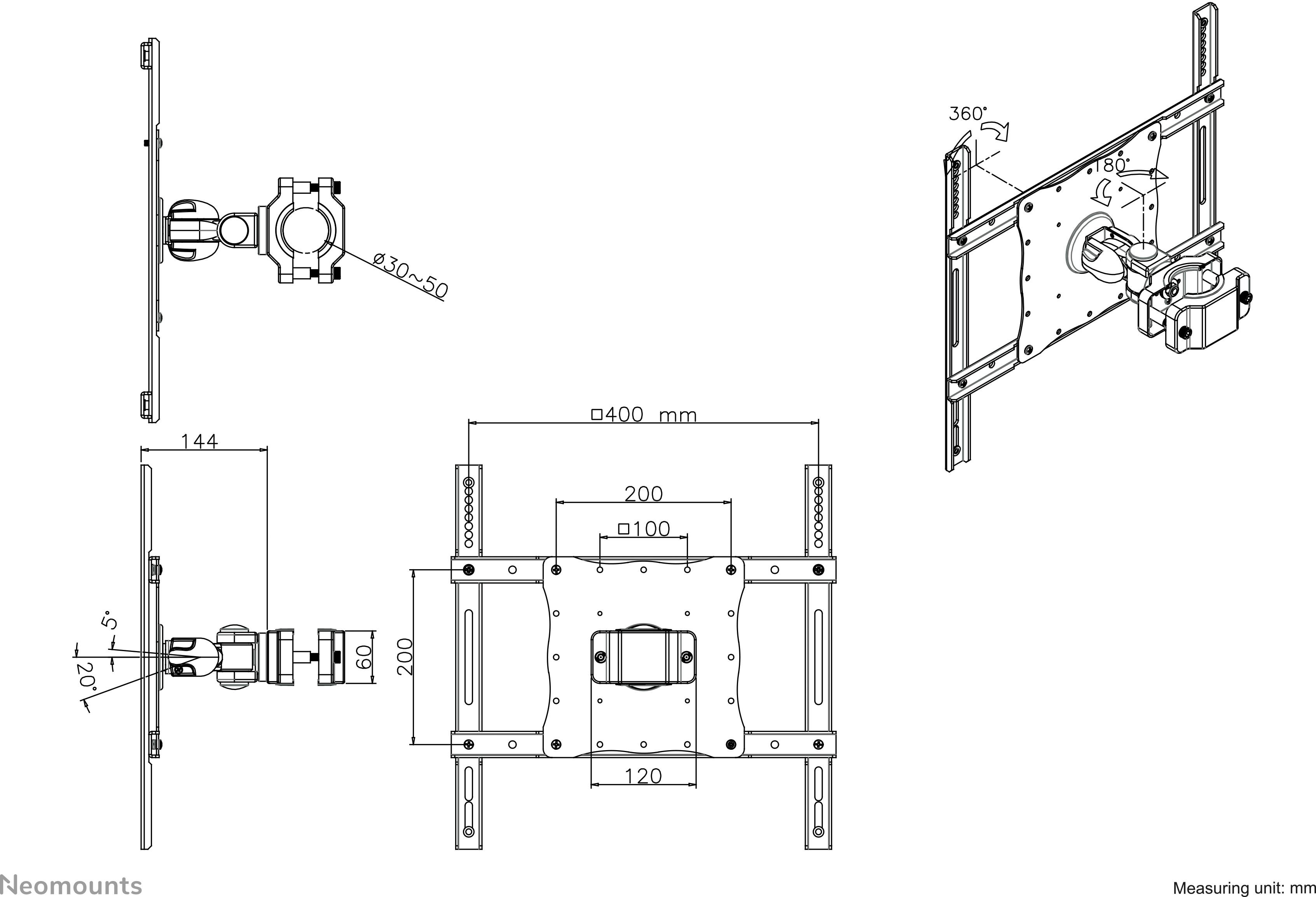

Technical specifications
- Product type
Monitor tube mount
- Suitable for
58,4 cm (23") - 132,1 cm (52")
- Add-on displays
1 Display(s)
- Holder type
Swivelling
Swivelling
Tiltable
No
- Max. load capacity
25 kg
No
75 x 75 mm
400 x 400 mm
- Rotation
360°
- Tilt range (bottom)
90°
- Tilt range (top)
90°
- Swivel range (left)
90°
- Swivel range (right)
90°
- Width
60 mm
- Depth
14 cm
- Factory colour
Black
- Dim
(W x D) 60 mm x 14 cm
- Suitable for
58,4 cm (23")
59,9 cm (23,6")
60,5 cm (23,8")
61 cm (24")
61 cm (24")
61,2 cm (24,1")
62,2 cm (24,5")
63,5 cm (25")
66 cm (26")
66,0 cm (26")
Show more
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2309569 Neomounts FPMA-WP440BLACK Monitor tube mount 1 Display(s) 58,4 cm (23") - 132,1 cm (52") Black Swivelling, Swivelling, T
User & Safety Instructions
User & Safety Instructions 2309569 Neomounts FPMA-WP440BLACK Monitor tube mount 1 Display(s) 58,4 cm (23") - 132,1 cm (52") Black Swivelling, Swivelling, T
Information
Information 2309569 Neomounts FPMA-WP440BLACK Monitor tube mount 1 Display(s) 58,4 cm (23") - 132,1 cm (52") Black Swivelling, Swivelling, T
Warranty Terms
Warranty Terms 2309569 Neomounts FPMA-WP440BLACK Monitor tube mount 1 Display(s) 58,4 cm (23") - 132,1 cm (52") Black Swivelling, Swivelling, T
Description

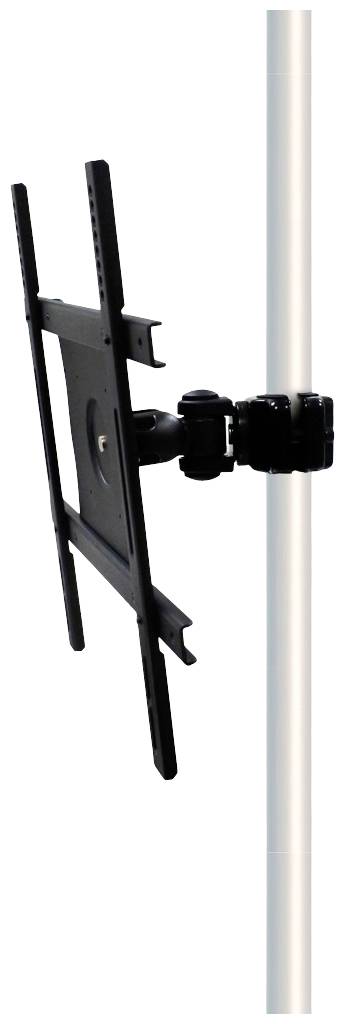

The Neowmounts by NewStar tube assembly, the FPMA-WP440BLACK model, is a tilt, swivel and swivel mast mount for flat screens up to 52" (132 cm). You can mount the montior on any rod with a diameter between 30 and 50mm. This bracket is a good choice if you want the ultimate flexibility when watching TV with your flat screen. You can easily pull the monitor out of the rod, you can position it in almost any direction. Neowmounts by Newstars tilt (180°), rotate (360°) and swivel (180°) technology allows the bracket to be changed on any viewing angle to take advantage of the full range of possibilities offered by the flat screen. The depth of this bracket is 14 centimeters. Concealed cable guide from the bracket to the flat screen. Create a clean design ambiance for your flat screen TV in the living room, bedroom or home theater. Neowmounts by NewStar FPMA-WP440BLACK has two pivot points and is suitable for screens up to 52" (132 cm). The load capacity of this product is inignet for up to 25 kg screens. The bracket is suitable for screens with VESA hole patterns 75x75 and 400x400mm. Various other hole patterns can also be used using Neowmounts by Newstars VESA adapter plates. All installation materials are included in the product delivery.
