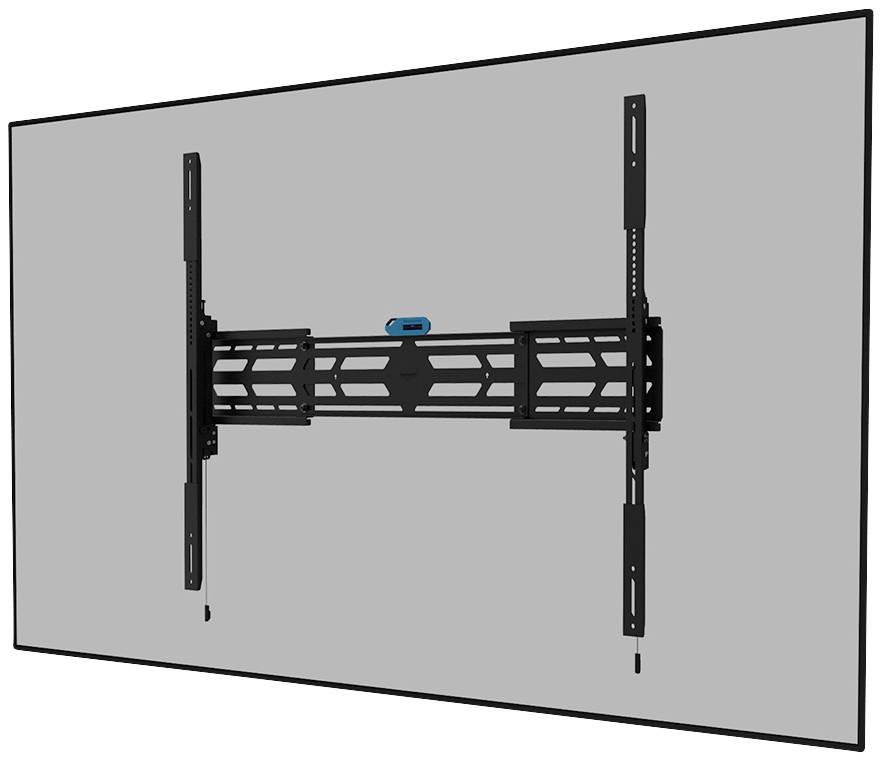

Flat-screen television wall mount with extendable arms attached to a wall; suitable for medium to large televisions.

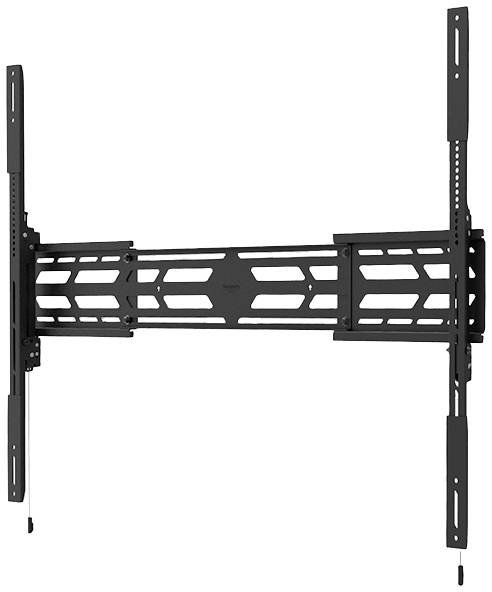

Black metal TV wall mount with multiple fixing points, suitable for large flat-screen televisions.

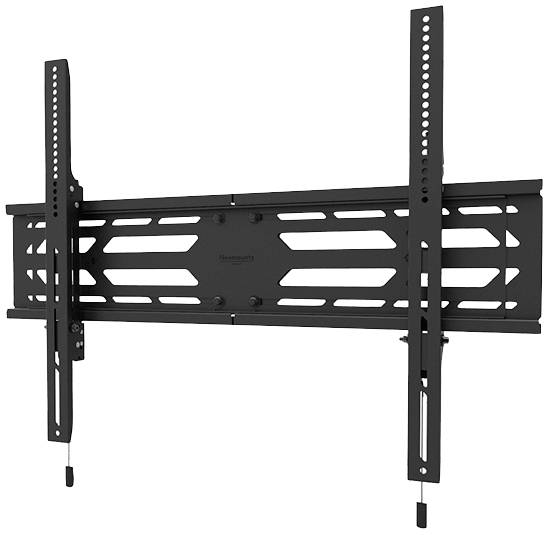

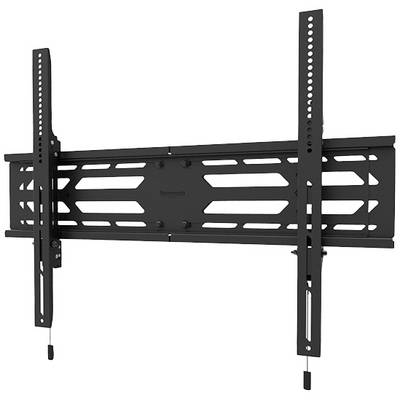

A black television wall mount that is fixed to a wall. It has multiple openings and adjustable rails.

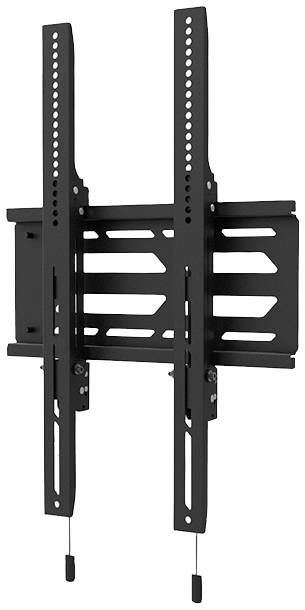

TV Wall Mount with Adjustable Arms, Suitable for Flat Screens. Black, Metal Construction, Robust and Flexible.

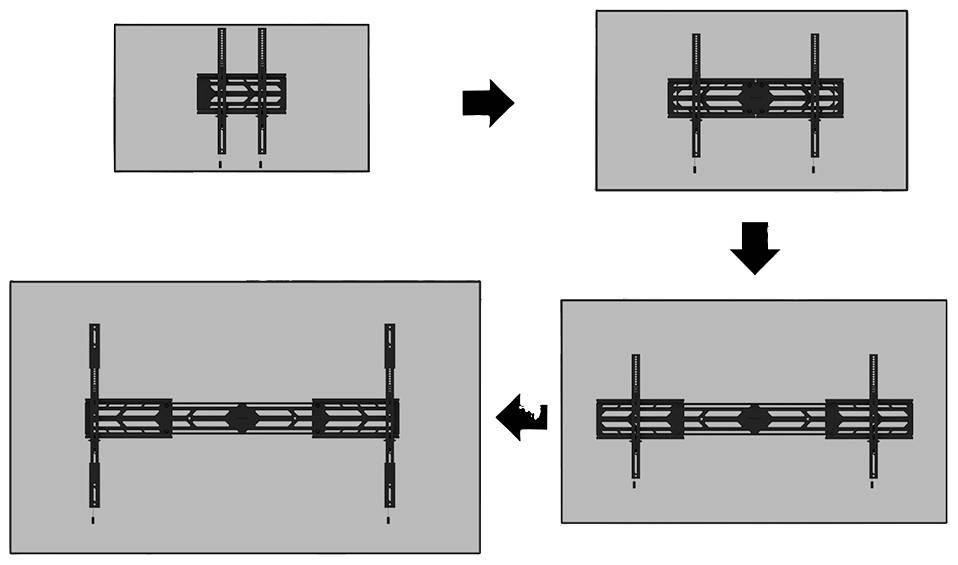

Illustrated Instructions for Mounting a Bracket. Shows steps for adjusting the position in four directions: top, right, bottom, left.

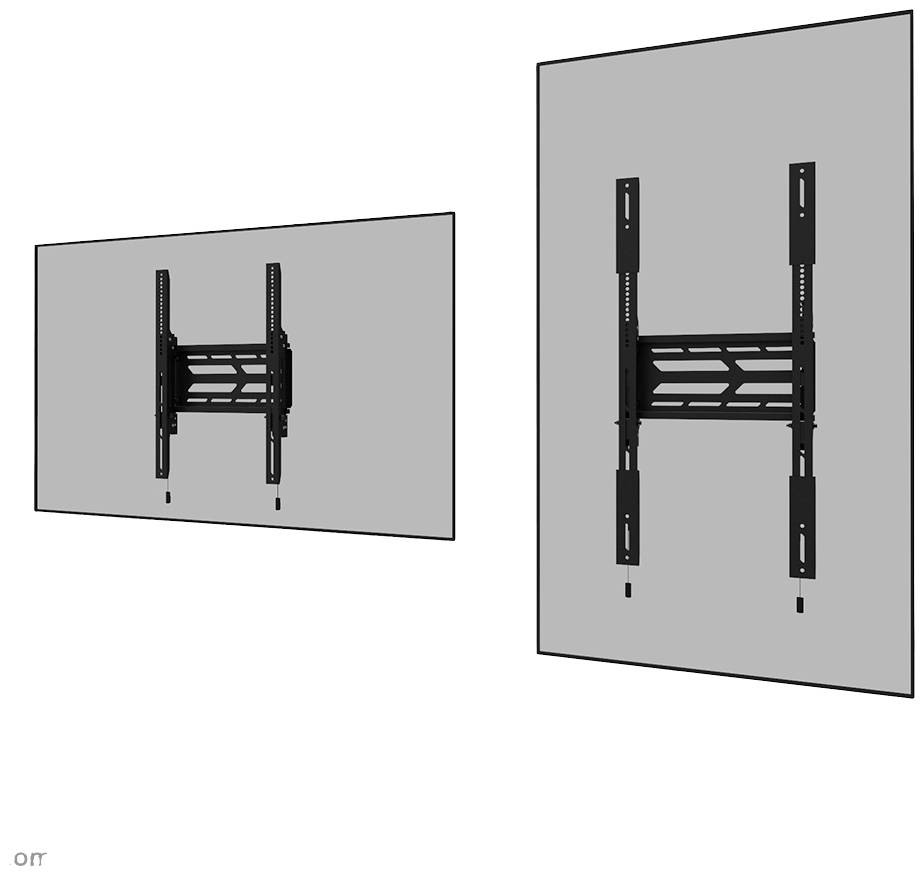

Illustration of a wall mount for flat-screen displays, showing mounting example from front and side view.

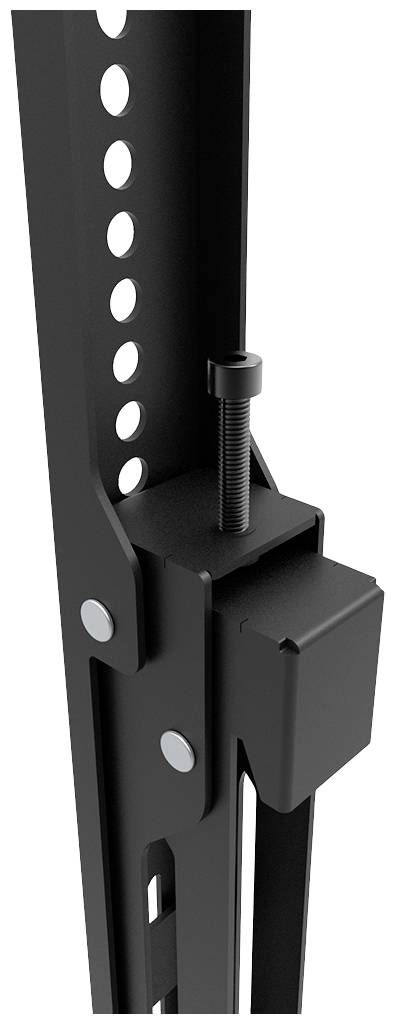

Black metal frame with adjustable bolt and holes for height adjustment, likely part of a shelving unit or stand.

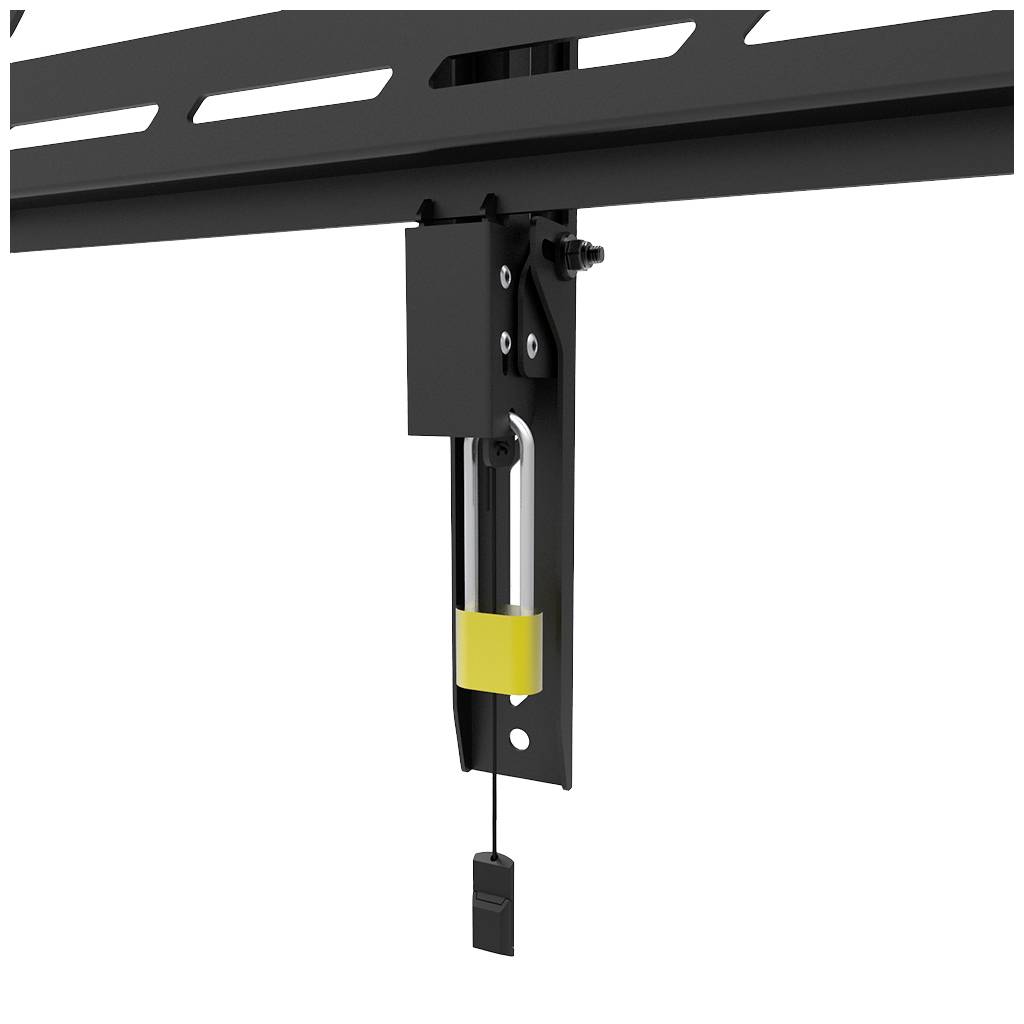

Close-up of a black metal component with a yellow marking and cable. It appears to be an adjustable rail system.

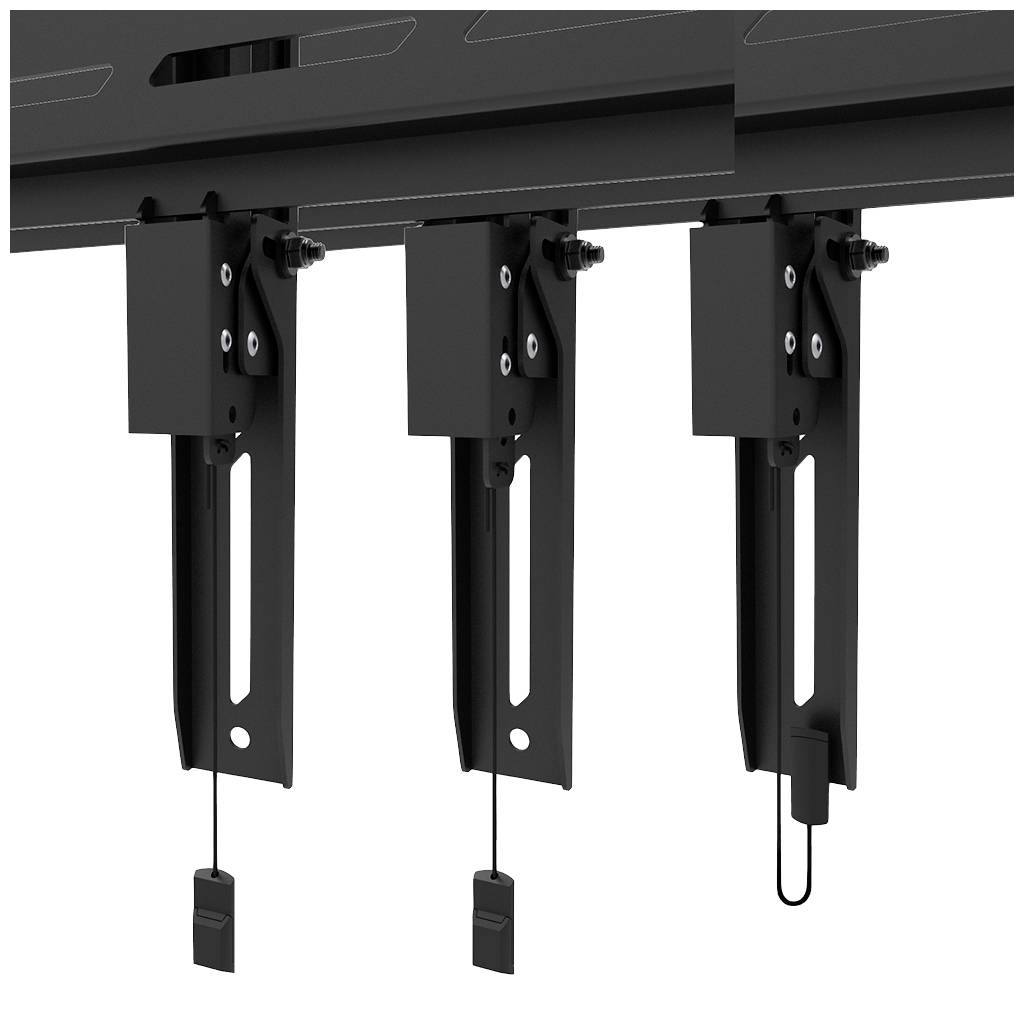

'Two black mounting brackets for wall mounting that can be moved along a rail. Suitable for televisions or monitors.'

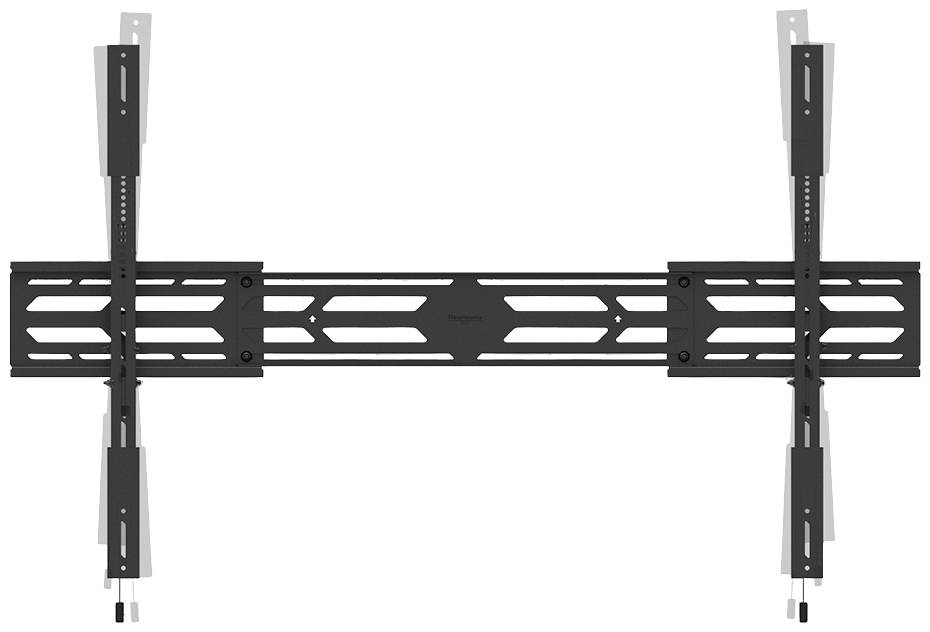

Wall mount for flat screen, black, with adjustable arms and mounting rails. Suitable for different screen sizes.

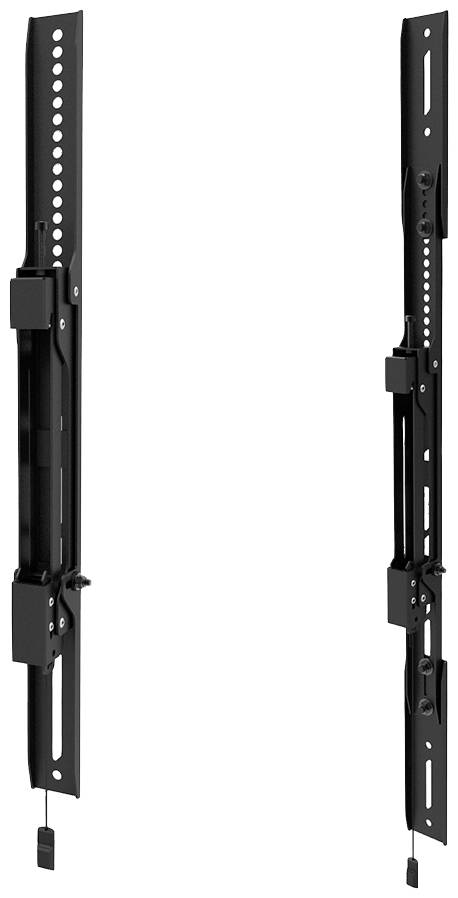

Two black, vertical metal TV wall mounts with holes for screws and small levers for adjustment.

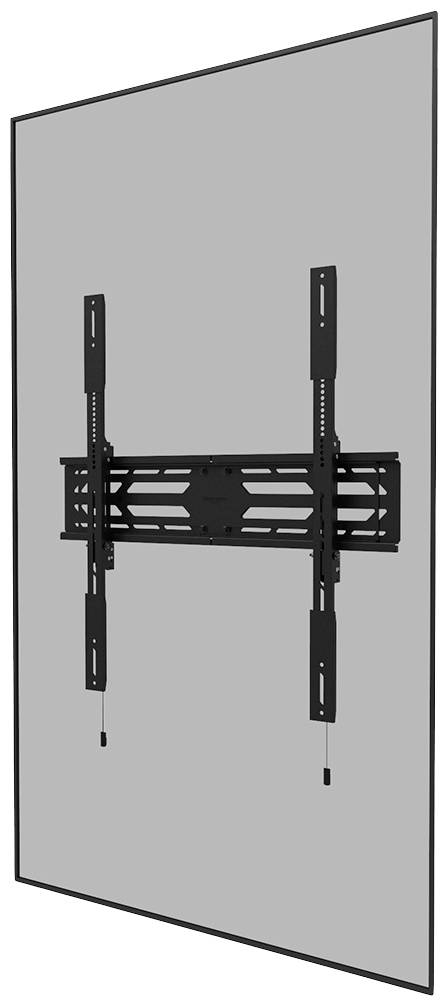

Wall mount for a television with adjustable arms, fixed to a wall, shown in a technical drawing.

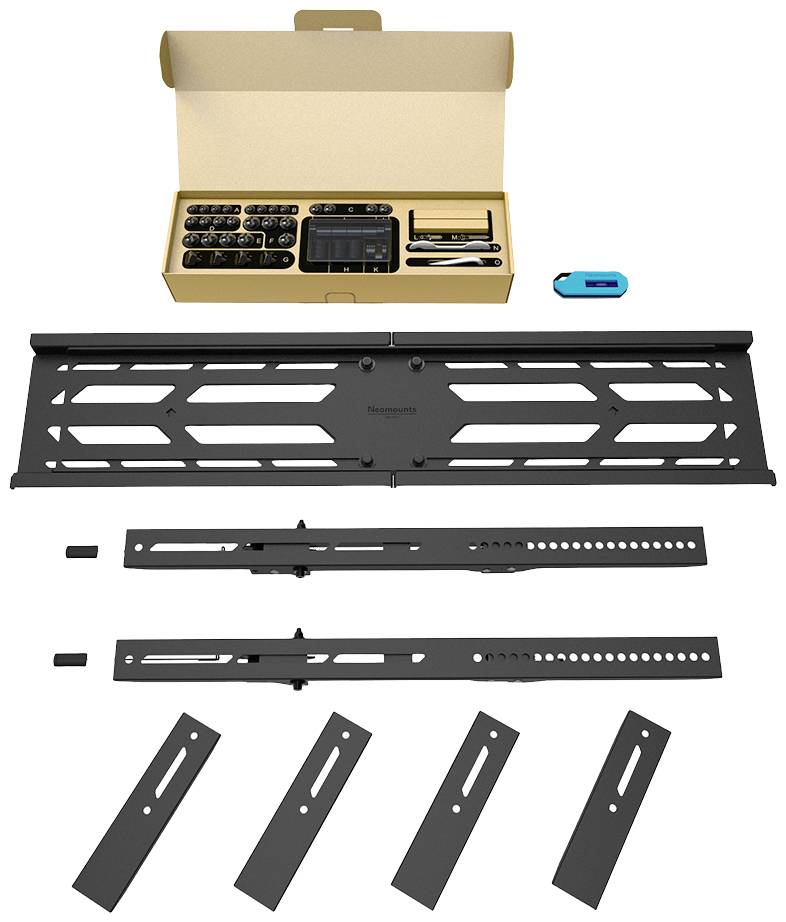

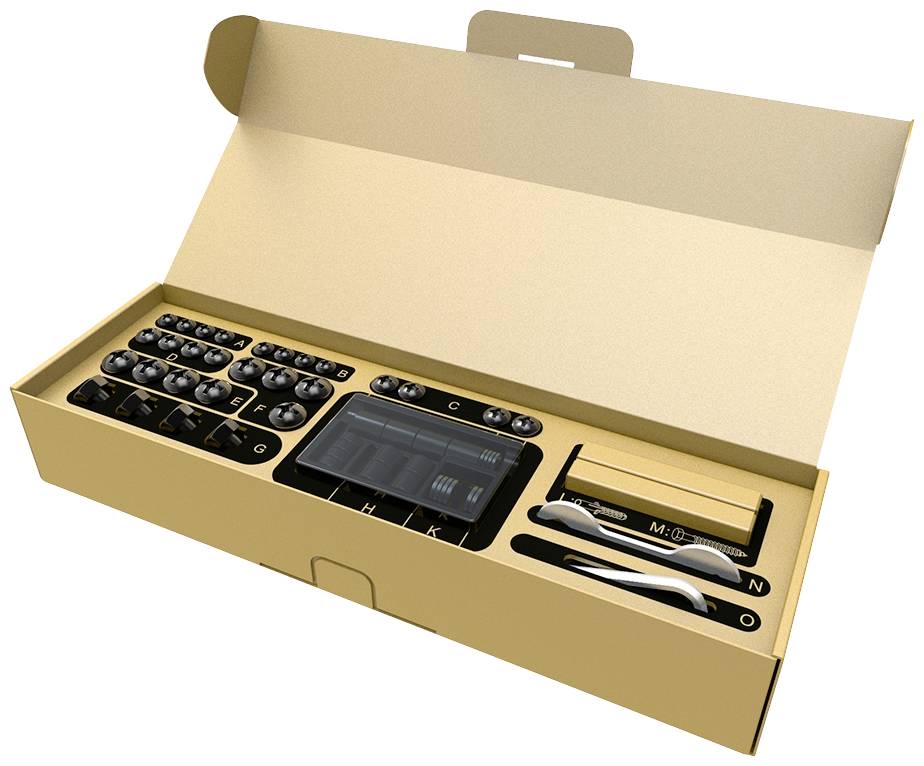

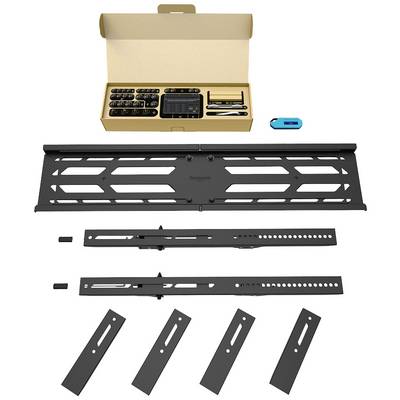

Video wall mounting kit with packaging and components. Includes mounting brackets, screws and tools, ready for installation.

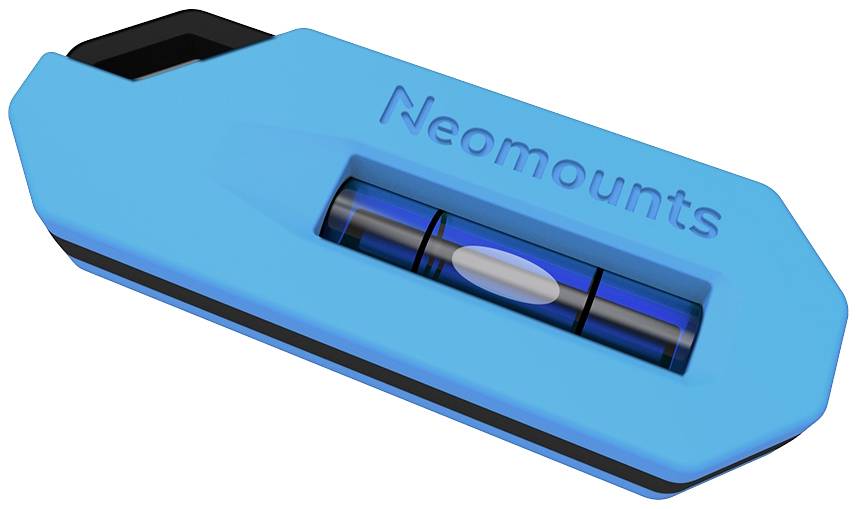

Blue inclinometer in a rectangular housing with distinctive 'Neomounts' lettering. Ideal for precise spirit level alignment.

An open cardboard set with headphones and accessories. Contains various earbuds, cables, and a charger, neatly arranged.

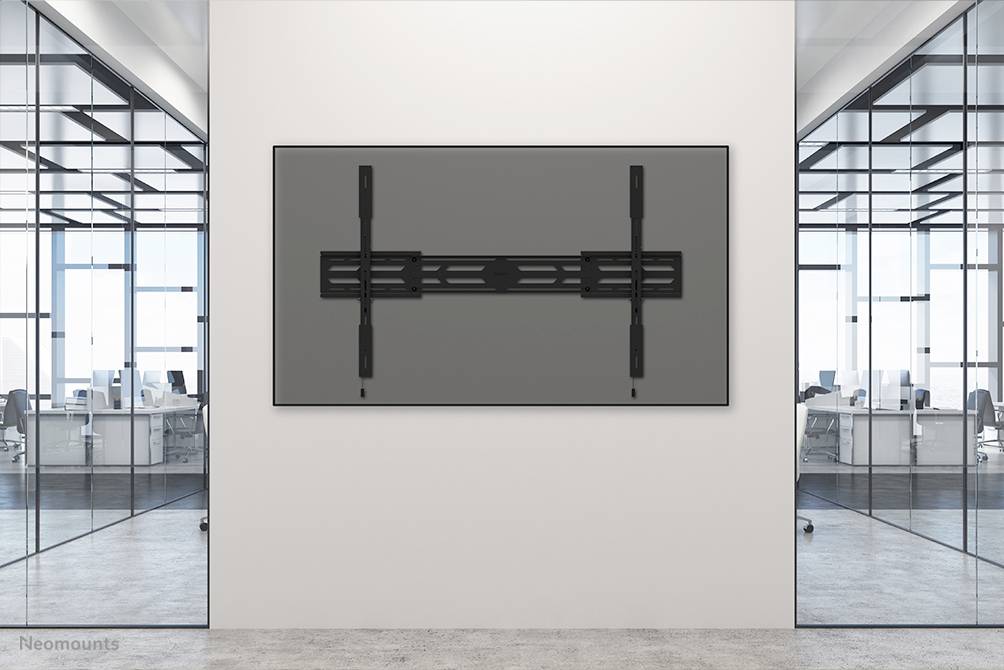

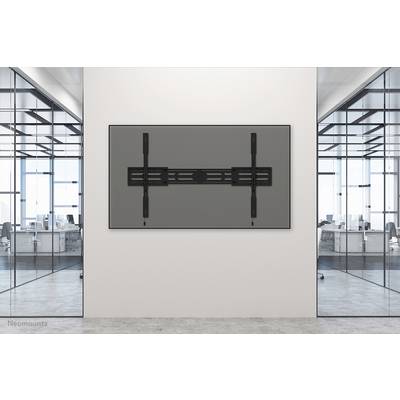

A modern office with glass partitions and tidy workstations. A large black screen is mounted on the wall.

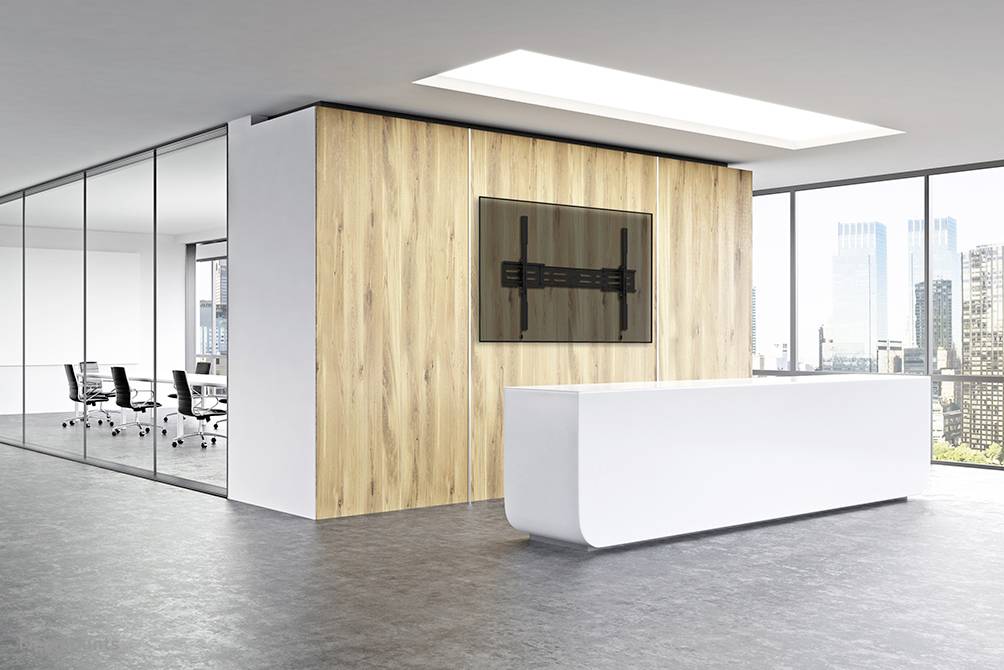

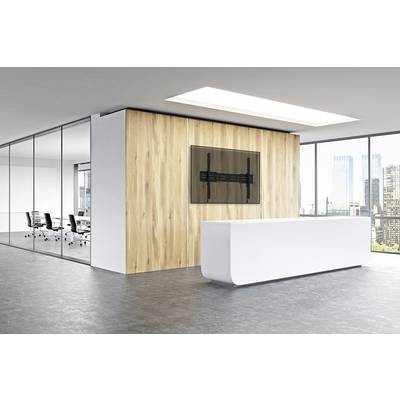

A modern, minimalist office space with a white reception desk, glass walls, and a wooden panel with a TV mount.

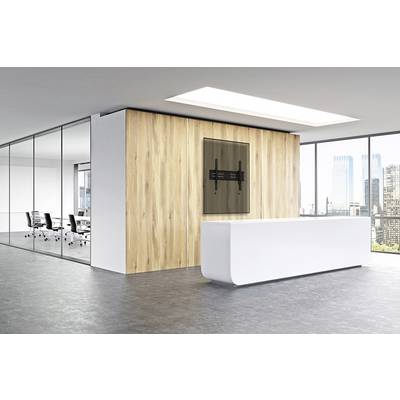

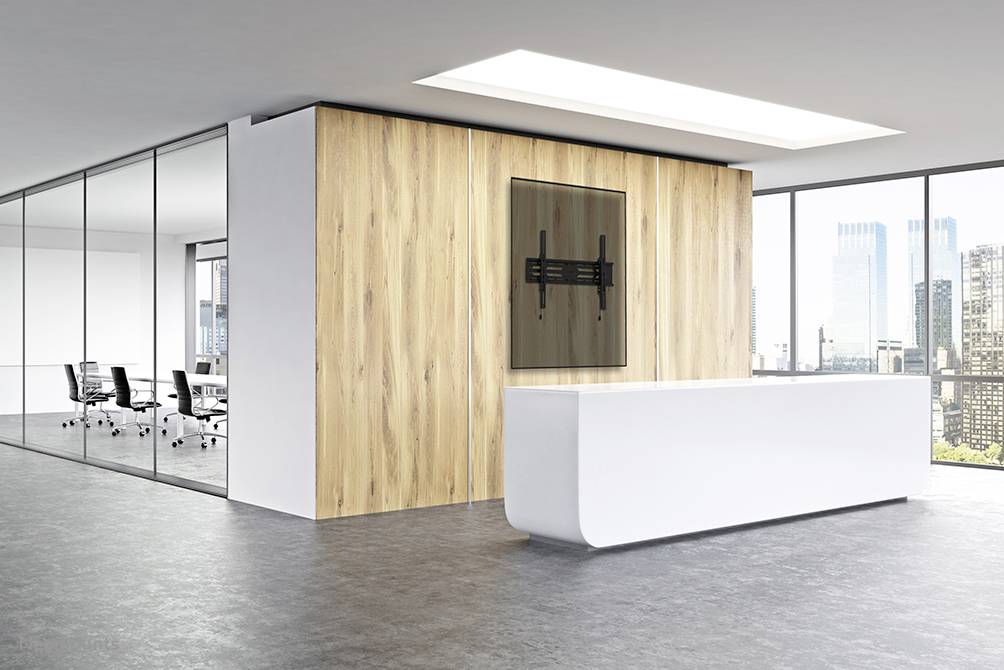

Modern lobby with a white reception desk, wooden accent wall and glass walls leading to a conference room. Large windows with city view.

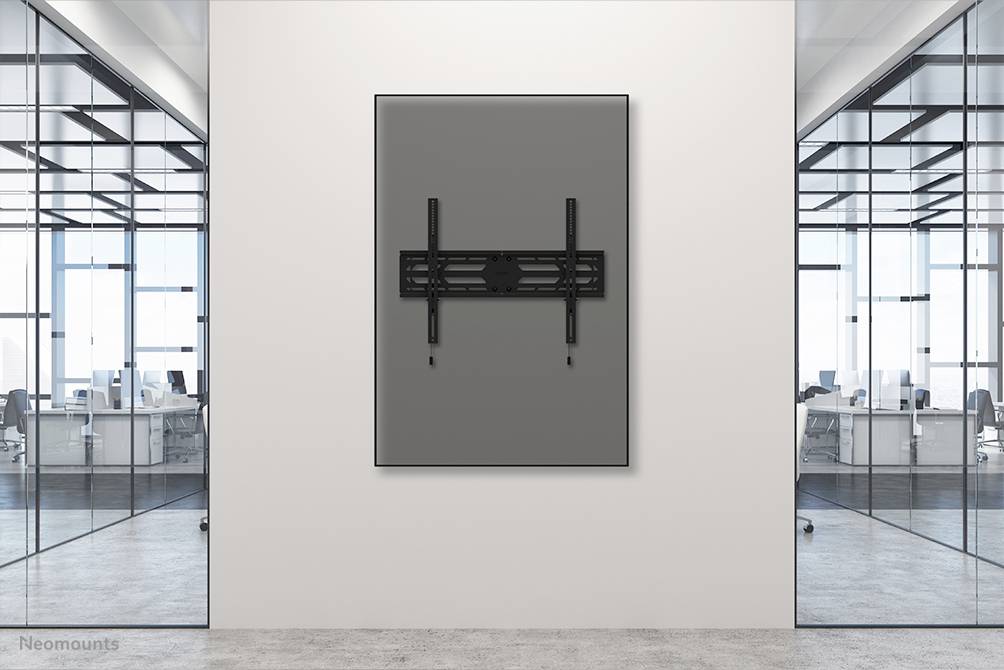

'Empty office space with modern glass door design, internal wall mounting without television or monitor. Bright, minimalist interior.'

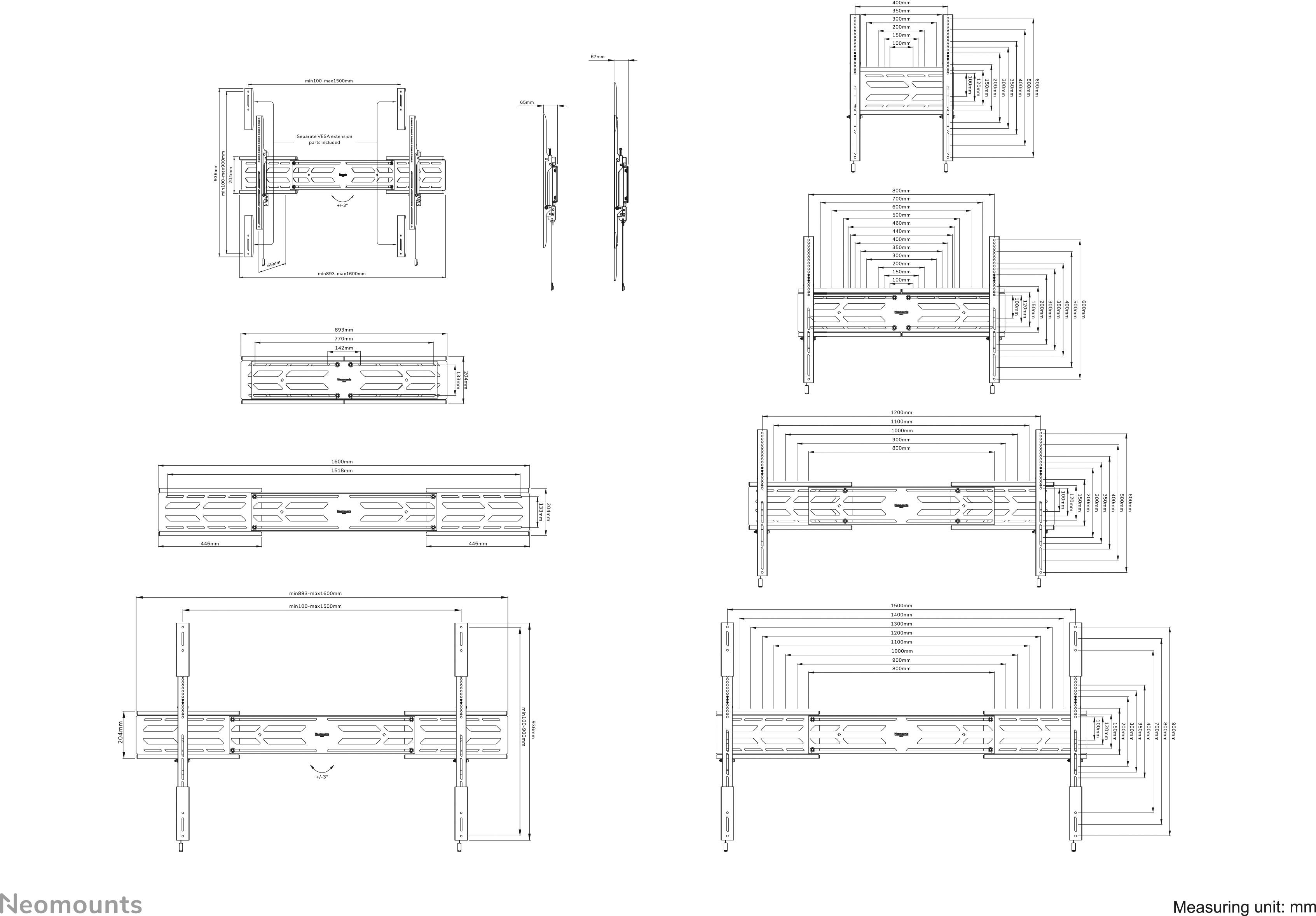

Technical drawing of a TV bracket with multiple perspectives and measurements. Shows the details and dimensions of the mounting elements.

1/20

Datasheet (PDF)

Fast track dispatch on Wed, 16 Sep

1 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 176.46 / piece)

€ 176.46

plus VAT.

Only 1 Piece(s) available

Report legal concerns

Neomounts Select heavy-duty TV wall bracket

Highlights & Details

Holder type: RigidSupports VESA standards up toSuitable for displays sized (range): 139,7 cm (55") - 279,4 cm (110")Load capacity (max.) 160 kg

Technical specifications

Product type: Monitor wall mount

Suitable for: 139,7 cm (55") - 279,4 cm (110")

Add-on displays: 1 Display(s)

Holder type: Rigid

: No

Max. load capacity: 160 kg

: No

: 100 x 100 mm
100 x 200 mm
150 x 75 mm
150 x 100 mm
200 x 100 mm
200 x 200 mm
200 x 300 mm
200 x 400 mm
300 x 100 mm
300 x 200 mm
300 x 300 mm
300 x 400 mm
400 x 100 mm
400 x 200 mm
400 x 300 mm
400 x 400 mm
400 x 600 mm
400 x 800 mm
440 x 400 mm
500 x 350 mm
500 x 400 mm
600 x 200 mm
600 x 300 mm
600 x 400 mm
600 x 500 mm
600 x 600 mm
600 x 800 mm
700 x 400 mm
700 x 450 mm
800 x 200 mm
800 x 400 mm
800 x 450 mm
800 x 500 mm
800 x 600 mm
800 x 800 mm
800 x 900 mm
900 x 600 mm
1000 x 600 mm
1200 x 600 mm
1200 x 800 mm
1500 x 900 mm
Show more

Rotation: 3°

Distance to wall (max.): 6.7 cm

Width: 22.2 cm

Height: 91.8 cm

Depth: 9.8 cm

Factory colour: Black

Material (details): Steel

Weight: 11.7 kg

Dim: (W x H x D) 22.2 x 91.8 x 9.8 cm

Suitable for: 139,7 cm (55")
142,2 cm (56")
144,8 cm (57")
147,3 cm (58")
149,9 cm (59")
152,4 cm (60")
154,9 cm (61")
157,5 cm (62")
160,0 cm (63")
162,6 cm (64")
165,1 cm (65")
167,6 cm (66")
170,2 cm (67")
172,7 cm (68")
175,3 cm (69")
177,8 cm (70")
180,3 cm (71")
182,9 cm (72")
185,4 cm (73")
188,0 cm (74")
190,5 cm (75")
193,0 cm (76")
195,6 cm (77")
198,1 cm (78")
200,7 cm (79")
203,2 cm (80")
208,3 cm (82")
213,4 cm (84")
215,9 cm (85")
228,6 cm (90")
254,0 cm (100")
261,6 cm (103")
267,0 cm (105")
279,4 cm (110")
Show more

Product type description: Zubehör TFT/LCD-TV

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 2813992 Neomounts WL30S-950BL19 Monitor wall mount 1 Display(s) 139,7 cm (55") - 279,4 cm (110") Black Rigid

User & Safety Instructions

User & Safety Instructions 2813992 Neomounts WL30S-950BL19 Monitor wall mount 1 Display(s) 139,7 cm (55") - 279,4 cm (110") Black Rigid

Warranty Terms

Warranty Terms 2813992 Neomounts WL30S-950BL19 Monitor wall mount 1 Display(s) 139,7 cm (55") - 279,4 cm (110") Black Rigid

Description

The Neomounts Select WL30S-950BL19 is a fixed, high capacity wall bracket for flat screens up to 110" with a maximum load capacity of 160 kg. It is possible to install the display in portrait and landscape format. It has individually height-adjustable brackets as well as leveling for the perfect installation. The WL30S-950BL19 has a depth of 6.5 cm and is suitable for screens meeting VESA hole pattern 100x100 to 1500x900 mm thanks to the included vertical extension brackets. The unique pull-out design allows the bracket to be adapted to a wide range of screen sizes from 55" to 110". It is possible to secure the bracket with a padlock (not included). The holder has a sophisticated magnetic pull & release system, with which you can install the TV in a safe and stable way in no time at all. Then the pull & release tapes can be hidden simply behind the screen by clicking the magnet on the holder. The delivery of the wall holder includes a separate spirit level, in order to ensure a simple installation of the holder.

This text is machine translated.
