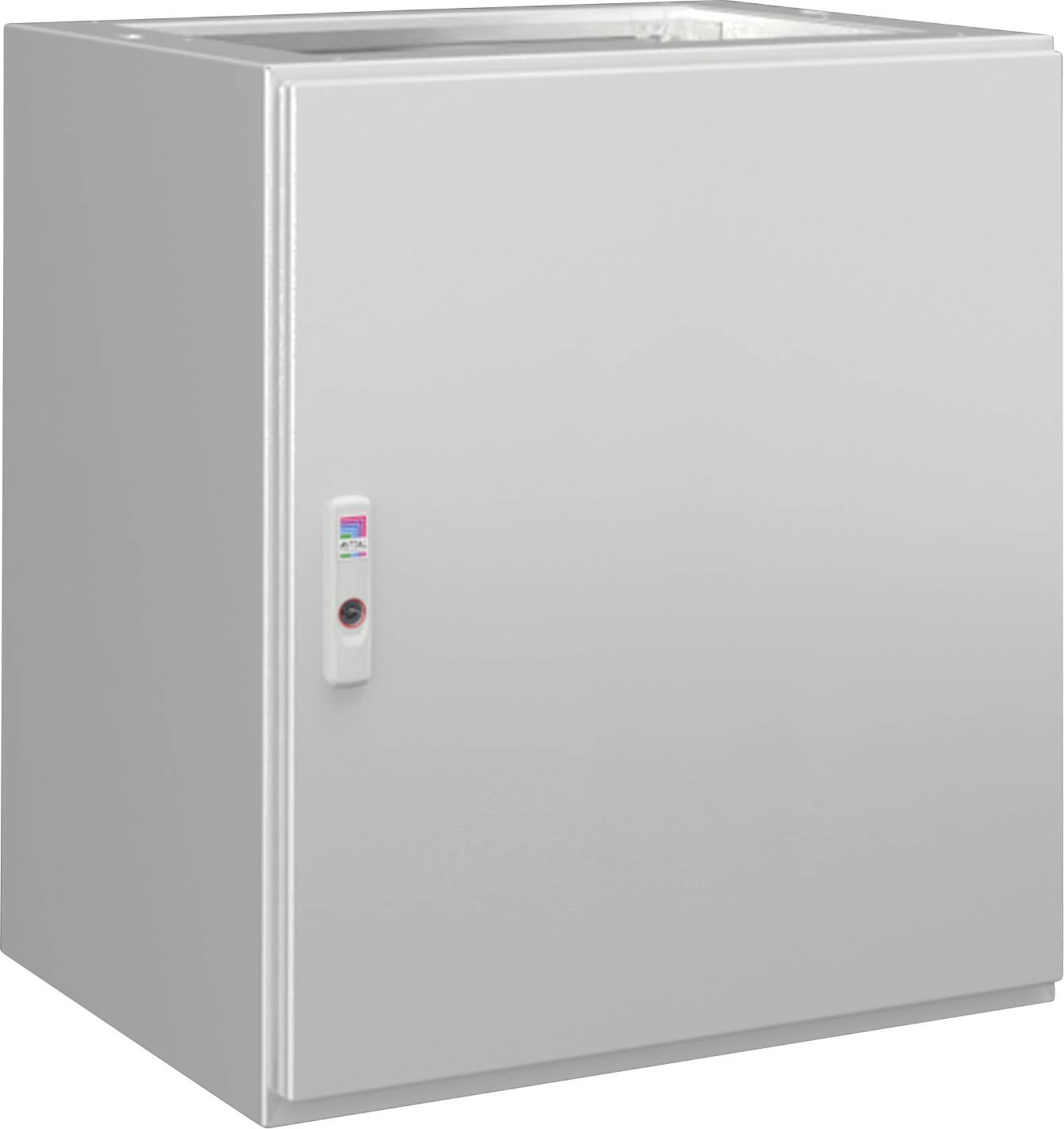

Rittal CX 6704.000 Desk casing (bottom ) (W x H x D) 600 x 675 x 500 mm Steel plate Grey (RAL 7035) 1 pc(s)
EAN:
Part number:
Item no:
Product type
Desk casing (bottom )
Material
Steel plate
IP rating
IP55
Width
600 mm
Height
675 mm
Number
Total (€ 494.96 / piece)
€ 494.96
plus VAT.
14-day return policy included
Technical specifications
- Material: Housing: Steel sheet 1.5 mm
- Door: Steel sheet, 2.0 mm, circulating foamed PU-sealing
- Mounting plate: Steel sheet, 2.5 mm
- Net weight: 34 kg
- Gross weight: 35.75 kg
- Surface: Housing and door: Dip-primed, externally powder coated, textured finish
- Galvanised mounting plate
- Dimensions: Width 600 mm
- Height: 675 mm
- Depth: 500 mm
- Colour RAL 7035
- Mounting plate dimensions (W x H) 520 x 625 mm
- IK code: IK10
- Number of doors: 1
- Base material: Steel sheet
- Design: Lower part
- Door opening angle 130°
- Shutter: Design shutter: 3-point-closure system
- Number of closures: 1
- Locking insert: 3 mm double bit
- Number of closures: 1
- Design closure: 3-point-locking system
- Locking insert: 3 mm double bit
- Protection class IP according to IEC 60 529:IP 55
- Product type
Desk casing (bottom )
- Features
Double sided ward
- Material
Steel plate
IP55
- Factory colour
Grey (RAL 7035)
- Type
1 door
- Front panel size
(W x H) 520 mm x 625 mm
- Width
600 mm
- Height
675 mm
- Content
1 pc(s)
- Dim
(W x H x D) 600 x 675 x 500 mm
- Weight
34 kg
- Depth
500 mm
- Type
CX 6704.000
Grey
600 mm
675 mm
500 mm
7035
1
Steel
IP55
Powder coating
Base unit
12
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3386753 Rittal CX 6704.000 Desk casing (bottom ) (W x H x D) 600 x 675 x 500 mm Steel plate Grey (RAL 7035) 1 pc(s)
Description
CX desk system, desk lower section, BHT:600x675x500 mm, sheet steel
CX desk bases, four widths and two different depths as the basis for each console solution. The AX lock plate guarantees a uniform appearance; the two-part base plates are included in the delivery for a simple cable routing.
This text is machine translated.
CX desk bases, four widths and two different depths as the basis for each console solution. The AX lock plate guarantees a uniform appearance; the two-part base plates are included in the delivery for a simple cable routing.
This text is machine translated.
