Buy Sauter TD 225-0.1US Thickness gauge 1.2 - 22.5 cm

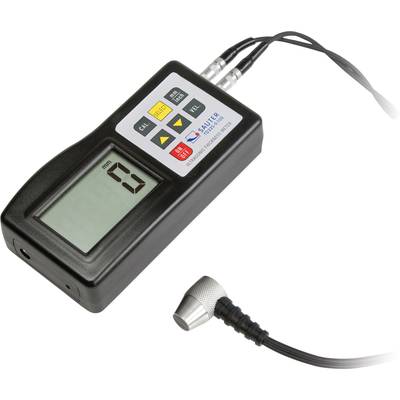

Handheld Ultrasonic Thickness Gauge with LCD Display, Calibration Buttons, Start Button and Connected Sensor for Material Measurement.

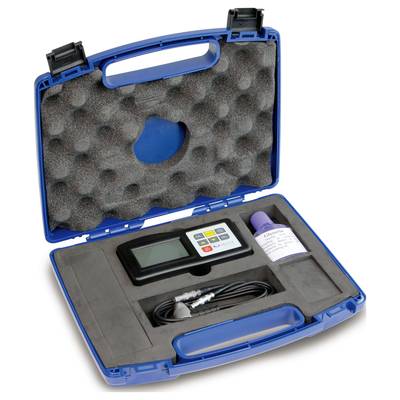

An open blue suitcase with foam cut-outs contains a digital measuring device, cables, and a bottle of liquid.

1/2

Datasheet (PDF)

Fast track dispatch on Wed, 16 Sep

7 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 494.96 / piece)

€ 494.96

plus VAT.

Only 7 Piece(s) available

Report legal concerns

Highlights & Details

Ultrasonic Thickness meter TD 225-0.1 US

Data Interface RS-232 including
Zero plate for adjustment including

Technical specifications

Sound speed: 500-9000 m/sec
Readability [D]: 0.1 mm.

Operating voltage: 4 x AAA battery (AAA)

Dim: (L x W x H) 120 x 30 x 65 mm

Weight: 200 g

Content: 1 pc(s)

Height: 65 mm

Length: 120 mm

Width: 30 mm

Reading range: 1.2 - 22.5 cm

: Manufacturer's standards (no certificate)

Display: LCD

Measuring type: Ultrasound

Measuring type: Aluminium
Grey iron
Cast iron
Copper
Brass
Polyethylene
PVC
Fused quartz
Steel
Zinc

Accuracy: 0.01 mm

Reading range (max.): 22.5 cm

Reading range (min.): 1.2 mm

UKCA: yes

Product type: Thickness gauge

Documents & Downloads

Datasheet

Datasheet 1676543 Sauter TD 225-0.1US Thickness gauge 1.2 - 22.5 cm

User & Safety Instructions

User & Safety Instructions 1676543 Sauter TD 225-0.1US Thickness gauge 1.2 - 22.5 cm

Information

Information 1676543 Sauter TD 225-0.1US Thickness gauge 1.2 - 22.5 cm

Description

By an external measuring head of this compact material thickness measuring device can also be difficult to reach measurement points.

This text is machine translated.

Features

Supplied in a robust carrying case
Selectable units: mm, inch

Scope of delivery

Carrying case
Measuring head
Contact Gel
Batteries
