Siemens Magnetic switch Magnetic 3SE6617-2CA04 3SE66172CA04 (L x W x H) 13 x 88 x 25 mm
EAN:
Part number:
Item no:
Product type
Magnetic switch
Max. operating voltage
75 V
Contact type
2 breakers
Model
Magnetic
Connector
Cable
Datasheet (PDF)
Number
Total (€ 113.44 / piece)
€ 113.44
plus VAT.
Highlights & Details
MCCB_IEC_FS160_32A_4P_36KA_TM_ FTFM
Our service for you
Technical specifications
- Mounting type: screw fastening
- Execution of the switching function: opener
- Operating power: 10 W
- Operating current: 400 mA
- Product type
Magnetic switch
- Type
3SE6617-2CA04
- Max. operating voltage
75 V
- Operating voltage
75 V (max)
- Contact type
2 breakers
- Enclosure material
Plastic
- Model
Magnetic
- Connector
Cable
- Cable length
3.00 m
- Min. temperature
-25 °C
- Max. temperature
+70 °C
IP67
- Length
13 mm
- Width
88 mm
- Height
25 mm
- Dim

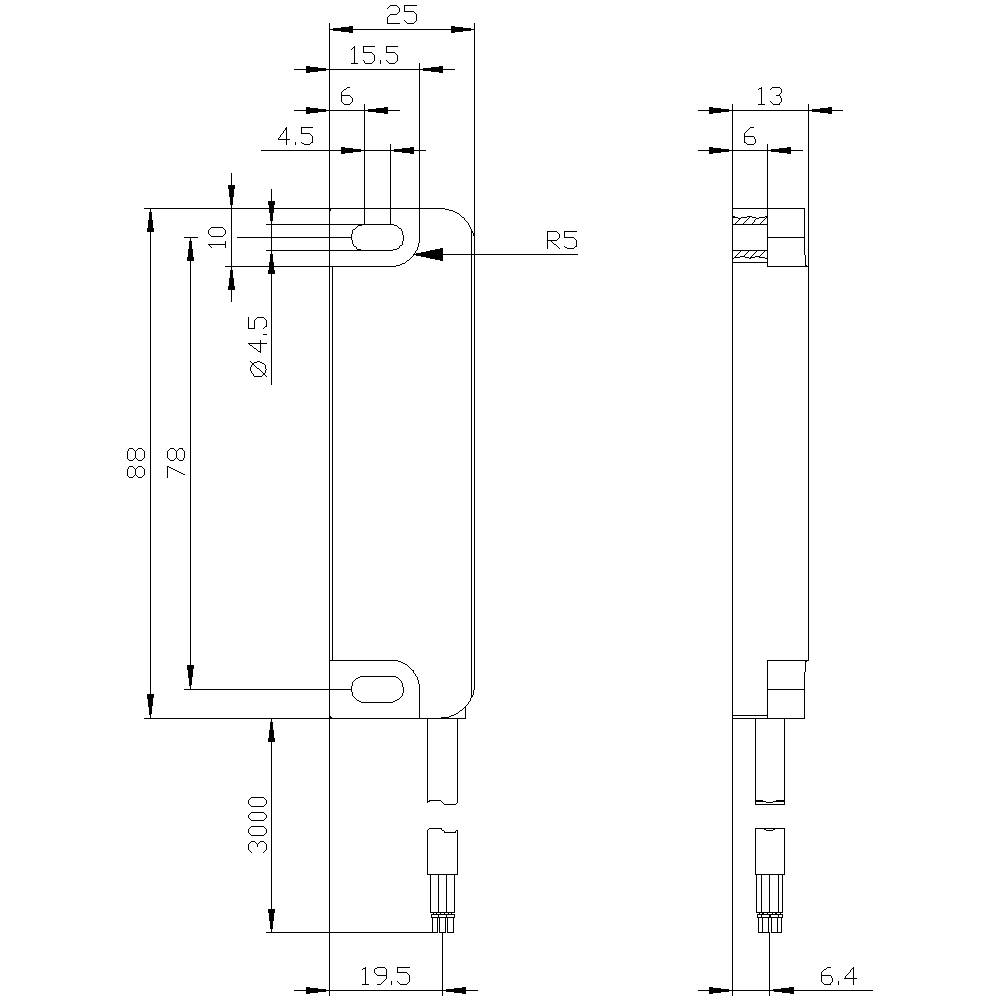

(L x W x H) 13 x 88 x 25 mm
- Content
1 pc(s)
- Switching frequency
5 Hz
DC
Plastic
TRUE
0
1
0
0
Cable
None
None
17 mm
7 mm
Quasi-flat
FALSE
TRUE
IP67
Magnet
88 mm
25 mm
13 mm
Level e
3
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 1701565 Siemens Magnetic switch Magnetic 3SE6617-2CA04 3SE66172CA04 (L x W x H) 13 x 88 x 25 mm
User & Safety Instructions
User & Safety Instructions 1701565 Siemens Magnetic switch Magnetic 3SE6617-2CA04 3SE66172CA04 (L x W x H) 13 x 88 x 25 mm
Description
circuit breaker 3VA1 IEC frame 160 breaking capacity class S Icu=36kA @ 415 V 4-pole, line protection TM210, ftfm, In=32a overload protection Ir=32A fixed short circuit protection iI=10 x In neutral protection 100% cable connection
