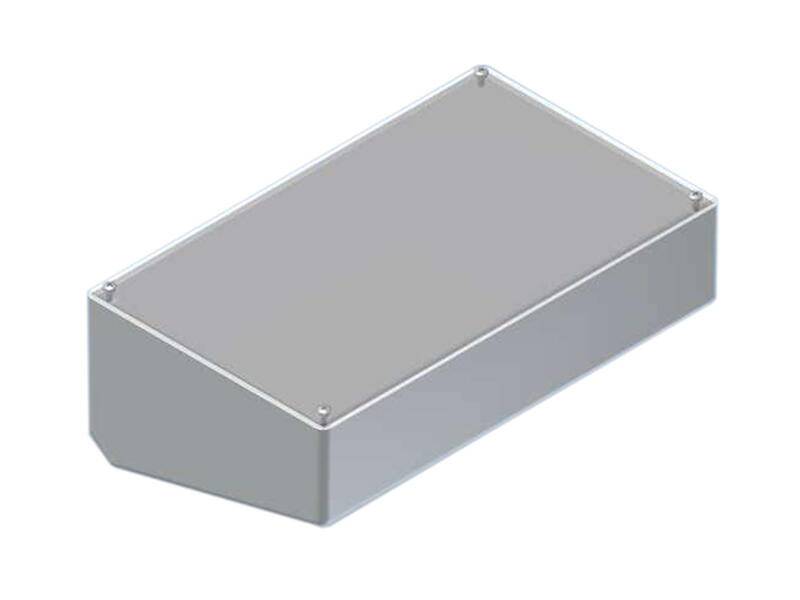

TEKO 215TP.5 Desk casing (L x W x H) 216 x 130 x 80.5 mm Acrylonitrile butadiene styrene, PC Light grey 1 pc(s)
EAN:
Part number:
Item no:
Material
Acrylonitrile butadiene styrene
PC
Width
130 mm
Height
80.5 mm
Content
1 pc(s)
Product type
Desk casing
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 27.72
3
4% = € 1.21
€ 26.51
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 27.72 / piece)
€ 27.72
plus VAT.
Only 8 Piece(s) available
Highlights & Details
ABS enclosure with transparent cover
Our service for you
Technical specifications
- Maximum PCB length 208 mm
- Maximum PCB width 118.5 mm
- Screws: 4
- Material
Acrylonitrile butadiene styrene
PC
- Factory colour
Light grey
- Length
216 mm
- Width
130 mm
- Height
80.5 mm
- Content
1 pc(s)
- Dim
(L x W x H) 216 x 130 x 80.5 mm
- RoHS-compliant
Yes
- Depth
216 mm
- Type
215TP.5
- Weight
330 g
- Product type
Desk casing
Documents & Downloads
Datasheet
Datasheet 2304237 TEKO 215TP.5 Desk casing (L x W x H) 216 x 130 x 80.5 mm Acrylonitrile butadiene styrene, PC Light grey 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2304237 TEKO 215TP.5 Desk casing (L x W x H) 216 x 130 x 80.5 mm Acrylonitrile butadiene styrene, PC Light grey 1 pc(s)
Description
Plastic housing with transparent polycarbonate lid tilted by 15°, which is supplied in addition to protecting a 0.5 mm thick anodized aluminum plate underneath. The walls of the base have integrated guides and mounting pillars for PCB. The corners are rounded. Glossy surface Mounting with 4 screws.
